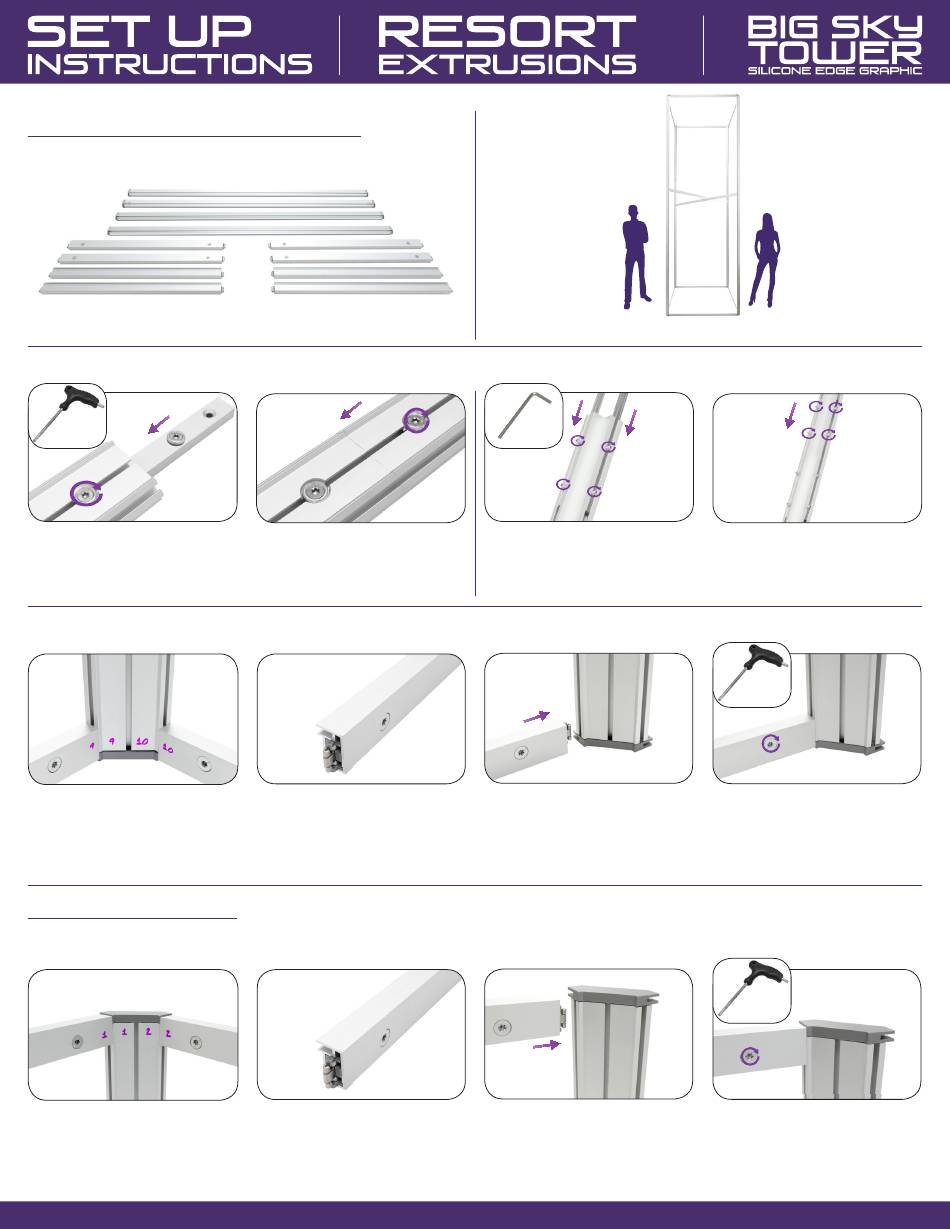

RESORT EXTRUSIONS Big Sky Tower Setup Instructions

Big Sky Tower - Build Side Frame

1. Lay Out Your Pieces:
a. We recommend to begin build on flat, soft surface on its side.
2. FOR FRAMES 8 FT or HIGHER or for CUSTOM CUT.
a. Split Connector: Slide into side of 60D extrusion channel that faces
the frame's middle. Then attach other extrusion onto the Split Connector.
Tighten screws with included torx key.
3. Locate the Bottom and Side Extrusions:
a. See colored numbers on each
extrusion piece.
b. Match like colored numbers
together. (e.g. 3 -3, 4 -4).

Next - Build the Top Half

1. Locate the Top and Side Extrusions:
a. See colored numbers on each
extrusion piece.
b. Match like colored numbers
together. (e.g. 3 -3, 4 -4).
Page 1 of 2
Attach Split Connectors to Side Extrusions:
c. End Lock is already attached to
opposite ends of extrusion.
c. End Lock is already attached to
opposite ends of extrusion.
Please Note: Instructions are generic and can be used for any size SEG Fabric Frame.
b. You'll need 2 people to assemble large frames.
b. Center Locking Bracket: Slide into side of 32D extrusion channel that
faces the frame's middle. Then attach other extrusion onto the Center
Locking Bracket. Tighten screws with included
d. Connect horizontal extrusion to
the bottom of a vertical extrusion,
screw facing inward.
d. Connect horizontal extrusion
to the top of a vertical extrusion,
screw facing inward.
2mm allen key.
e. Connect bottom extrusions to-
gether and use torx key to tighten.
e. Connect the top extrusions to-
gether and use torx key to tighten.
