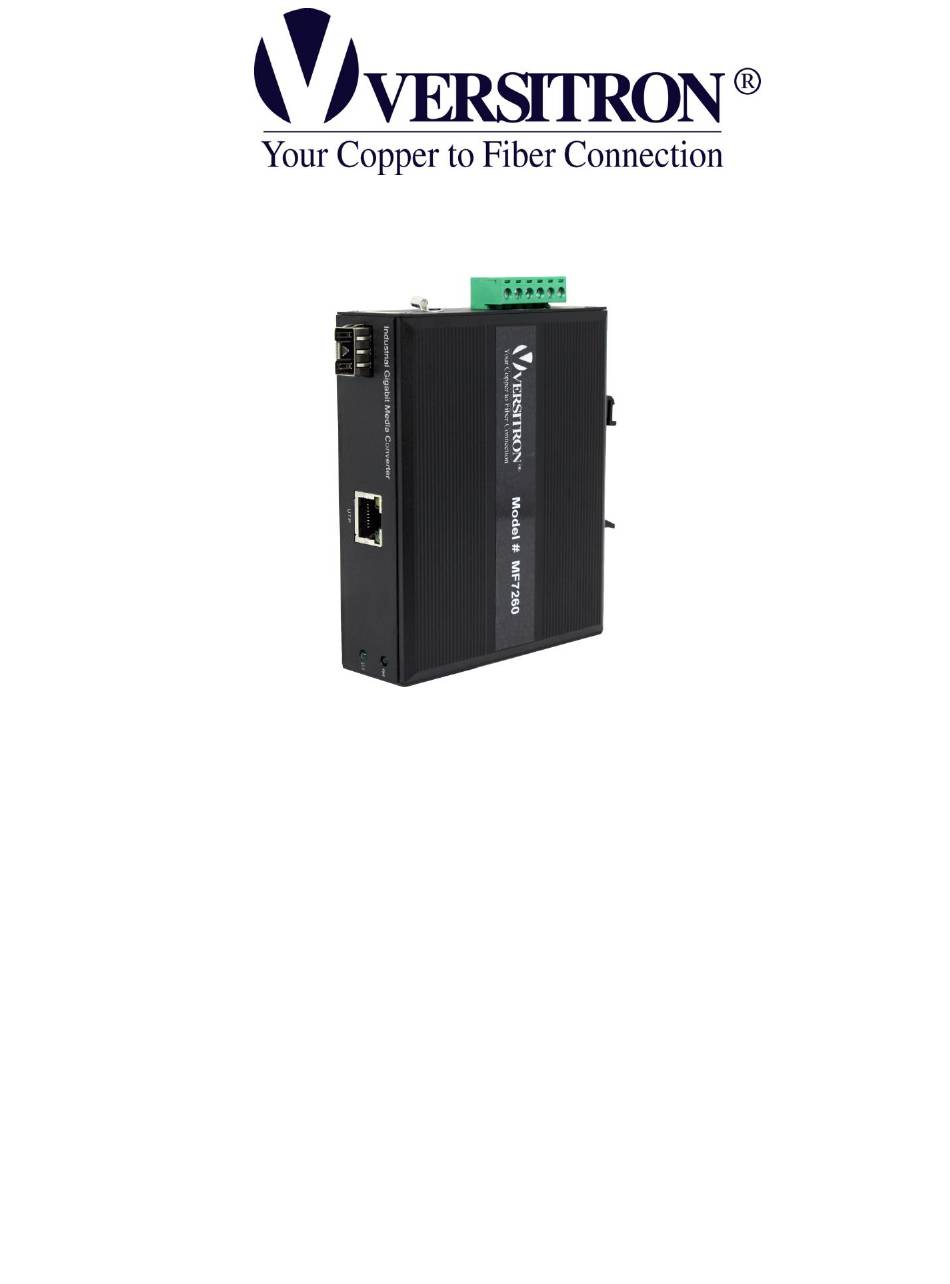

- Page 1 Industrial Media Converter ’ ’ © 2022 VERSITRON, Inc. 83 Albe Drive / Suite C Newark, DE 19702 www.versitron.com...
- Page 2 No other warranty is expressed or implied, and VERSITRON is not liable for direct, indirect, incidental or consequential damages or losses.
-
Page 3: Product Overview
DIN Rail Bracket 6-Pin Terminal Block If any of these are missing or damaged, please contact VERSITRON immediately; if possible, retain the carton including the original packing material, and use them again to repack the product in case there is a need to return it to us for repair. - Page 4 Inspecting the product Check the product carefully to see if any damage occurred during the transportation. Notify VERSITRON immediately if there are any discrepancies or damage. Storing If the product is stored before installation, it must be done with the original transport packaging in a dry and dust free environment.
- Page 5 Industrial Case and Installation IP44-rated aluminum case protection Standard DIN rail design Redundant dual power supply inputs 4KV Ethernet Surge Protection -40°C to 80°C operating temperature Product Specifications Hardware Specifications Copper Ports (RJ45) 1 x 10/100Base-TX or 10/100/1000Base-T Fiber Ports 1 x 100Base-FX SC/ST or 1000Base-X SFP Port Configuration...
- Page 6 Physical Dimensions Front Panel MF7273 (ST) MF7275-2SFA (SC) MF7260 (SFP) MF7260P (SFP) MF7274 (SC) MF7275-2SFB (SC) MF7275-2 (SC)
-
Page 7: Mounting And Installation
Mounting & Installation This section describes the hardware features and installation procedures of Industrial Media Converter. For easier management and operation of the product, familiarize yourself with its LED indicators and ports. Front panel illustration in this chapter display LED indicators. Please read this chapter carefully before connecting any network device to the Industrial Media Converter. - Page 8 Mounting Installation Insert the upper lip of the DIN rail into the DIN-rail mounting kit. Push the front of the Media Converter toward the mounting surface until it audibly snaps into place. Make sure that the Media Converter is attached securely to DIN rail. ...
- Page 9 Installation Steps Step 1: Unpack the Industrial Media Converter Step 2: Check the DIN-Rail that is pre-installed on the Industrial Media Converter. (Please refer to DIN-Rail Mounting section for DIN-Rail installation). Step 3: Connect the copper Ethernet port of the Industrial Media Converter to a PC or other Ethernet device with a network cable (straight through Category 5 or above cable).
