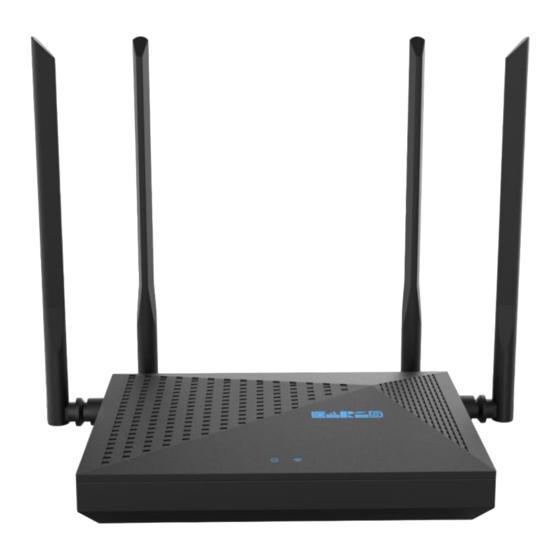

- Page 1 Shenzhen Ceres Wireless Router User Manual ShenZhen Ceres Technology WR Series Wireless Router WR135G-M3x User Manual Version：V1.0...
-
Page 2: Table Of Contents
Shenzhen Ceres Wireless Router User Manual Content 1 About This Guide..........................4 2 Note..............................4 2.1 Installation Precautions......................4 2.2 Precautions for Use....................... 5 3 Get to Know About Your Router.......................5 3.1 Product Overview........................5 3.2 Product Features........................5 3.3 Product Specifications......................6 3.4 The Back Panel........................6... - Page 3 Shenzhen Ceres Wireless Router User Manual 12.5 Virtual Server........................35 12.6 DMZ Configuration......................36 12.7 IPTV Service........................37 12.8 Set Up a DDNS Service Account..................39 12.9 Test the Network Connectivity..................40 12.10 Parental control.......................41 12.11 IPV6 Configuration......................42 13 TR069 Client Configuration......................44 14 WIFI Mesh Configure........................
-
Page 4: About This Guide
Shenzhen Ceres Wireless Router User Manual 1 About This Guide This guide is a complementation of Quick Installation Guide. The Quick Installation Guide instructs you on quick Internet setup, and this guide provides details of each function and shows you the way to configure these functions appropriate to your needs. -
Page 5: Precautions For Use
Shenzhen Ceres Wireless Router User Manual 2.2 Precautions for Use Please read the user manual carefully before using the equipment and follow all the precautions on the user manual and the product. Turn off the power when the device is not in use ... -
Page 6: Product Specifications
Shenzhen Ceres Wireless Router User Manual Product Specifications Working Temperature: -10℃ to 50 ℃ Storage Temperature: - 30 ℃ to 70 ℃ Work Humidity: 10% to 90%RH does not condense Storage Humidity: 5% to 90%RH does not condense ... -
Page 7: Top View
Shenzhen Ceres Wireless Router User Manual 3.5 Top View The router’s LEDs (view from left to right) are located on the front panel. You can check the router’s working status by following the LED Explanation table. name Status Indication... -
Page 8: Connect Your Router
Shenzhen Ceres Wireless Router User Manual 4 Connect Your Router 4.1 DSL/Cable/Satellite modem connected to router If your Internet connection is through an Ethernet cable from the wall instead of through a DSL / Cable / Satellite modem, connect the Ethernet cable directly to the router’s Internet port, then follow Step 4 and 5 to complete the hardware connection. - Page 9 Shenzhen Ceres Wireless Router User Manual Method 3: Use the WPS button Wireless devices that support WPS, including Android phones, tablets, most USB network cards, can be connected to your router through this method (WPS is not supported by iOS devices).
-
Page 10: Log Into Your Router
Shenzhen Ceres Wireless Router User Manual 5 Log into Your Router With the web-based utility, it is easy to configure and manage the router. The web- based utility can be used on any Windows, Macintosh or UNIX OS with a Web browser, such as Microsoft Internet Explorer, Mozilla Firefox or Apple Safari. -
Page 11: Set Up Internet Connection
Shenzhen Ceres Wireless Router User Manual 6 Set Up Internet Connection 6.1 Use Quick Setup Wizard There will be a quick setting wizard when the device that has just been shipped from the factory enters the web management. If you skip the wizard, you can go to the Wizard setting on the management page. - Page 12 Shenzhen Ceres Wireless Router User Manual 4.Follow the instructions on the page to continue the configuration. Parameters on the figures are just used for demonstration. 1) If you choose Dynamic IP, you need to select whether to clone the MAC address.
- Page 13 Shenzhen Ceres Wireless Router User Manual 2) If you choose Static IP, enter the information provided by your ISP in the corresponding fields. 3) If you choose PPPoE, enter the username and password provided by your ISP.
- Page 14 Shenzhen Ceres Wireless Router User Manual 5. Click Enable.To check your Internet connection, click Router status on the right of the page. 6.After the connection succeeds, the screen will display as follows. Here we take Dynamic IP as an example.
-
Page 15: View Router Status
Shenzhen Ceres Wireless Router User Manual 7 View Router Status 7.1 View Router System Status Entry router web main interface, then click Router ->System state ,then we can see router System time, firmware version and Running time：... -
Page 16: View Router Wireless Information
Shenzhen Ceres Wireless Router User Manual 7.2 View Router Wireless Information Input router web main interface, then click Wireless -> 2G WIFI name and password or 5G WIFI name and password, then we can view WIFI mode, Channel and Bandwidth and etc：... -
Page 17: Router Lan Port Configuration
Shenzhen Ceres Wireless Router User Manual 9 Router Lan Port Configuration In WIFI router web main interface select Router-> LAN Settings, then config parameter as follows: 【IP】Set local management IP address of WIFI router. The default IP address is 192.168.10.1 【mask】Set the mask of local management IP address of WIFI router... -
Page 18: Wireless Configuration
Shenzhen Ceres Wireless Router User Manual 10 Wireless Configuration 10.1 Wireless 2.4G configuration Login to WIFI router web main interface then click Wireless->2.4G WIFI name and password ,then config wireless as follows parameter: Click the button next to switch to control the on and off of WIFI. -
Page 19: Wireless 5G Configuration
Shenzhen Ceres Wireless Router User Manual 10.1 Wireless 5G configuration Login to WIFI router web main interface then click Wireless->5G WIFI name and password ,then config wireless as follows parameter: Click the button next to switch to control the on and off of WIFI. -
Page 20: Wireless Timing Closure
Shenzhen Ceres Wireless Router User Manual 10.2 Wireless timing closure Visit http://192.168.10.1 or http://cereslogin.com,Go to Wireless->Wireless timing closure WIFI is closed from 18:00-18:30 if needed. Set as follows... -
Page 21: Wireless Relay
Shenzhen Ceres Wireless Router User Manual 10.3 Wireless Relay Visit http://192.168.10.1 or http://cereslogin.com,Go to Wireless->WISP 1.Turn on WISP 2.select mode WISP:The upper-level router will only display your routing information, and the devices under your router will not display it. - Page 22 Shenzhen Ceres Wireless Router User Manual After the router restarts, the interface is as follows, and some functions cannot be used. If you want to use all the functions, please switch the router mode, how to switch, please refer to the...
-
Page 23: Router Management
Shenzhen Ceres Wireless Router User Manual 11 Router Management 11.1 Time Zone Config Login WIFI router web main interface, click Router -> Time Setting, in this interface, we can config “local time” and “Time zone”： 11.2 Backup And Restore Configuration Files Login WIFI router web main interface, click Router->... -
Page 24: Firmware Upgrade
Shenzhen Ceres Wireless Router User Manual 11.3 Firmware Upgrade Login WIFI router web main interface, click Router-> Software upgrade ,then click “Choose file” button, Choose the version you want to upgrade, then click “Confirm” button to upgrade firmware. Upgrade WIFI router need about four minutes, then WIFI router will auto reboot, don’t need... -
Page 25: Reboot And Restore Default Settings Wifi Router
Shenzhen Ceres Wireless Router User Manual 11.4 Reboot And Restore Default Settings WIFI Router Login WIFI router web main interface, click Router -> Restart and reset 【Factory reset 】Click “Reset” button to reset WIFI router 【Reboot router】Click“Reboot” button to reboot WIFI router. -
Page 26: Config Wifi Router Login Password
Shenzhen Ceres Wireless Router User Manual 11.5 Config WIFI Router Login Password Login WIFI router web main interface, click Router -> Admin password... -
Page 27: Modify Web Language/Remote Web/Turn Off Led/Telnet Service/Hardware Acceleration27
Shenzhen Ceres Wireless Router User Manual Finish config,click “confirm” button to make config effect. Note :After change the WIFI router login password,we need input new password login WIFI router web interface again. 11.6 Modify web language/remote web/turn off LED/Telnet service/Hardware Acceleration Login WIFI router web main interface,click Router ->... -
Page 28: System Log
Shenzhen Ceres Wireless Router User Manual 11.7 System log Login WIFI router web main interface,click Router -> System log ： You can get system log information of router operating on this page for diagnosis. -
Page 29: Device Working Mode
Shenzhen Ceres Wireless Router User Manual 11.8 Device working mode Login WIFI router web main interface, click Router -> Equipment mode： There are 3 modes that you can config ,Route mode ,Bridge mode and Relay mode .The default mode is Route. -
Page 30: Advanced Features
Shenzhen Ceres Wireless Router User Manual 12 Advanced Features 12.1 Flow Control Demand: Specify upload and download speeds for some devices Step: 1.Visit http://192.168.10.1 http://cereslogin.com 2.Go to Advanced->Internet control->Turn on Hardware speedup 3.Find your device in the list, Limit Turn on 4.Enter the speed you need in Download(KB)/Upload(KB) -
Page 31: Protect The Network From Cyber Attacks
Shenzhen Ceres Wireless Router User Manual 12.2 Protect the Network from Cyber Attacks Flood protection protects your home network from DoS attacks that can flood your network with server requests. Follow the steps below to configure DoS protection. 1.Visit http://192.168.10.1... -
Page 32: Mac Fillter
Shenzhen Ceres Wireless Router User Manual 12.3 MAC fillter MAC fillter is used to block or allow specific client devices to access your network (via wired or wireless) based on a list of blocked devices (Blacklist) or a list of allowed devices (Whitelist). - Page 33 Shenzhen Ceres Wireless Router User Manual 4.Black List:Example: Deny 00:11:22:33:44:55 to access your network (up to 10 rules), other devices can access your network. The configuration is as follows...
-
Page 34: Ip & Mac Binding
Shenzhen Ceres Wireless Router User Manual 12.4 IP & MAC Binding IP & MAC Binding is used to bind the IP address of a network device to its MAC address. This will prevent ARP spoofing and other ARP attacks by denying network access to devices in the binding list with matching IP addresses but unrecognized MAC addresses. -
Page 35: Virtual Server
Shenzhen Ceres Wireless Router User Manual 12.5 Virtual Server After using the router, Internet users cannot access the hosts in the LAN, so they cannot access Web, FTP, Mail and other servers built on the intranet. The virtual server function can realize the mapping of the server of the intranet to the Internet, so as to realize the opening of the server to the outside world. -
Page 36: Dmz Configuration
Shenzhen Ceres Wireless Router User Manual Users on the Internet can enter http:// WAN IP (in this example: http:// 10.11.104.11) to visit your personal website. 12.6 DMZ Configuration When a PC is set to be a DMZ (Demilitarized Zone) host in the local network, it is totally exposed to the Internet, which can realize the unlimited bidirectional communication between internal hosts and external hosts. -
Page 37: Iptv Service
Shenzhen Ceres Wireless Router User Manual 12.7 IPTV Service Demand: Configure IPTV setup to enable Internet/IPTV/Phone service provided by my Internet Service Provider (ISP). Step: 1.Visit http://192.168.10.1 http://cereslogin.com 2.Go to Advanced->IGMP 3.If your ISP provides the networking service based on IGMP technology, e.g.,... - Page 38 Shenzhen Ceres Wireless Router User Manual 4.If IGMP is not the technology your ISP applies to provide IPTV service: 1) Turn on IGMP Snooping or IGMP Proxy 2) Turn on IPTV 3)Choose whether to enable VLAN according to the requirements of the operator,...
-
Page 39: Set Up A Ddns Service Account
Shenzhen Ceres Wireless Router User Manual Your IPTV setup is done now! You may need to configure your set-top box before enjoying your 12.8 Set Up a DDNS Service Account Most ISPs assign a dynamic IP address to the router and you can use this IP address to access your router remotely. -
Page 40: Test The Network Connectivity
Shenzhen Ceres Wireless Router User Manual 12.9 Test the Network Connectivity Diagnostics is used to test the connectivity between the router and the host or other network devices. 1.Visit http://192.168.10.1 or http://cereslogin.com 2.Go to Advanced->Diagnosis 3.Enter the IP Address or Domain Name of the tested host. -
Page 41: Parental Control
Shenzhen Ceres Wireless Router User Manual 4.Click Confirm to begin the diagnostics. 12.10 Parental control Demand: Control children's Internet time, protect children's eyesight and health Step: 1.Visit http://192.168.10.1 http://cereslogin.com 2.Go to Parental controls->Equipment connected 3.Select the corresponding device in the list. Click Add 4.Select the time and date to go online. -
Page 42: Ipv6 Configuration
Shenzhen Ceres Wireless Router User Manual 12.11 IPV6 Configuration Step: 1.Visit http://192.168.10.1 http://cereslogin.com 2.Go to IPV6->Turn on 3.There are two option in IPv6 WANsetting mode ,Automatic and PPPoEv6,Automatic mode is default .If you get information of IPv6 connection from ISP, you can choose PPPoEv6 mode , and fill in blank with information of account and password .please... - Page 43 Shenzhen Ceres Wireless Router User Manual Configure LAN ports .let IPv6 LAN-address. Let IPv6 LAN-address and IPv6 LAN prefix in Automatic mode. You can enable or disable DHCPv6 function .
-
Page 44: Tr069 Client Configuration
Shenzhen Ceres Wireless Router User Manual 13 TR069 Client Configuration TR069 is a protocol. It provides operators with multiple management methods for easy maintenance of sold products Step: 1.Visit http://192.168.10.1 http://cereslogin.com 2.Go to TR069->Turn on 3.We can set the router parameters of the TR069 client (ACS URL address, username, password, periodic notification interval). -
Page 45: Wifi Mesh Configure
Shenzhen Ceres Wireless Router User Manual 14 WIFI Mesh Configure 13.1 Configuring Mesh on the Web (1). Visit http://192.168.10.1 http://cereslogin.com (2). Set 2.4G WIFI and 5G WIFI password (3). Enable Mesh Go to Wifi Mesh->Mesh Network: Auto->Confirm Mesh Network: 【Disable】：Default disable... - Page 46 Shenzhen Ceres Wireless Router User Manual (4). Construct Mesh Network Case 1: One 'Controller' and multiple 'Agent' form Mesh 1.Visit ‘Controller’ Router,Set 'Mesh Network' to 'Auto' or 'Controller' 2.Visit ’Agent 1’ and ‘Agent 2’ Router,Set ‘Mesh Network’ to ‘Auto’ or ‘Agent’...
- Page 47 Shenzhen Ceres Wireless Router User Manual...
- Page 48 Shenzhen Ceres Wireless Router User Manual Case 2: Add 'Agent' to existing mesh network 1.visit ‘Agent 3 ’ Router. Set 2.4G WIFI and 5G WIFI Password.Set ‘Mesh Network’ to ‘Auto’ or ‘Agent’ 2.visit ‘Agent 1’ or ‘Agent 2’ Router. Click ‘Start Mesh’ button 3.visit ’Agent 3’...
-
Page 49: Configuring Mesh On The 'Rst' Button
Shenzhen Ceres Wireless Router User Manual 13.2 Configuring Mesh on the 'RST' Button (1). Visit http://192.168.10.1 http://cereslogin.com (2). Set 2.4G WIFI and 5G WIFI password (3). Enable Mesh Go to Wifi Mesh->Mesh Network: Auto->Confirm Mesh Network: 【Disable】：Default disable 【Controller】: 【Agent】:... - Page 50 Shenzhen Ceres Wireless Router User Manual (4). Construct Mesh Network Case 1: One 'Controller' and multiple 'Agent' form Mesh 1.Visit ‘Controller’ Router,Set 'Mesh Network' to 'Auto' or 'Controller' 2.Visit ’Agent 1’ and ‘Agent 2’ Router,Set ‘Mesh Network’ to ‘Auto’ or ‘Agent’...
- Page 51 Shenzhen Ceres Wireless Router User Manual Case 2: Add 'Agent' to existing mesh network 1.visit ‘Agent 3 ’ Router. Set 2.4G WIFI and 5G WIFI Password.Set ‘Mesh Network’ to ‘Auto’ or ‘Agent’ 2.On the 'Agent 1' or 'Agent 2' Router, press the 'RST' button for 1 second 3.On the ‘Agent 3’...
-
Page 52: How To Troubleshoot Wifi Mesh Networking Failure
Shenzhen Ceres Wireless Router User Manual 13.3 How to troubleshoot WIFI Mesh networking failure? Check whether the SSID of 2.4G and 5G of each router is configured with password and encryption method. Check the direct distance between the main router and the sub-router and keep it within 15 meters to ensure that the WIFI signal between the routers is good Make sure the MESH function in the router is enabled. -
Page 53: Faq3.I Cannot Log Into The Router's Web Management Page, What Can I Do
Connect to the SSID corresponding to the label on the back of the router 2.Check IP information Your device must have an IP from the ceres device to access the web management page. Most Ceres devices have DHCP turned on by default, which will assign an IP address to your device. - Page 54 3) Select Local host MAC, which clones your PC's MAC address to the router's WAN MAC address 4.Change router LAN IP address Most Ceres routers use 192.168.10.1/24 as the default LAN IP address, which may conflict with your existing modem/router IP. If so, it will cause you to not be able to access the Internet, we can change the router LAN IP to avoid IP conflict, for example 192.168.88.1...
- Page 55 Shenzhen Ceres Wireless Router User Manual Note:After changing the LAN IP address, you need to use the new IP to access the management interface next time. 5.Double check the Internet Connection Type. 1) Confirm your Internet Connection Type, which can be learned from the ISP.
-
Page 56: Faq5 I Cannot Find My Wireless Network Or I Cannot Connect The Wireless Network
Shenzhen Ceres Wireless Router User Manual DNS server. 1) Visit http://192.168.10.1 http://cereslogin.com 2) Go to Router->LAN settings 3) Enter 8.8.8.8 as DNS1,8.8.4.4 as DNS2 7.Reset the router to factory default settings and reconfigure the router. 8.Upgrade the firmware of the router. -
Page 57: Faq 6 How To Switch The Working Mode Of The Router
Shenzhen Ceres Wireless Router User Manual 3) Reinstall or update the wireless card driver FAQ 6 How to switch the working mode of the router? 1.Visit http://192.168.10.1 http://cereslogin.com 2.Go to Router->Equipment mode 3.Choose the working mode you need Note:In bridge and relay mode, some functions of the router cannot be used. To use the full function, please use... -
Page 58: Faq 8 How To Place Routers For Best Signal/Coverage
Shenzhen Ceres Wireless Router User Manual Fault 2: Relay failed Set according to Fault 1 The main route and the sub-route are too far apart Confirm that the SSID and password for connecting to the main router are correct Whether the upper-level router has set MAC filtering. - Page 59 Shenzhen Ceres Wireless Router User Manual interference can weaken the WIFI signal. So, in many cases, the easiest and low-cost way to improve WIFI coverage is to move the router to a better location. Here, we will provide some options for your reference.
