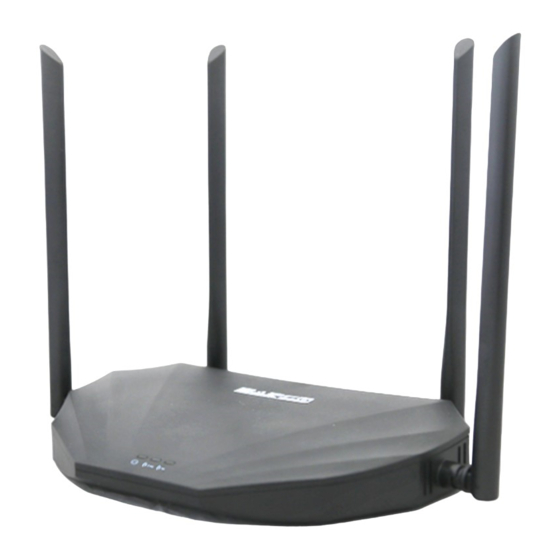

2 Brief The WR525G-AX1800 is a wireless router, support one1000Mbps WAN port,four 1000Mbps LAN ports. , allows you to 2.4G WI-FI rate can reach 600Mpbs, 5G WI-FI rate can reach 1200Mpbs quickly set up a 600Mbps wireless network or 1200Mbps wireless network, and lets your computers can access to Internet.
2.3 Device Interface Definition LAN port: (Yellow RJ-45 port (1-4)) connect computers and other terminal devices. WAN port: (Blue RJ-45 port) connect the operators network . 2.4 LED Description Indicator Description On: The WIFI router is power on; Power status Off: The WIFI router is Power off;...
3 WIFI Router Local Web Login Management 3.1 Physical Connection of WIFI Router and PC or Phone a) Connect wireless devices such as mobile phones to the wireless network of the router. The default wireless network name can be viewed on the sticker on the bottom of the router. b) Connect the computer to any LAN port of the router with a network cable Company Address: Flat 6, Bldg 4,South 2 of Honghualing Industrial Zone,Liuxian Road, Xili Town, Shenzhen, Guangdong, China(518055) Factory Address: Fl1, Bldg B, Wentao Industrial zone, Yingrenshiyongxin Village, Shiyan Street, Baoan district, Shenzhen, Guangdong, China (518055)
3.2 PC and Phone Access the WEB of WIFI Router Make sure computers and WIFI router connected in # 3.1, open PC Web browser (IE, firefox, Google), copy and paste the WIFI router to access the URL:http://192.168.10.1, then pop-up WIFI router prompt login page as follows: admin,...
4 View WIFI Router Status 4.1 View WIFI Router System Status 1. Entry WIFI router web main interface, then click Router ->System state ,then we can see WIFI router System time, firmware version and Running time: Company Address: Flat 6, Bldg 4,South 2 of Honghualing Industrial Zone,Liuxian Road, Xili Town, Shenzhen, Guangdong, China(518055) Factory Address: Fl1, Bldg B, Wentao Industrial zone, Yingrenshiyongxin Village, Shiyan Street, Baoan district, Shenzhen, Guangdong, China (518055) Tel: +86-755-26014509/4710/4711 Fax:+86-755-26014506 Website:...
4.2 View WIFI Router Wireless Information 1. Input WIFI router web main interface, then click Wireless -> 2G WIFI name and password or 5G WIFI name and password, then we can view WIFI mode, Channel and Bandwidth and etc: 1# Click “2G WIFI name and password “ ,View 2G WIFI information. Company Address: Flat 6, Bldg 4,South 2 of Honghualing Industrial Zone,Liuxian Road, Xili Town, Shenzhen, Guangdong, China(518055) Factory Address: Fl1, Bldg B, Wentao Industrial zone, Yingrenshiyongxin Village, Shiyan Street, Baoan district, Shenzhen, Guangdong, China (518055) Tel: +86-755-26014509/4710/4711 Fax:+86-755-26014506...
Click “5G WIFI name and password “ ,View 5G WIFI information. 5 WIFI Router Internet WAN Configuration For the WIFI router the internet access method is use routing mode, internet wan configuration is important things. WIFI router support 3 method internet access ways: PPPoE、Dynamic IP、 Static IP .
After finished all of the configuration, click ‘Enable’ button to finish “PPPOE”setting. 5.2 Set WIFI Router DHCP Access Internet Method Login WIFI router web main interface, then click “Internet setup”,then Select “Dynamic IP” in mode. After finished all of the configuration, click ‘Enable’ button to finish “DHCP”setting. 5.3 Set WIFI Router Static IP Address Access Internet Method Login WIFI router web main interface, then click “Internet setup”,then Select ‘Static IP’...
After finished all of the configuration, click ‘Enable’ button to finish “Static IP”setting. 5.4 View WIFI Router Internet WAN Connection Status On WIFI router web main interface select Router ->System state , in this interface,we can check the WIFI router whether get ip,if wan connect is successful and ip address information .etc: Company Address: Flat 6, Bldg 4,South 2 of Honghualing Industrial Zone,Liuxian Road, Xili Town, Shenzhen, Guangdong, China(518055) Factory Address: Fl1, Bldg B, Wentao Industrial zone, Yingrenshiyongxin Village, Shiyan Street, Baoan district, Shenzhen, Guangdong, China (518055)
6 WIFI Router LAN Port Configuration 6.1 LAN IP Address And DHCP Server Configuration 1. In WIFI router web main interface select Router-> LAN Settings, then config parameter as follows: 【 IP 】 Set local management IP address of WIFI router. The default IP address is 192.168.10.1 【mask】Set the mask of local management IP address of WIFI router 【DHCP】Click the button to enable or disable Router DHCP Server function.
Page 15
After finished all of the configuration, click ‘confirm’ button to finish “LAN IP”setting. Company Address: Flat 6, Bldg 4,South 2 of Honghualing Industrial Zone,Liuxian Road, Xili Town, Shenzhen, Guangdong, China(518055) Factory Address: Fl1, Bldg B, Wentao Industrial zone, Yingrenshiyongxin Village, Shiyan Street, Baoan district, Shenzhen, Guangdong, China (518055) Tel: +86-755-26014509/4710/4711 Fax:+86-755-26014506 Website: www.szceres.com...
7 WLAN Configuration 7.1 Wireless 2.4G wifi configuration Login to WIFI router web main interface then click Wireless->2G WIFI name and password ,then config wireless as follows parameter: Click the button next to switch to control the on and off of WIFI. 【Wifi】Set the name of the WIFI;Check hide wireless, then others cannot find this wifi;...
Wireless 5Gwifi configuration Login to WIFI router web main interface then click Wireless->5G WIFI name and password ,then config wireless as follows parameter: Click the button next to switch to control the on and off of WIFI. 【Wifi】Set the name of the WIFI;Check hide wireless, then others cannot find this wifi; 【password】Set WIFI password 【Channel】Default is Auto,we can select a suitable channel refer to surrounding wifi environment;...
8 WIFI Router Management 8.1 Time Zone Config Login WIFI router web main interface, click Router -> Time Setting, in this interface, we can config “local time” and “Time zone”: Company Address: Flat 6, Bldg 4,South 2 of Honghualing Industrial Zone,Liuxian Road, Xili Town, Shenzhen, Guangdong, China(518055) Factory Address: Fl1, Bldg B, Wentao Industrial zone, Yingrenshiyongxin Village, Shiyan Street, Baoan district, Shenzhen, Guangdong, China (518055) Tel: +86-755-26014509/4710/4711 Fax:+86-755-26014506 Website:...
8.2 Backup And Restore Configuration Files Login WIFI router web main interface, click Router-> Backup and development, then we can config WIFI router as follows: 1.Click “ backup ” button to save the system configuration locally. 2.Choose WIFI Router backup File to restore 3.Click“Configuration”...
8.3 Firmware Upgrade Login WIFI router web main interface, click Router-> Software upgrade ,then click “Choose file” button, Choose the version you want to upgrade, then click “Confirm” button to upgrade firmware: Upgrade WIFI router need about four minutes, then WIFI router will auto reboot, don’t need reboot manually.
8.5 Config WIFI Router Login Password Login WIFI router web main interface, click Router -> Admin password login password: Finish config,click “confirm” button to make config effect. Note :After change the WIFI router login password, we need input new password login WIFI router web interface again.
Page 24
8.6 WEB management Login WIFI router web main interface,click Router -> WEB management : Default Language : English Remote web : Default off ,if you switch to on ,you can visit web by WAN interface. Close LED : Default off ,if you switch to on ,the LED of router will be turn off . Telnet service : default off ,if you switch to on ,you can Telnet the router by LAN interface.
Page 25
8.8 Equipment mode Login WIFI router web main interface, click Router -> Equipment mode: There are 3 modes that you can config ,Route mode ,Bridge mode and Relay mode .The default mode is Route. Note: please config the router mode follow the guide of engineer . 8.9 Automatic maintenance Login WIFI router web main interface, click Router ->...
Page 26
Please turn switch to be on if you want set up IPv6 connection. There are two option in IPv6 WANsetting mode ,Automatic and PPPoEv6,Automatic mode is default . If you get information of IPv6 connection from ISP, you can choose PPPoEv6 mode , and fill in blank with information of account and password .
IPv6 Status will show a successful configuration if you have successfully build an IPv6 connection . 10 WIFI Router TR069 Client Configuration Login Router ’s website , select TR069. In this page, we can switch on the function for TR069 client(default off ), then we can set Router ’s parameter of TR069 client (ACS URL address ,User Name, Password, periodic inform interval ).
