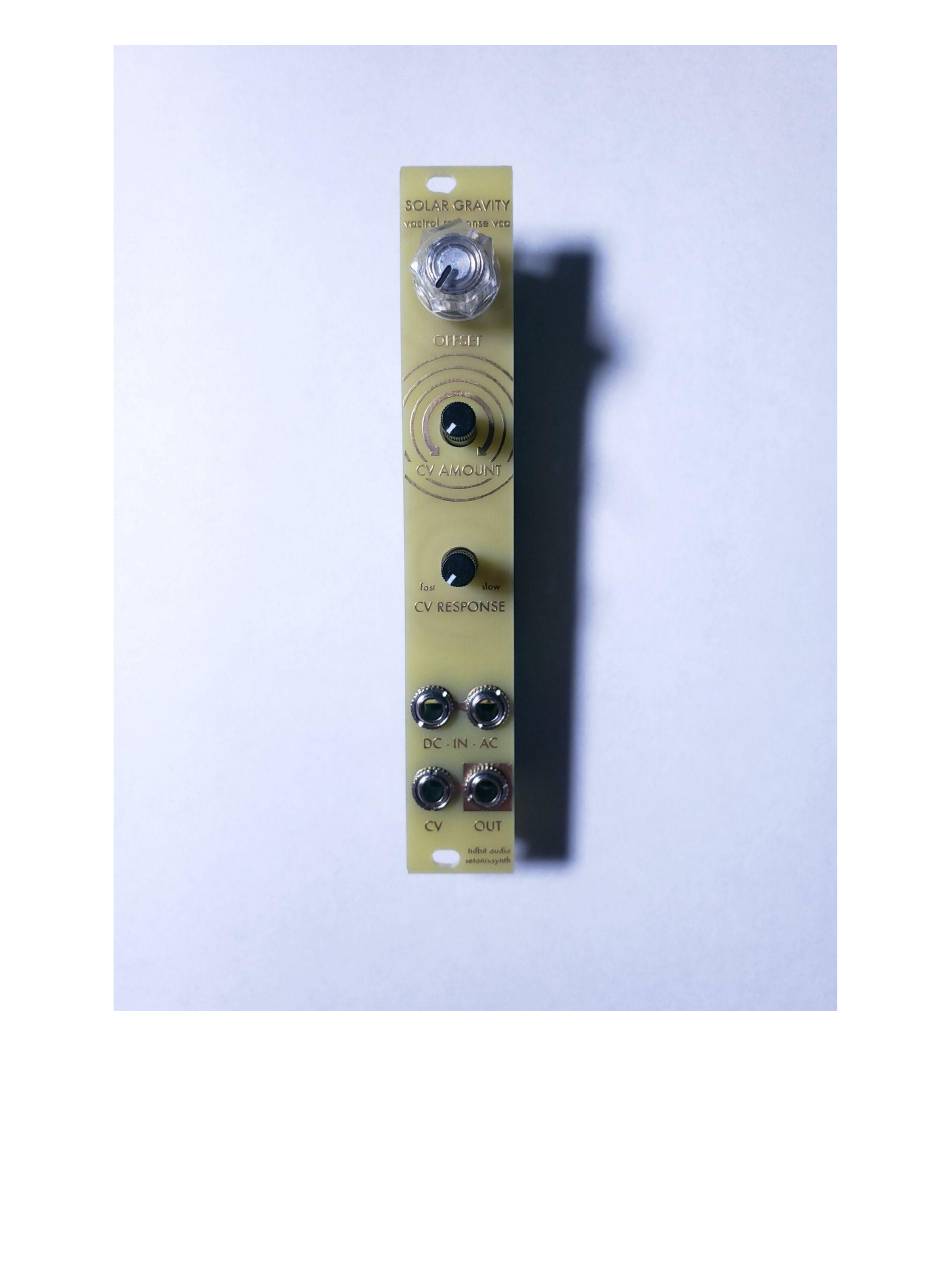

- Page 1 Solar Gravity Vactrol Response VCA User’s Manual - Eurorack Copyright 2023 SetonixSynth & Tidbit Audio. All rights reserved.
- Page 2 1. Connecting your Solar Gravity Connect a 10-to-16 pin ribbon power cable to the header at the top of the Solar Gravity pcb. The -12V/red stripe side of the connector must be aligned with white stripe silkscreen indicator labeled “-12V” for proper use.
- Page 3 The Solar Gravity contains a few trimmers in order to optimize the range and performance of the VCA. While we do our best to calibrate every module to be ready “out of the box”, the Solar Gravity may need re-calibration when added to a new case if the rail voltages are significantly different. To calibrate the Solar Gravity: 1.
