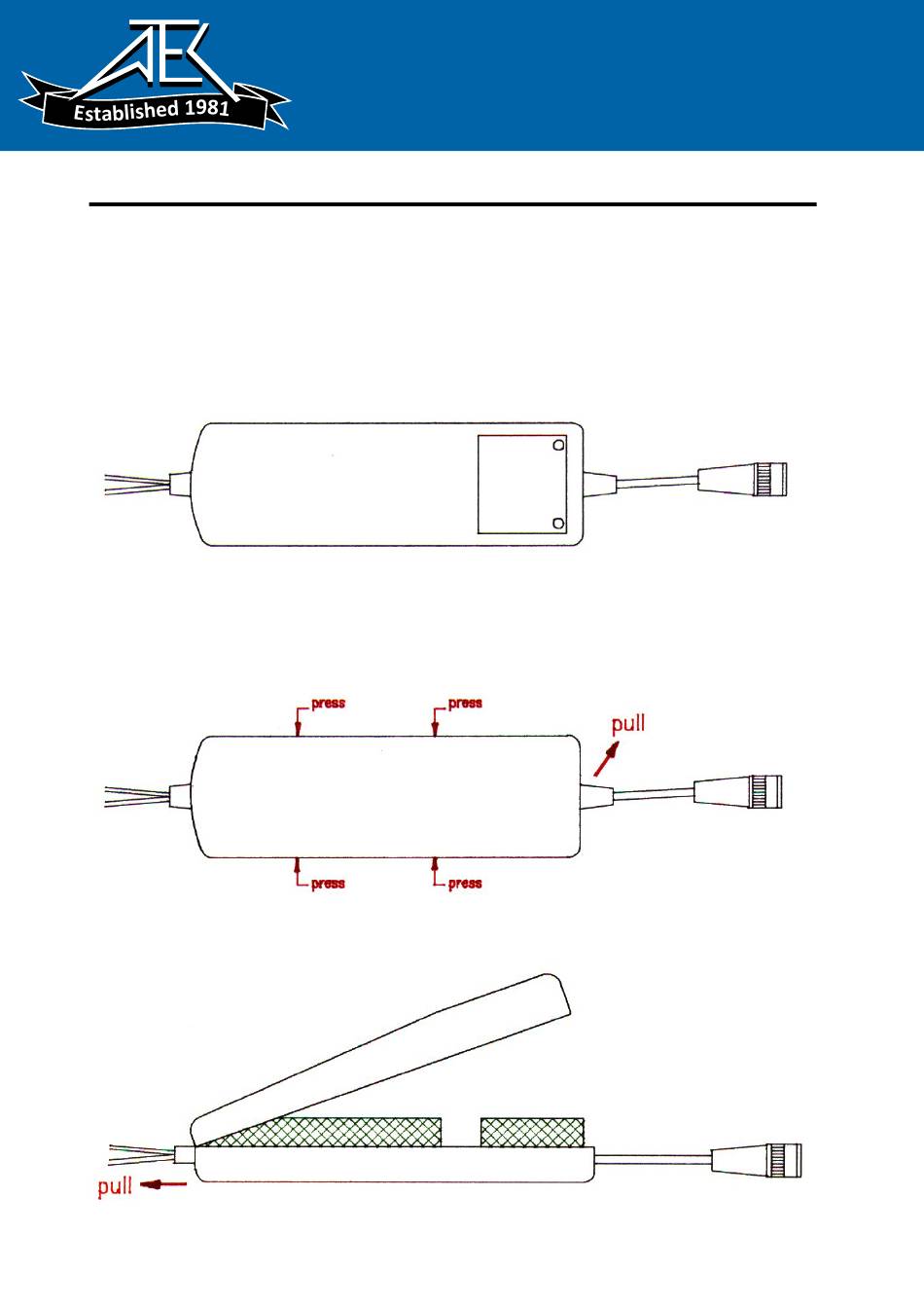

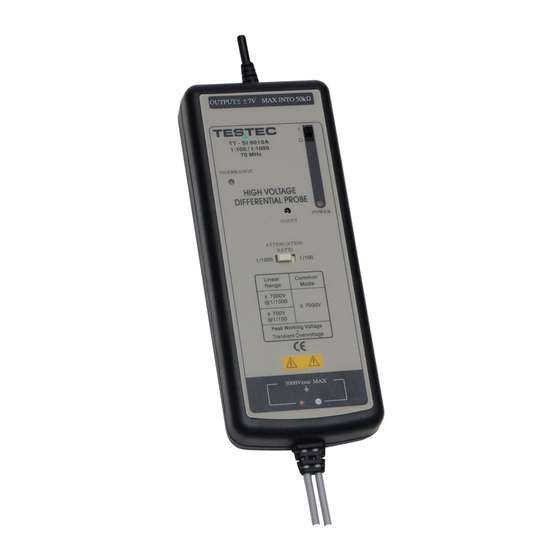

1. How to open the case, please follow the steps.
1.1 Remove the battery lid.
1.2 You will see the two screws and loosen them.
1.3 Use fingers to press the bottom case inward, and pull it backward and upward.
1.4 Hold the bottom case and pull the upper case backward (to input lines direction).
