Silicon Laboratories EFR32BG12 User Manual

UG259: EFR32BG12 2.4 GHz 10 dBm
Radio Board User's Guide
A Wireless Starter Kit with the BRD4103A Radio Board is an ex-
cellent starting point to get familiar with the EFR32™ Blue Gecko
Wireless System-on-Chip, and it provides all necessary tools for
developing a Silicon Labs wireless application.

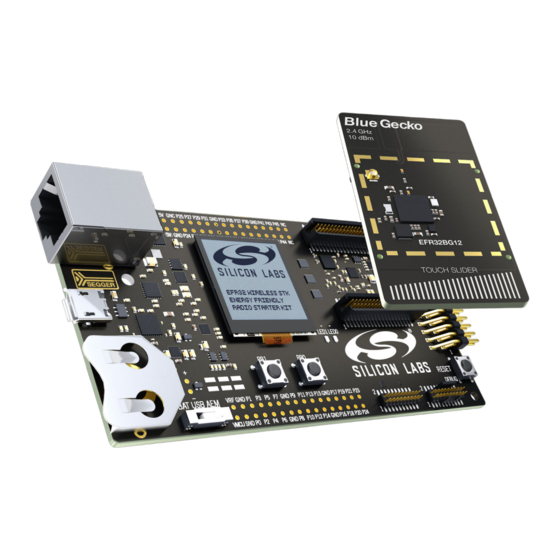

BRD4103A is a plug-in board for the Wireless Starter Kit Mainboard. It is a complete ref-
erence design for the EFR32BG12 Wireless SoC, with matching network and a PCB an-
tenna for 10 dBm output power in the 2.4 GHz band. The radio board also feature a ca-
pacitive touch slider for evaluation of the EFR32 Capacitive Sense module.
The Wireless Starter Kit Mainboard contains an on-board J-Link debugger with a Packet
Trace Interface and a Virtual COM port, enabling application development and debug-
ging the attached radio board as well as external hardware. The Mainboard also con-
tains sensors and peripherals for easy demonstration of some of the EFR32's many ca-
pabilities.
This document describes how to use the BRD4103A Radio Board together with a Wire-
less Starter Kit Mainboard.
silabs.com | Building a more connected world.
BRD4103A RADIO BOARD FEATURES
• EFR32BG12 Blue Gecko Wireless SoC
with 1024 kB Flash, and 256 kB RAM
(EFR32BG12P332F1024GL125)
• 2.4 GHz integrated radio transceiver
• 10 dBm output power
• Inverted-F PCB antenna
• 8 Mbit low-power serial flash for over-the-
air upgrades.
• Capacitive touch slider
WIRELESS STK MAINBOARD FEATURES
• Advanced Energy Monitor
• Packet Trace Interface
• Virtual COM Port
• SEGGER J-Link on-board debugger
• External device debugging
• Ethernet and USB connectivity
• Silicon Labs Si7021 Relative Humidity and
Temperature sensor
• Low Power 128x128 pixel Memory LCD
• User LEDs / Pushbuttons
• 20-pin 2.54 mm EXP header
• Breakout pads for Wireless SoC I/O
• CR2032 coin cell battery support
SOFTWARE SUPPORT
• Simplicity Studio™
• Energy Profiler
• Network Analyzer
ORDERING INFORMATION
• SLWRB4103A
Rev. 1.02
