USB FM R
A D I O

1. USB FM Radio Setup

Follow the instructions listed below to set up and configure the USB FM Radio.
1. Download the USB FM Radio Player from the Silicon Laboratories website at www.silabs.com/usbradio.
2. Connect the USB FM Radio to an available USB Port on the PC.
3. Run the USB FM Radio Player.
4. The first time the Radio is connected, the USB FM Radio Setup Wizard shown in Figure 1 will appear.
5. Enter the correct location to specify the region-specific FM band.
6. Optionally, enter local radio station frequencies as Presets for the USB Radio player.
7. Press the Done button to configure the USB FM Radio Player.
8. The USB FM Radio Player will now connect to the USB FM Radio and will tune to the default radio station.
9. If configured, press one of the Station Preset buttons. Otherwise, press the Seek button to find a local radio
station.
Rev. 1.0 11/05
U
'
G
S E R
S

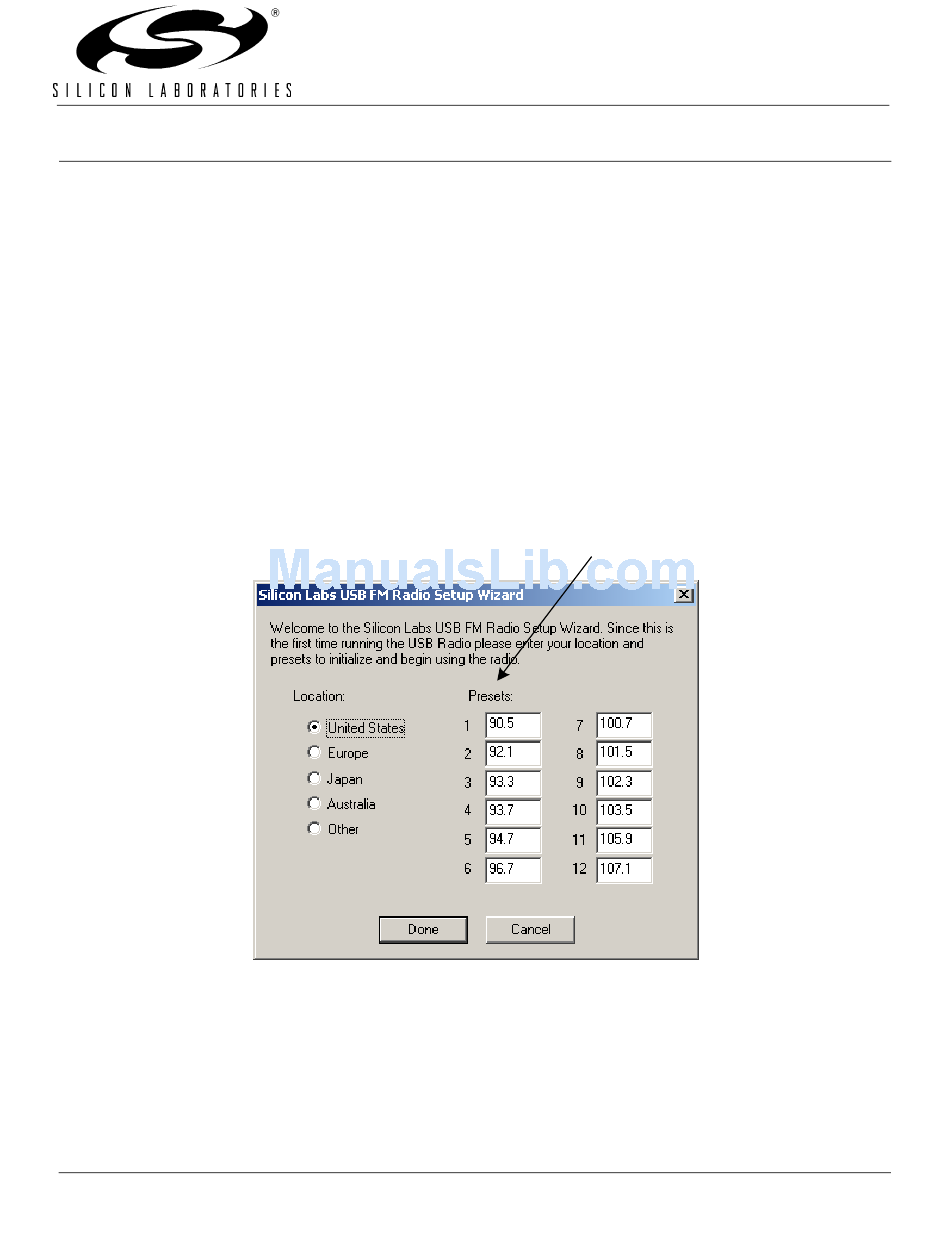

Figure 1. Initial USB FM Radio Player Setup
Copyright © 2005 by Silicon Laboratories
U S B F M R a d i o - R D
U I D E
One-time set-up enables
configuration of presets and
region specific FM band
USB FM Radio-RD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Radio and is the answer not in the manual?

Questions and answers

Related Manuals for Silicon Laboratories Radio

Summary of Contents for Silicon Laboratories Radio

  • Page 1 7. Press the Done button to configure the USB FM Radio Player. 8. The USB FM Radio Player will now connect to the USB FM Radio and will tune to the default radio station. 9. If configured, press one of the Station Preset buttons. Otherwise, press the Seek button to find a local radio station.
  • Page 2 • Hover the mouse over each button to display tooltips and programmed stations. • Right-click the Silicon Labs USB FM Radio icon in the systray menu to display a list of the station presets as well as an alternative way to seek and tune the radio.
  • Page 3 U S B F M R a d i o - R D Region Options Station Presets Version Info Figure 3. Configuration Options Rev. 1.0...
  • Page 4 Silicon Laboratories products are not designed, intended, or authorized for use in applications intended to support or sustain life, or for any other application in which the failure of the Silicon Laboratories product could create a situation where per- sonal injury or death may occur.
