Page 1: Video Monitor
Video Monitor Operating Instructions WV-BM1790 Model No. POW ER Vi de o Mo nit 1 7 9 0 W V- BM Before attempting to connect or operate this product, please read these instructions carefully and save this manual for future use. -
Page 2: Table Of Contents
ENGLISH VERSION IMPORTANT SAFETY INSTRUCTIONS ... 3 PREFACE ... 4 FEATURES ... 4 PRECAUTIONS ... 4 MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS ... 5 CONNECTIONS ... 6 INSTALLATION ... 7 SPECIFICATIONS ... 8 STANDARD ACCESSORY ... 8 OPTIONAL ACCESSORY ... 8 CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. 8) Do not use near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. -
Page 4: Preface

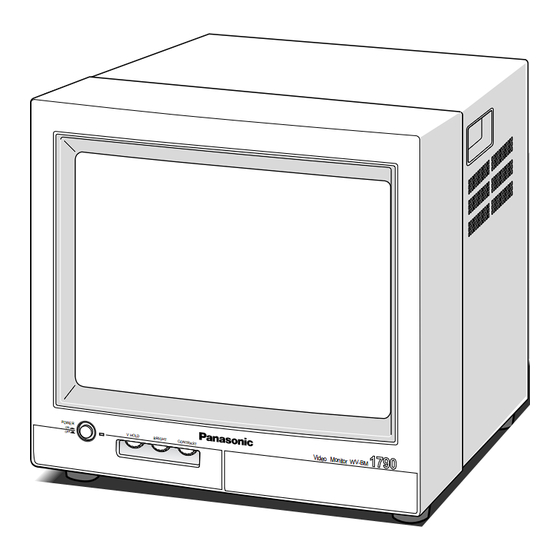

PREFACE The Panasonic Video Monitor WV-BM1790 reproduces sharp black and white images on a 16-inch diagonal screen, designed primarily for industrial applications, and accepts standard CCIR/EIA input signals. FEATURES • 413 mm (16-1/4 inches) diagonal viewing size. • Horizontal resolution of 1 000 lines at the center. -
Page 5: Major Operating Controls And Their Functions
BRIGHT CONTRAST e r t q Power Button (POWER ON/OFF) This button turns the monitor power on and off. w Power Indicator Is on when the monitor power is turned on. e Vertical Hold Control (V-HOLD) This control is used to lock the vertical position of the picture. -
Page 6: Connections
Connection with the Camera Site Connect the Video output of the camera site equipment to the VIDEO IN connector at the rear of the monitor using a coaxial cable. The maximum coaxial cable length between the camera and the monitor is shown in the table below. -
Page 7: Installation
2. Remove the four screws on both side panels of the monitor. 3. Place the rack mounting bracket on the side panels of the monitor and tighten it with the four supplied screws (M4 x 12). 4. Install the monitor with the rack mounting bracket in the rack andsecure it with eight screws (procured locally). -
Page 8: Specifications
SPECIFICATIONS Power source: Power consumption: Screen size: Horizontal resolution: Video input: Video output: Horizontal scanning frequency: Vertical scanning frequency: Sweep linearity: Sweep geometry: Overscanning: Ambient operating humidity: Ambient operating temperature: Dimensions: Weight: Weight and dimensions shown are approximate. Specifications are subject to change without notice. STANDARD ACCESSORY Power Cord ...1 pc. - Page 9 Panasonic Security and Digital Imaging Company A Division of Matsushita Electric Corporation of America Executive Office: One Panasonic Way 3E-7, Secaucus, New Jersey 07094 Regional Offices: Northeast: One Panasonic Way, Secaucus, NJ 07094 (201) 348-7303 Southern: 1225 Northbrook Parkway, Suite 1-160, Suwanee, GA 30024 (770) 338-6838...
