- Page 1 Accelerating the path to discovery® HYDROGEN MODERN ROTARY EVAPORATOR OPERATING MANUAL Ecodyst Inc. - info@ecodyst.com - 919-717-4061 – www.ecodyst.com Accelerating the path to Discovery®...

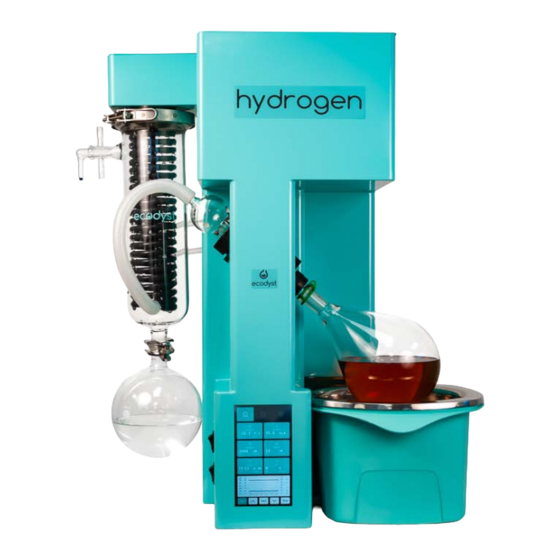

- Page 2 Additionally, this modern all-in-one rotovap has superior advantages, has a large cooling survey area condenser and extremely fast rates of evaporation. The hydrogen is a plug-and-play rotovap that allows scientists to focus on more complex tasks.
- Page 3 Accelerating the path to Discovery® ABOUT THIS MANUAL This operating manual provides the technical and operational details for the Hydrogen. ● Please read this manual carefully and obey all safety and warning notices. ● Ensure that every operator reads this manual. ● Ensure that this manual is accessible for every operator.
-
Page 4: Table Of Contents
Ecodyst, Inc. 1010 Goodworth Drive Apex, NC 27539 919-817-4168 info@ecodyst.com www.ecodyst.com Accelerating the path to Discovery® TABLE OF CONTENTS SAFETY INSTRUCTIONS ............................. 5 General Safety Instructions ............................... 5 Intended use ..................................5 Improper use ..................................5 Installation / Electrical Safety ............................6 Personnel Qualification ..............................6 Operating Company’s Obligations ............................. 6 Safety During Use ................................8 Disposal .................................... -
Page 5: Safety Instructions
Ecodyst, Inc. 1010 Goodworth Drive Apex, NC 27539 919-817-4168 info@ecodyst.com www.ecodyst.com Accelerating the path to Discovery® SAFETY INSTRUCTIONS General Safety Instructions The device has been constructed according to state-of-the-art technology and recognized safety regulations. However, risks may still arise during installation, operation and maintenance. Please ensure the operating manual is available at all times. -
Page 6: Installation / Electrical Safety
Ecodyst, Inc. 1010 Goodworth Drive Apex, NC 27539 919-817-4168 info@ecodyst.com www.ecodyst.com Accelerating the path to Discovery® Installation / Electrical Safety The device may only be connected when the mains voltage corresponds to the ● information on the type plate of the unit. The mains connection must be accessible at all times. - Page 7 Ecodyst, Inc. 1010 Goodworth Drive Apex, NC 27539 919-817-4168 info@ecodyst.com www.ecodyst.com Accelerating the path to Discovery® o The device should not be installed closer than 1.4 meters (4 feet) to a heat-generating source, such as heating pipes, boilers, etc. o If possible, the device should be located near a suitable drain to prevent flooding in the event of leaks.
-
Page 8: Safety During Use
Ecodyst, Inc. 1010 Goodworth Drive Apex, NC 27539 919-817-4168 info@ecodyst.com www.ecodyst.com Accelerating the path to Discovery® Safety During Use ● Wear the appropriate protective clothing when working on the device (clothing, protective glasses and if necessary, safety gloves). ● Do not use the device in potentially explosive areas. The device is not protected against explosion. -
Page 9: Accessories And Spare Parts
ACCESSORIES AND SPARE PARTS Scope of Delivery Part No Picture Description ECO-333-1H hydrogen rotary evaporator, 115V or 230V ECO-777-091 100mm O-ring groove flange condenser glass body with inlet hose connection and vacuum port ECO-777-155 Rotovap adapter to connect rotovap rotary head to condenser... -
Page 10: Device Description And Functions
Ecodyst, Inc. 1010 Goodworth Drive Apex, NC 27539 919-817-4168 info@ecodyst.com www.ecodyst.com Accelerating the path to Discovery® DEVICE DESCRIPTION AND FUNCTIONS Device Overview Controller Overview Ecodyst® – Accelerating the path to Discovery®... -
Page 11: Multifunctional Touchscreen
Ecodyst, Inc. 1010 Goodworth Drive Apex, NC 27539 919-817-4168 info@ecodyst.com www.ecodyst.com Accelerating the path to Discovery® Multifunctional touchscreen Touchscreen functions: 1. EcoChyll condenser 2. Heating bath 3. Vacuum controller 4. Rotation speed 5. Lift 6. Timer 7. Reversible speed Ecodyst® – Accelerating the path to Discovery®... -
Page 12: Home Interface
Ecodyst, Inc. 1010 Goodworth Drive Apex, NC 27539 919-817-4168 info@ecodyst.com www.ecodyst.com Accelerating the path to Discovery® Home Interface Home interface button : Press this button to enter the main interface. 2. Long press “ ” 5S switches to oil bath mode. And hold for another 5S, switches to water bath model. -
Page 13: Set Interface
Ecodyst, Inc. 1010 Goodworth Drive Apex, NC 27539 919-817-4168 info@ecodyst.com www.ecodyst.com Accelerating the path to Discovery® Set Interface 1. EcoChyll ：To set the EcoChyll condenser target temperature, setting range: -40℃ - 0℃ 2. Heating ：To set the heating bath target temperature, setting range: 0 ℃ - 90℃ (water), 0℃ - 180℃ (oil) 3. -
Page 14: Technical Data
Ecodyst, Inc. 1010 Goodworth Drive Apex, NC 27539 919-817-4168 info@ecodyst.com www.ecodyst.com Accelerating the path to Discovery® Technical Data Power Supply 100-120/200-240 V 50/60 Hz hydrogen Cooling Capacity Specs Evap. temp Capacity Power cons. Current cons. °F BTU/h BTU/Wh +/-5% +/-5% +/-5% 4.21 0.84 4.64 1.95 5.10 2.68 1257 5.44 3.16... - Page 15 Ecodyst, Inc. 1010 Goodworth Drive Apex, NC 27539 919-817-4168 info@ecodyst.com www.ecodyst.com Accelerating the path to Discovery® Rotovap Component Specifications Specifications hydrogen Rotovap Motor Type Brushless DC motor Speed Range 20-280rpm Display Touchscreen Clockwise and Anti-clockwise Heating Temperature Range Room temp. to 180℃ Control Accuracy water: ±1℃ oil: ±3℃ Heating Power...
-
Page 16: Material For Ecochyll Condensers
Ecodyst, Inc. 1010 Goodworth Drive Apex, NC 27539 919-817-4168 info@ecodyst.com www.ecodyst.com Accelerating the path to Discovery® Material for EcoChyll Condensers EcoChyll® condensers are made of stainless steel 316 metallic alloy and coated with chemical resistant Halar (ECTFE). Halar is virtually unaffected by most corrosive chemicals commonly encountered in industry. Among those substances that Halar fluoropolymer is resistant to are strong mineral and oxidizing acids, alkalis, metal etchants, and most organic solvents except hot amines (e.g. -
Page 17: Assembly
9. Attach receiving flask to condenser body with pinch clamp 10. Attach tubing to condenser glass vacuum port and vacuum pump. 11. Plug in hydrogen and turn the switch to one located on the lower left side 12. Hydrogen display will light with 8.8.8.8 for startup period 13. -
Page 18: Post Operations
Recommended to clean condenser glass after use and replace tubing as needed. Maintenance The unit is maintenance-free. Any necessary repair must be performed by an authorized Ecodyst distributor. Please contact Ecodyst or your local Ecodyst distributor. Troubleshooting Loss of Vacuum Assess and tighten clamps on various components Check vacuum seal on rotary evaporator. -
Page 19: Support
SUPPORT Warranty Ecodyst provides a 2-year warranty for the products described here (excluding glass and wearing parts) if you register using the warranty card enclosed. The warranty is valid from the point of registration. The serial number is also valid without registering. The warranty covers part and manufacturing defects. -
Page 20: Service
If not, which substances has the unit come into contact with? ______________________________________________________________________________________________ ________________________________________________________________________________ Legally binding declaration The customer is aware of being legally liable to Ecodyst for any damages arising from incomplete and incorrect information. Signature: Date: Please note: The shipper is responsible for the return of the goods in well packed condition, suitable for the mode of transport. -
Page 21: Contact Details
Ecodyst, Inc. 1010 Goodworth Drive Apex, NC 27539 919-817-4168 info@ecodyst.com www.ecodyst.com Accelerating the path to Discovery® CONTACT DETAILS Ecodyst, Inc. 1010 Goodworth Dr. Apex, NC 27539 919-717-4061 info@ecodyst.com www.ecodyst.com Invented for scientists by scientist Ecodyst® – Accelerating the path to Discovery®...
