ANEL ANELVPSM-01ST Instructions For Use And Maintenance Manual

Electric heated hybrid vaporizer/smoker
Hide thumbs Also See for ANELVPSM-01ST:
Table of Contents

Advertisement

Quick Links

Download this manual
:
ANELVPSM-01ST / ANELVPSM-02ST / ANELVPSM-03ST/ANELVPSM-04ST
Types

Applications

The device is used to produce:
1.
Vapor
2.
Hybrid vapor with the smell of burning wood
3.
Conventional smoke
which is applied to bees during the beekeepers' visits to the apiary.
The device is designed to work:
1) As a vaporizer in combination with the Vapor Pad vapor production material ref... AN1040VAP , which produces vapor
with the common method of heating vaping materials.
2) As a hybrid vaporizer in combination with the Cool Smoke hybrid vaping material ref... AN1040CS, an ANEL-patented
formula that produces vapor with the smell of burning wood, making it more effective for bees.
3) As a traditional device in combination with conventional smoking materials for their safe ignition with a closed device
lid instead of using a match or lighter.
Both the Vapor Pad and Cool Smoke products contain substances that have been used for decades in various forms in
beekeeping. The products have successfully passed extensive tests, both in the laboratory and in apiaries, for their effect on
bees or residues in honey.
Both VP and CS products contain extinguishing agents that prevent flame development. When they are used according to the
instructions for use of the device they are safe and dramatically decrease the risk of fire compared with the traditional bees
smokers.
Even with the use of conventional smoking materials (e.g., pine needles), due to the fact that the materials are ignited in an
entirely closed environment, it is safer than conventional smokers.

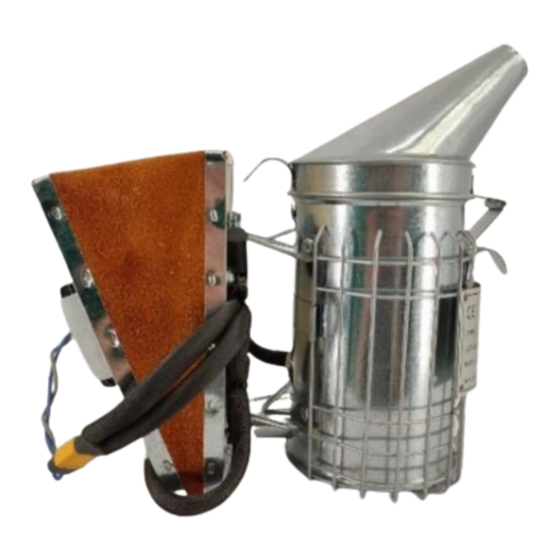

Device description

The device consists of:
1. Bellow
2. Fire chamber
3. Nozzle
4. Heat shield
5Α. Battery adapter, female
5Β. Heating element-resistance power adapter, male
6. Heating element (R1)

Accessories

One set of battery (-ies) and chargers (1X 110/220V , 1X12V ) will be included in the package but you will have to define the
type of battery when you will place the order (consult table 1). If in the future you want to purchase an other battery you
should also order the proper charges . The device does not operate without a 14. Battery, 15. Battery charger

Instructions for use and maintenance

Electric heated hybrid vaporizer/smoker

ANEL ΕΕ PANTELAKIS GP
th
6, 45
Odos Street, Industrial Park
Ano Liosia, 13341
Greece
Tel.-Fax +30 2102771180/2102771101/2102483870
info@anel.gr www.anel.gr
7. Fuse box with 15A fuse
8. Fire chamber air inlet
9. Velcro battery strap
10. Aeration grate A
12. Negative polarity contact pin with device body
13. Grabber for Vapor Pads

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ANELVPSM-01ST and is the answer not in the manual?

Questions and answers

Related Manuals for ANEL ANELVPSM-01ST

Summary of Contents for ANEL ANELVPSM-01ST

  • Page 1: Instructions For Use And Maintenance

    2) As a hybrid vaporizer in combination with the Cool Smoke hybrid vaping material ref... AN1040CS, an ANEL-patented formula that produces vapor with the smell of burning wood, making it more effective for bees.

  • Page 2: How To Choose A Battery

    5Β 5Α How to choose a battery: The available types of batteries provide a different current to the resistance, which produces the corresponding temperature to the vaping/hybrid vaping or smoking material. Therefore, depending on whether you use the VPs, CS, or you just wand to use it to light up conventional materials you should choose the relative battery: Table.1 battery selection table Battery type...

  • Page 3: How It Works

    (even with one charge); thus, there is a risk that the batteries may catch fire and even explode. For the implementation of the heating mechanisms, ANEL may use bodies of conventional smokers from different manufacturers whose external appearance may differ.

  • Page 4: Battery Connection - Device Initiation

    • Purchase the appropriate battery according to the battery selection table 1 • Purchase the ANEL vapor production material - Vapor Pads (VPs) AN1040VAP Α1. Filling with VPs Ensure the battery is disconnected. Ensure the resistance is cold and clean.

  • Page 5: A5. When You Have Finish Working With Vp

    A5. When you have finish working with VP Disconnect the battery adapter from the resistance adapter. Allow the device to rest on a horizontal fireproof surface. The device will stop producing vaporing in 1-2’ and will completely turn off in 5-10’. Ensure that the device has turned off completely and is cold.

  • Page 6: Shake The Device Gently Every 5'-10' To Mix The Pellets Inside

    Shake the device gently every 5'-10' to mix the pellets inside. Do not leave the device idle - without stirring/blowing - for more than 30'. If you are not going to use the device for >30', disconnect the battery. Do not use a newly charged battery with used CS. If you have to change the battery you have to replace the CS with new.

  • Page 7: C2. Ignition

    (9). If necessary, replace the fuse. If the problem continues, contact ANEL or the reseller.

  • Page 8: Instructions For Safe Use

    • In the event that you have followed the preparation instructions (battery charging and testing, resistance operation), but vapor-smoke is not produced, contact the ANEL’s technical support department or your reseller. • The device is not waterproof; it is not allowed to come into contact with water. If it gets wet, blow with compressed air in all places, open the fuse box, remove the fuse, and blow there too.

  • Page 9: Safety Information

    Safety information To prevent any injury to yourself or others and to not damage your device, read the information that follows before using the device. Warning: Prevent electric shock, fire, and explosion. Do not use power cable or adapters that are damaged, or loose electrical sockets. Do not touch power cables with wet hands and do not disconnect the charger by pulling the cord.
  • Page 10 CAUTION: If the cable is damaged or destroyed, do not attempt to start the device or to repair the cable. Contact the reseller or the manufacturer. Protect the device, batteries, and chargers from damage • Avoid exposing the device and the batteries to extremely low or extremely high temperatures. •...

  • Page 11: Table Of Contents

    Table of Contents Instructions for use and maintenance ..........................1 Electric heated hybrid vaporizer/smoker ........................1 Types: ANELVPSM-01ST / ANELVPSM-02ST / ANELVPSM-03ST/ANELVPSM-04ST............1 Applications ..................................1 Device description ................................1 Accessories ................................1 How to choose a battery: ............................2 How to choose a charger: ............................
  • Page 12 Heating chamber ............................... 7 Fuse replacement:..............................7 Instructions for safe use ..............................8 Safety information ................................9...
