DOD Technologies EC20x Operating Manual

Electrochemical gas detector cabinet
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
EC20x
Electrochemical Gas Detector Cabinet
Operating Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EC20x and is the answer not in the manual?

Questions and answers

Related Manuals for DOD Technologies EC20x

Summary of Contents for DOD Technologies EC20x

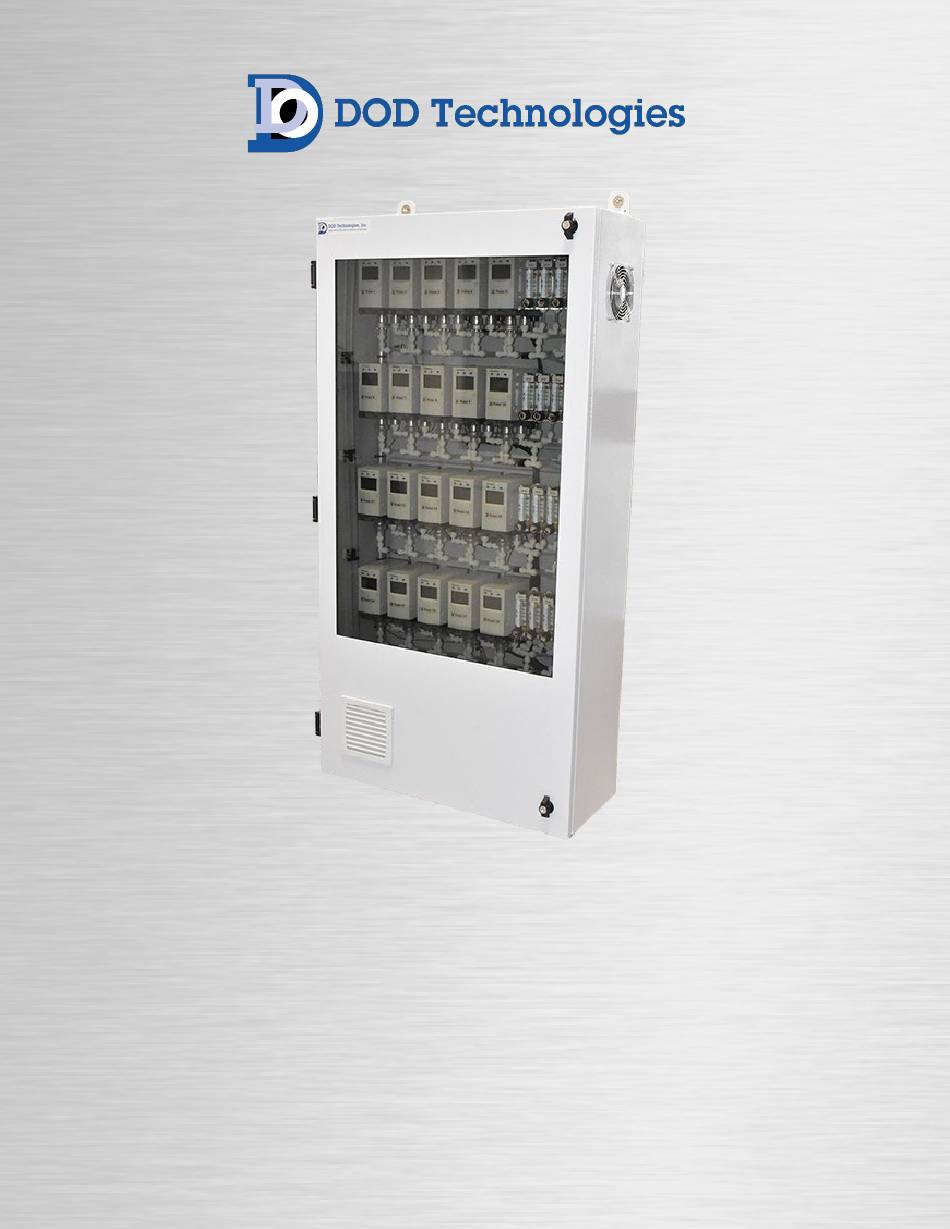

  • Page 1 EC20x Electrochemical Gas Detector Cabinet Operating Manual...
  • Page 2 EC20x Cabinet Operating Manual  DOD Technologies, Inc. 675 Industrial Drive Bldg. A. Cary, IL 60013 solutions@dodtec.com Phone 815.788.5200 • Fax 815.788.5300 DODtec.com DODtec.com DC-ITD-EC20xMAN01_A REV 12/21/2022 815-788-5200...

  • Page 3: Chapter 1 - Overview

    Form C (NO, NC, COM) output relay (one output relay for each primary pump). The EC20x also has a redundant power supply in case of failure and (2) Form C relays to notify the user in the event of a failure.

  • Page 4: Chapter 2 - Features

    EC20x Cabinet Operating Manual Chapter 2 – Features 2.1 External Layout Electrical Wiring & Sample Fan Exhaust Tubing Ports Cabinet Window Keyed Door Access Air Filter DODtec.com DC-ITD-EC20xMAN01_A REV 12/21/2022 815-788-5200...

  • Page 5: External Dimensions

    EC20x Cabinet Operating Manual 2.2 External Dimensions DODtec.com DC-ITD-EC20xMAN01_A REV 12/21/2022 815-788-5200...

  • Page 6: Wiring Diagrams

    EC20x Cabinet Operating Manual 2.3 Wiring Diagrams DODtec.com DC-ITD-EC20xMAN01_A REV 12/21/2022 815-788-5200...
  • Page 7 EC20x Cabinet Operating Manual DODtec.com DC-ITD-EC20xMAN01_A REV 12/21/2022 815-788-5200...

  • Page 8: Chapter 3 - Maintenance Alarms

    3.1 Vacuum Pumps with Form C Relays The EC20x utilizes primary and redundant vacuum pumps with Form C Relays: Pump 1 primary for points 1-10 •...
  • Page 9 EC20x Cabinet Operating Manual 3.2 Normal Operation of Form C Relays for Maintenance Alarms 3.2.1 Vacuum Pump PUMP1FAIL Form C Relay The Form C relay LED indicator is OFF under normal operation. Meaning the main vacuum pump is running the system. The relay is under the NC (normally closed contact position). Also note the Latching relay PUMP 1 RED LED is ON.
  • Page 10 EC20x Cabinet Operating Manual 3.2.2 Vacuum Pump PUMP3FAIL Form C Relay The Form C Relay LED indicator is OFF under normal operation. This indicates the primary vacuum pump is running the system. The relay is under the NC (normally closed contact position). Also note the Latching relay PUMP 3 RED LED is ON.
  • Page 11 EC20x Cabinet Operating Manual 3.2.3 Power Supply Maintenance Alarm P/S 1 FAIL The Form C Relay LED indicator is ON under normal operation. This indicates the main power supply is running the system. The relay is under the NO (normally open contact position). Also note the redundancy module LED1 and P/S 1 DC OK green LEDs are ON.
  • Page 12 EC20x Cabinet Operating Manual 3.2.4 Power Supply Maintenance Alarm P/S 2 FAIL The Form C Relay LED indicator is ON under normal operation. This indicates the main power supply is running the system. The relay is under the NO (normally open contact position). Also note the redundancy module LED2 and P/S 2 DC OK green LEDs are ON.
  • Page 13 EC20x Cabinet Operating Manual 3.3 4-20mA EC20x Centralized Option (2-910-003) When this option is installed, each extractive gas detector unit has the 4-20mA pre-wired to terminal blocks. Those pre-wired to terminal blocks are numbered according to the point. Figure 3.3 DODtec.com...

  • Page 14: Chapter 4 - Ec20X Modbus Interface Option For Cosmos Ps-7-M

    EC20x Cabinet Operating Manual Chapter 4 – EC20x Modbus Interface Option for Cosmos PS-7-M Optional Modbus communication protocol for New Cosmos PS-7-M units provide a remote means to Please contact us for info regarding other compatible gas detector units. monitor the entire system. * 4.1 EC20x Modbus Interface (Option 2-910-002)

  • Page 15: Dip Switch Setup

    EC20x Cabinet Operating Manual 4.2 DIP Switch Setup MODE DIP SWITCH: Set Far right dip switched as follows below, Left switch off, and Right switch ON. Set the IP address type: “DY” or “ST” Select the IP address type between “Dynamic” and “Static” by using the IP address type switch.
  • Page 16 EC20x Cabinet Operating Manual Positions 1-8 Dip Switches should be set from right to left as they are defined in the table below. DODtec.com DC-ITD-EC20xMAN01_A REV 12/21/2022 815-788-5200...

  • Page 17: Status Leds

    EC20x Cabinet Operating Manual 4.3 Status LEDs The status LEDs located on the base unit indicate the LAN cable and communication statuses. DODtec.com DC-ITD-EC20xMAN01_A REV 12/21/2022 815-788-5200...

  • Page 18: Chapter 5 - Ec20X Modbus/Tcp Operation

    EC20x Cabinet Operating Manual Chapter 5 – EC20x Modbus/TCP Operation 1. Network access for MODBUS/TCP and Remote viewing on the EC20x is provided through LAN port 2 on the Beckhoff IPC inside the unit as shown below. 2. The default IP Address on port 2 is 192.168.16.212 3.
  • Page 19 EC20x Cabinet Operating Manual From here you can change the IP shown below as X1 which should have the default IP address. Do not change the port X2 with IP 192.168.100.55, This is the port used to communicate to the sensors.
  • Page 20 EC20x Cabinet Operating Manual 4. In order to disable a sensor, Click on the gray disable button on the bottom half of each icon. An example of disabled sensors is shown below with sensors 1, 3 and 5 being disabled.

  • Page 21: Chapter 6 - Service & Support

    Cary, IL 60013 E-mail us at: solutions@dodtec.com Visit our website: DODtec.com For permanent discontinuation: Discontinued units may be eligible for recycling. Please contact DOD Technologies for additional information and instructions for arranging safe return of your equipment. DODtec.com DC-ITD-EC20xMAN01_A REV 12/21/2022 815-788-5200...

  • Page 22: Appendix A - Ec20X Modbus Tcp Server Settings

    EC20x Cabinet Operating Manual Appendix A – EC20x Modbus TCP Server Settings Default IP: 192.168.16.212 Default Subnet: 255.255.255.0 Default Gateway: 192.168.16.1 EC20x Type Read/Write Data Description Notes # Words Address 40001 Real Read PLC Version 40003 Real Read Application Version...

  • Page 23: Appendix B - New Cosmos Ps-7-M Addressing

    EC20x Cabinet Operating Manual Appendix B – New Cosmos PS-7-M Addressing Note: Replace XX with the position of the installed sensor (01-20). Example: Sensor 5 flowrate address = 40501 Note: IP Addresses: 192.168.100.XX, with XX being the position of the installed sensor...
  • Page 24 EC20x Cabinet Operating Manual 4XX41 Word Write Set Zero Suppression 40056 4XX42 Word Write Set Calibration Gas Concentration 40057 … 0: Disabled 4XX60 Word Read Enable Status 1: Enabled 4XX61 Word Read Communication Fail Count 0: Normal 4XX62 Word Read...

  • Page 25: Appendix C - Gastron Gtd-5000 Addressing

    EC20x Cabinet Operating Manual Appendix C – Gastron GTD-5000 Addressing Note: Replace XX with the position of the installed sensor (01-20). Note: IP Addresses: 192.168.100.XX, with XX being the position of the installed sensor (01-20) EC20x Read/ Gastron Type Data Description...
