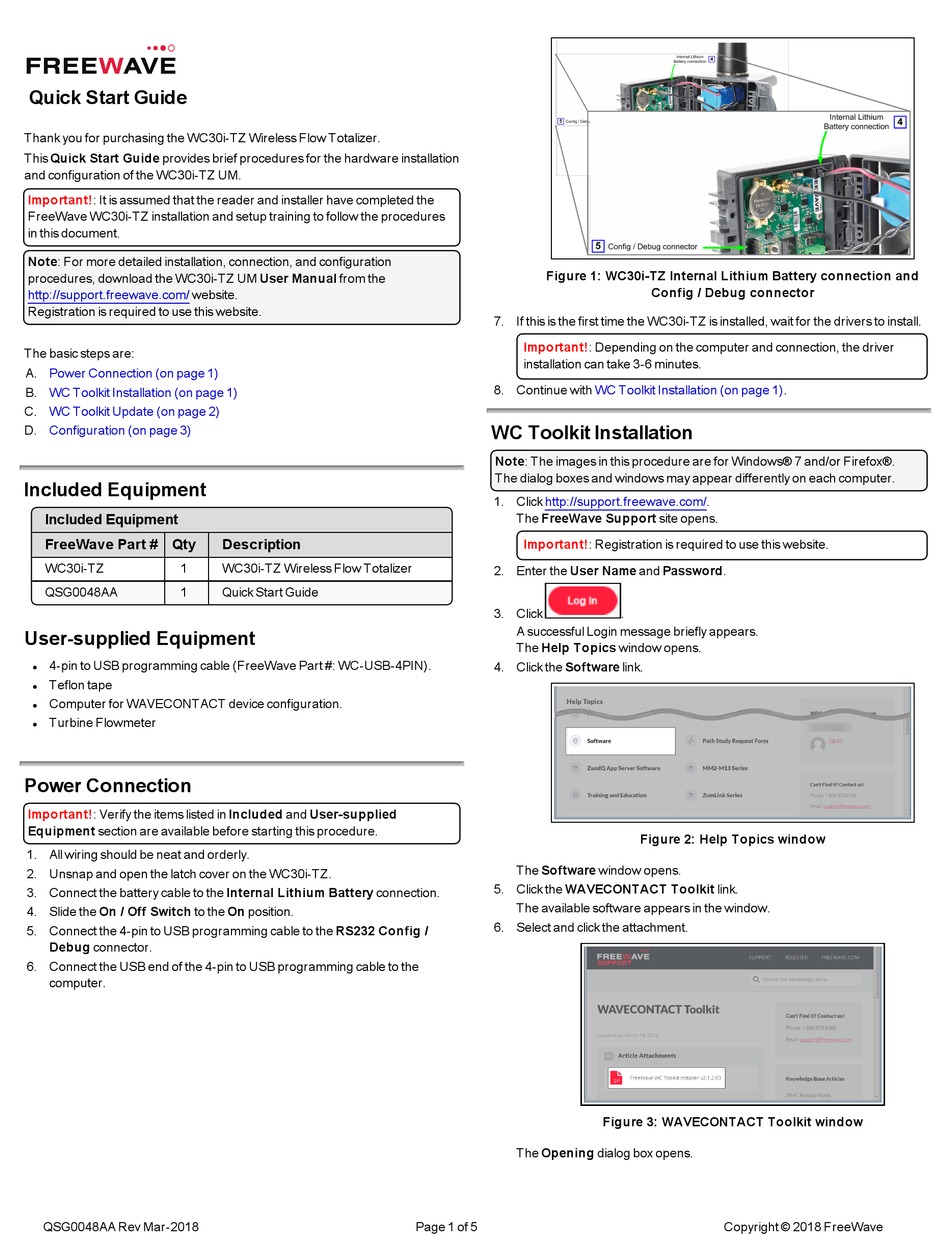

Quick Start Guide
Thank you for purchasing the WC30i-TZ Wireless Flow Totalizer.
This Quick Start Guide provides brief procedures for the hardware installation
and configuration of the WC30i-TZ UM.
Important!: It is assumed that the reader and installer have completed the
FreeWave WC30i-TZ installation and setup training to follow the procedures
in this document.
Note: For more detailed installation, connection, and configuration
procedures, download the WC30i-TZ UM User Manual from the
http://support.freewave.com/ website.
Registration is required to use this website.
The basic steps are:
A. Power Connection (on page 1)
B. WC Toolkit Installation (on page 1)
C. WC Toolkit Update (on page 2)
D. Configuration (on page 3)
Included Equipment
Included Equipment
FreeWave Part # Qty
WC30i-TZ 1
QSG0048AA 1
User-supplied Equipment
4-pin to USB programming cable (FreeWave Part #: WC-USB-4PIN).
l
Teflon tape
l
Computer for WAVECONTACT device configuration.
l
Turbine Flowmeter
l
Power Connection
Important!: Verify the items listed in Included and User-supplied
Equipment section are available before starting this procedure.
1. All wiring should be neat and orderly.
2. Unsnap and open the latch cover on the WC30i-TZ.
3. Connect the battery cable to the Internal Lithium Battery connection.
4. Slide the On / Off Switch to the On position.
5. Connect the 4-pin to USB programming cable to the RS232 Config /
Debug connector.
6. Connect the USB end of the 4-pin to USB programming cable to the
computer.
QSG0048AA Rev Mar-2018
Description
WC30i-TZ Wireless Flow Totalizer
Quick Start Guide
Figure 1: WC30i-TZ Internal Lithium Battery connection and
7. If this is the first time the WC30i-TZ is installed, wait for the drivers to install.
Important!: Depending on the computer and connection, the driver
installation can take 3-6 minutes.
8. Continue with WC Toolkit Installation (on page
WC Toolkit Installation
Note: The images in this procedure are for Windows® 7 and/or Firefox®.
The dialog boxes and windows may appear differently on each computer.
1. Click http://support.freewave.com/.
The FreeWave Support site opens.
Important!: Registration is required to use this website.
2. Enter the User Name and Password.
3. Click
A successful Login message briefly appears.
The Help Topics window opens.
4. Click the Software link.
The Software window opens.
5. Click the WAVECONTACT Toolkit link.
The available software appears in the window.
6. Select and click the attachment.
The Opening dialog box opens.
Page 1 of 5
Config / Debug connector
1).
.
Figure 2: Help Topics window
Figure 3: WAVECONTACT Toolkit window
