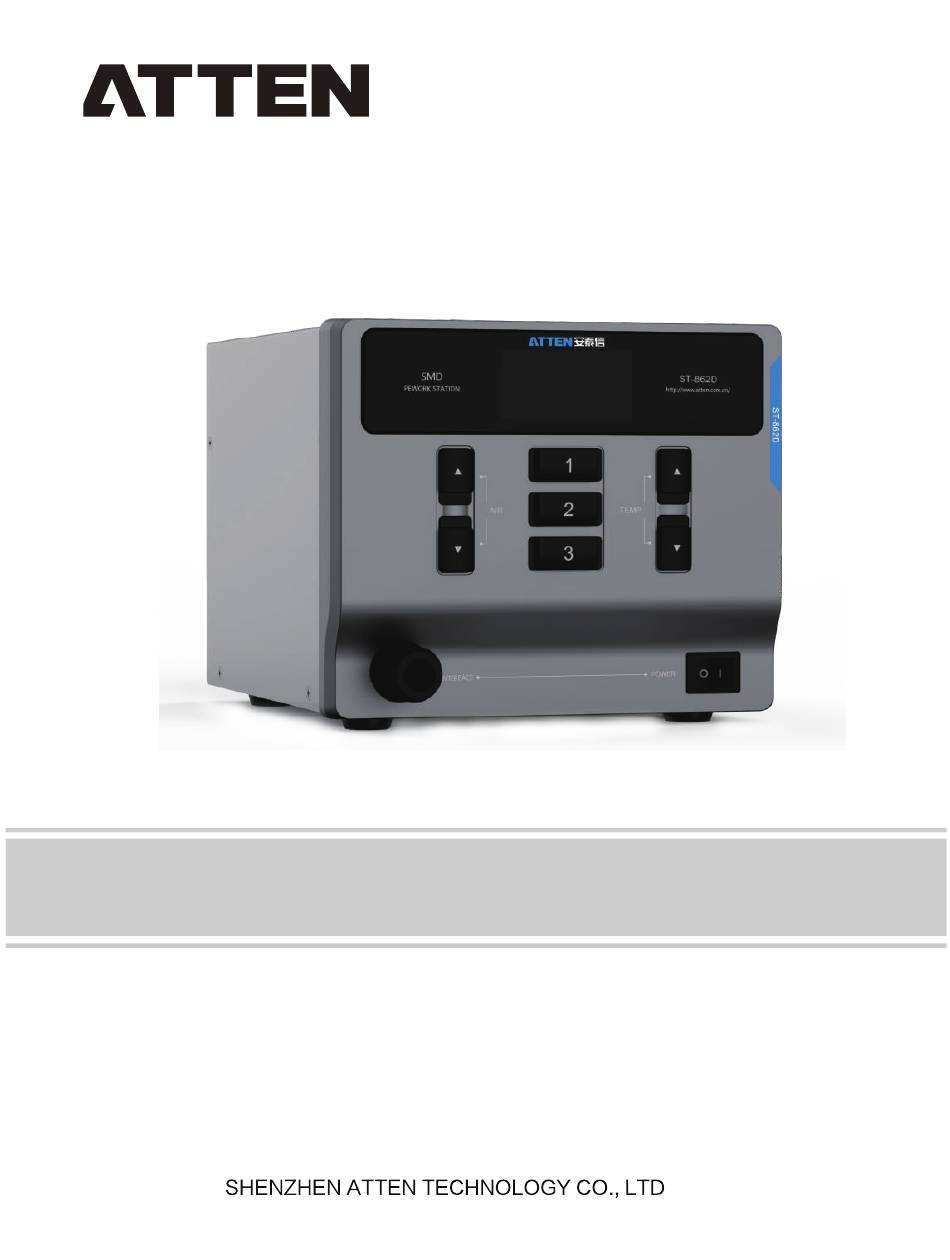

- Page 1 ST-862D Hot Air Station User Manual...
-
Page 3: Schematic Diagram Of The Whole Equipment

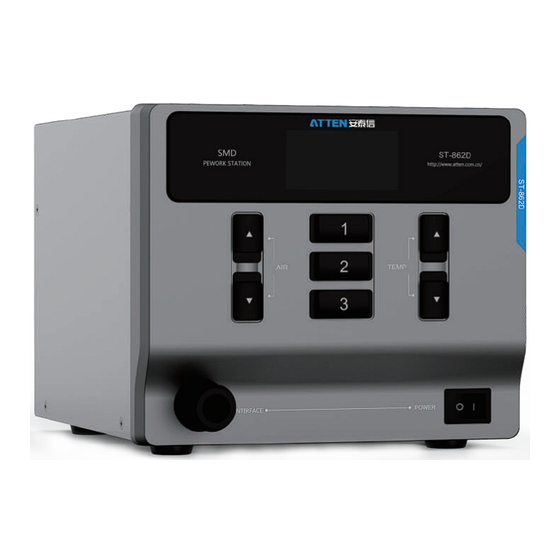

Schematic Diagram of the Whole Equipment ST-862D Shortcut Key 1/ Menu Key/ Menu Turn-up Key Temp Plus Key Blowing Plus Key Blowing Minus Key Temp Minus Key Shortcut Key 1/ Shortcut Key 2/ Menu Exit Key Menu Key/ Menu Turn-down Key... -
Page 4: Technical Data
Technical Data Model: ST-862D Voltage AC230V±10% 50Hz (110V±10% 60Hz Optional) Power 1000W Fuse type T6.3A T10A Temperature range: ±35℃ Temperature accuracy Temperature unit °C/°F (default °C) 120L/min(Max) 30L/min(Min) Air flow Standby heater Support cooling function Heating element remove detection; heating element open Abnormal detection of circuit detection;... -
Page 5: Lcd Description
7. Air flow percentage 8. Temperature unit Boot-up Screen After the station has been switched on, the display will turn on and show the system version number for one second before switching to the normal display. (Means ST-862D V0.1 version) - Page 6 Settings 1. Normal display (FIG. 1-1) shows real temperature is 300°C, the temperature setting value is locked, the air volume is 50% and the heating power value is 3 bars. REAL 30 0 FIG. 1-1 2. Display Of Hot Air Gun Status (FIG.
-
Page 7: Menu Mode
Saving and Retrieving Shortcut Temperature(User define) 1. Retrieving shortcut temperature: It can rapidly retrieving preset temperature and blowing restored in Button “1”/“2”/“3” by pressing Button “1”/“2”/“3”.(FIG. 1-6) when working 2. Saving shortcut temperature: It can save the user-define temperature and blowing in Button “1”/ “2”/ “3”... - Page 8 4. Switching Temperature Unit - C- - F - C- F C- F FIG. 1-10 FIG. 1-11 5. Temperature Calibration Under menu CAL mode, press “▲”or“▼”key to enable temperature calibration function, whose calibration range is -50℃~ 50℃(-90℉~90℉). Calibration value will be negative as actual-measured temperature is lower than setting temperature;...
-
Page 9: Care And Maintenance
7. Restore Factory Setting In FAC menu ,press “▲”and“▼”keys to adjust ON/OFF. Press the [2] key when the menu is ON, then return to the normal operation interface to restore factory setting REAL 0F F REAL F AC F AC FIG. - Page 20 User Manual of APS15-3A Maintenance Power Supply...
-
Page 21: Copyright Information
The user shall follow the following basic precautions to avoid electric shock or personal injury or fire and other hazards when using this product. To ensure personal safety, the user shall use the parts and accessories recognized or recommended by ATTEN, otherwise it will cause serious consequence! - Page 22 This manual is sorted, compiled and issued by SHENZHEN ATTEN TECHNOLOGY CO., LTD according to the latest product characteristics. The company will make the subsequent changes to product and manual without...
-
Page 23: Product Introduction
Product Introduction APS series power supply is designed for the needs of electronic training schools, communication maintenance technicians and related engineering research and development personnel. The current best-stability series voltage stabilization scheme is adopted for this product, and the digital MCU chip is used for control. -
Page 24: Front Panel Diagram
Recovery time: ≤ 120 μs (50% load variation, minimum load of 0.5A). Ripple and noise: ≤ 0.5mVrms (5Hz~1MHz) (rated current ≤ 1A). Ripple and noise: ≤ 1.0mVrmss (5Hz~1MHz) (rated current >1A). Temperature coefficient: ≤ 300ppm/ Read-back display: Display: double 3-bit LCD with blue background and white words (main voltage and USB current display) Accuracy: LCD header: ±(0.5% reading + 2 bits);... - Page 25 Operating Instructions 1. Precautions before use AC power input: AC power input shall be within the range of rated voltage ±10% 50/60hz. Warning: the protective conductor of the power line must be earthed to avoid electric shock. Instrument installation: Avoid using this power supply in the environment above 40℃.
- Page 26 4. Voltage range setting 1. When the voltage is switched to the position 5V, the host provides the maximum limited voltage output of about 5.1V. 2. When the voltage is switched to the position 5V, the host provides the maximum limited voltage output of about 15.5V. 5.
-
Page 27: Product Warranty
In case of product failure, please send the product to the designated maintenance point for maintenance. Unauthorized maintenance points and personnel shall not maintain the product. After-sales Service After-sales service hotline: (+86)0755-23408704 For more contact information, visit the official website www.atten.com.cn. After-sales Information...
