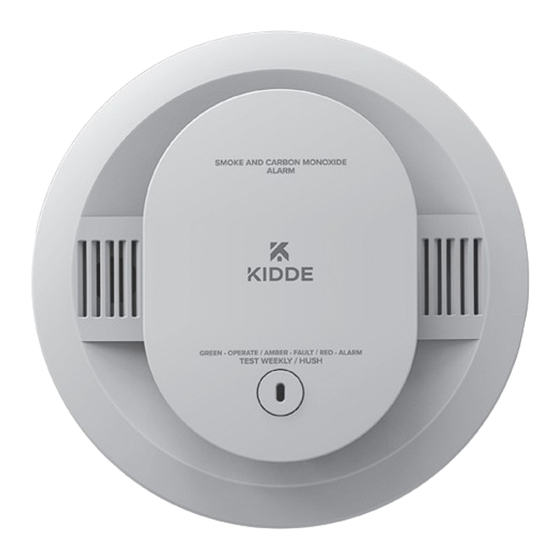

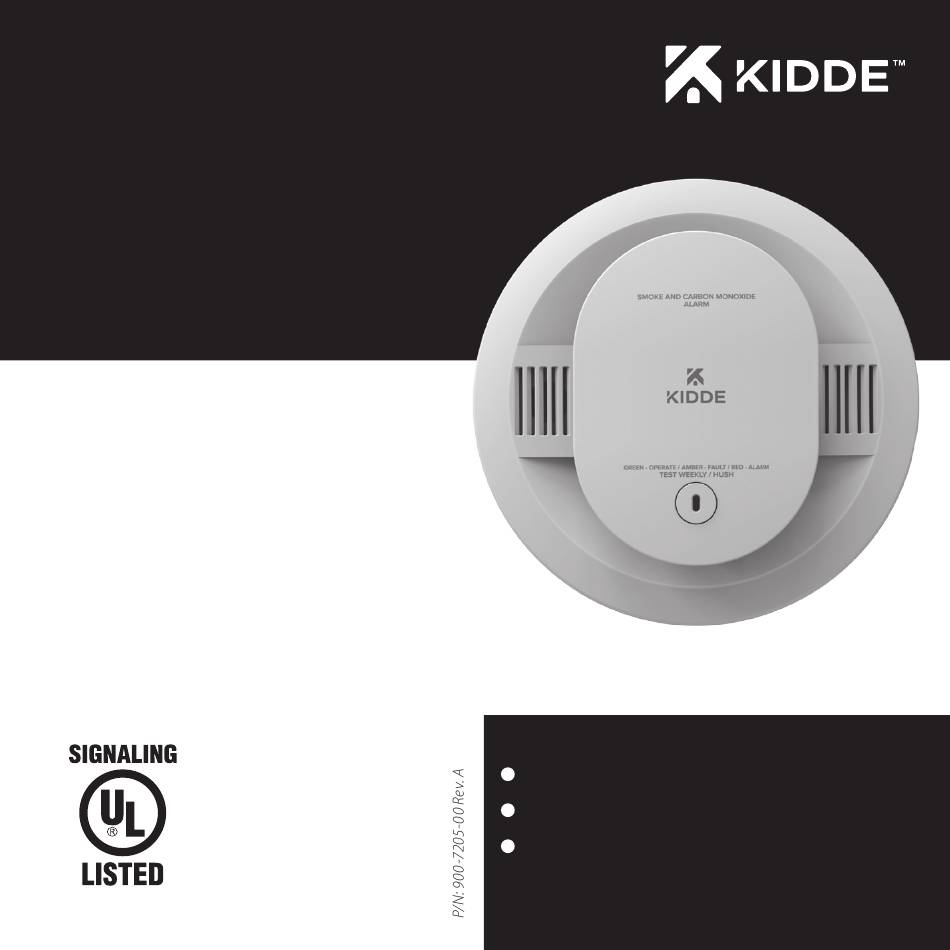

- Page 1 User Guide Combination Photoelectric Smoke & Carbon Monoxide Alarm with Voice Model 900-CUDR-V COMBINATION ALARM AA BATTERY SELF-TESTING (SEE SECTION 10) VOICE MESSAGE SYSTEM...
- Page 2 Thank You for Purchasing this Kidde Alarm This model is powered by two replaceable AA batteries. It also contains a voice message system and Hush to temporarily silence nuisance alarms, and “self-testing” features (see section 10). Teach children how to respond to the alarm and that they should never play with the unit. This alarm is a multi-criteria device designed to detect both smoke and carbon monoxide from any source of combustion in a residential environment.
-
Page 3: Table Of Contents
Contents 1. Smoke Alarm: What To Do When The Alarm Sounds ... . 4 2. Carbon Monoxide Alarm: What To Do When The Alarm Sounds ..5 3. -
Page 4: Smoke Alarm: What To Do When The Alarm Sounds
1. Smoke Alarm: What To Do When The Alarm Sounds The smoke alarm pattern is three long beeps with voice “Fire!,” a 1.5 second pause, and three long beeps repeating. The red LED blinks in time with the alarm pattern. The smoke alarm takes precedence when both smoke and carbon monoxide are present. -
Page 5: Carbon Monoxide Alarm: What To Do When The Alarm Sounds
2. Carbon Monoxide Alarm: What To Do When The Alarm Sounds The carbon monoxide (CO) alarm pattern is four quick beeps with voice “Warning! Carbon Monoxide” repeating every 5 seconds. The red LED blinks in time with the alarm pattern. After 4 minutes in CO alarm the alarm pattern will only occur every 60s. -
Page 6: Other Alarm Visual And Audible Indicators
3. Other Alarm Visual And Audible Indicators Operational Mode Visual Indications Audible Indications Action/Note Normal (standby) Green LED blinks approx every 60 sec. Test (button press when Red LED blinks in time with • Single beep. Perform button press once a week to no alarm condition is alarm pattern. -
Page 7: Troubleshooting Guide
4. Troubleshooting Guide If you require further information please contact Product Support at 1-800-880-6788 or write us at: Kidde, 1016 Corporate Park Drive, Mebane, NC 27302. Our internet address is www.kidde.com. Trouble Condition Visual Indications Audible Indications Action Low Battery Amber LED blinks every Chirp and voice “Low Battery”... -
Page 8: Introduction, Product Features And Specifications
5. Introduction, Product Features And Specifications Introduction This alarm detects products of combustion using a photoelectric sensor and carbon monoxide using an electro- chemical cell. Many times throughout this User Guide, we will refer to Carbon Monoxide as “CO.” Ten (10) years after the unit was installed, this unit will automatically alert you that it is time to replace the unit. This is called “End of Unit Life”... -
Page 9: Limitations Of Smoke And Carbon Monoxide Alarms
6. Limitations Of Smoke And Carbon Monoxide Alarms WARNING: PLEASE REAd CAREFULLY ANd THOROUGHLY • Life safety from fire in residential occupancies is based primarily on early notification to occupants of the need to escape, followed by the appropriate egress actions by those occupants. •... - Page 10 WARNING: PLEASE REAd CAREFULLY ANd THOROUGHLY • IMPORTANT: This alarm is designed to detect carbon monoxide gas from ANY source of combustion. It is NOT designed to detect any other gas. CAUTION: This alarm will only indicate the presence of carbon monoxide gas at the sensor. Carbon monoxide gas may be present in other areas.
-
Page 11: Recommended Locations For Smoke And Carbon Monoxide Alarms
7. Recommended Locations For Smoke And Carbon Monoxide Alarms • Locate smoke alarms in all sleeping areas. Try to monitor the exit path as the bedrooms are usually farthest from the exit. If more than one sleeping area exists, locate additional alarms in each sleeping area. •... - Page 12 ke Alarms for Required Detection are to the closest edge ke Alarms for Additional Detection NFPA 72 states: “Smoke alarms in rooms with ceiling slopes greater than 1 ft in 8 ft (0.3m in 2.4 m) horizontally of the alarm. within 6 feet of appliances shall be located on the high side of the room.”...
- Page 13 • For mobile home installation, select locations carefully to avoid thermal barriers that may form at the ceiling. For more details, see MOBILE HOME INSTALLATION section. • When mounting the alarm on the wall, use an inside wall with the top edge of the alarm at a maximum of 12”...
-
Page 14: Locations To Avoid
8. Locations To Avoid (See Figures 7-A, 7-B, & 7-C for recommended locations) • In the garage. Products of combustion are present when you start your automobile. • Normal cooking may cause nuisance alarms. If a kitchen alarm is desired, it should have an alarm silence feature and should not be installed within 6 ft of cooking appliances. -
Page 15: Installation And Activation
Confirm the battery activation beep and voice. • Kidde alarms are not designed, agency tested or certified for recessed mounting and should not be installed in this manner. Recessed mounting impedes smoke entry into the smoke chamber, which may prevent the alarm from sounding in a timely manner. -
Page 16: Operation And Testing
10. Operation And Testing Operation The alarm is operating once it is activated and CO ALARM SENSOR RESPONSE TIMES testing is complete (see “TESTING” below). When At 70 PPM, the unit must alarm within 60-240 minutes. products of combustion (smoke or CO) are sensed, the unit sounds a loud alarm with voice messages. -
Page 17: Recognizing Nuisance Alarms
11. Recognizing Nuisance Alarms Smoke Nuisance HUSH : If you know why the alarm is sounding, and you can verify that it is not a life threatening situation, you can push the button on the initiating unit to silence the alarm for 8-10 minutes. If the smoke is not too dense, that unit will silence. -
Page 18: Batteries
12. Batteries This alarm is powered by two replaceable AA batteries. NOTE: Constant exposure to high or low humidity or temperatures may reduce battery life. WARNING: THE ALARM IS SEALEd ANd THE COVER IS NOT REMOVABLE! Low Battery This alarm is equipped with a low battery monitor circuit. If the battery capacity is nearing the point where it can no longer provide adequate power for all alarm functions, the low battery condition will occur. -
Page 19: General Carbon Monoxide (Co) Information
13. General Carbon Monoxide (CO) Information Carbon monoxide (CO) is a colorless, odorless, and tasteless poison gas that can be fatal when inhaled. CO inhib- its the blood’s capacity to carry oxygen. Possible Sources of CO Inside your home, appliances used for heating and cooking are the most likely sources of CO. Vehicles and other combustion engines running in an attached garage and using a charcoal/gas grill or hibachi in an enclosed area are all possible sources of CO. - Page 20 Some contractors may charge for this service. It’s advisable to inquire about any applicable fees prior to having the service performed. Kidde will not pay for, or reimburse the owner or user of this product, for any repair or dispatch calls related to the alarm sounding.
-
Page 21: Cleaning Your Alarm
14. Cleaning Your Alarm Your Alarm Should be Cleaned at Least Once a Year You can clean the interior of your alarm (sensing chamber) by using compressed air or a vacuum cleaner hose and blowing or vacuuming through the openings around the perimeter of the alarm. The outside of the alarm can be wiped with a damp cloth. -
Page 22: Good Safety Habits
15. Good Safety Habits develop and Practice a Plan of Escape Prepare and practice a home escape plan twice a year, including drills at night. Know two ways out of every room (door & window) and identify a meeting place outside the home where everyone will gather once they have exited the residence. - Page 23 Fire Prevention Never smoke in bed or leave cooking food unattended. Teach children never to play with matches or lighters! Train everyone in the home to recognize the smoke alarm pattern and to leave the home using their escape plan when it’s heard. Know how to do “Stop, Drop and Roll” if clothes catch on fire, and how to crawl low under smoke.
- Page 24 California State Fire Marshal Early warning fire detection is best achieved by the installation of fire detection equipment in all rooms and areas of the household as follows: A smoke alarm installed in each separate sleeping area (in the vicinity, but outside the bedrooms), heat or smoke detectors in the living rooms, dining rooms, bedrooms, kitchens, hallways, attics, furnace rooms, closets, utility and storage rooms, basements and attached garages.
-
Page 25: Service And Warranty
The obligation of Kidde under this warranty is limited to repairing or replacing the alarm or any part which we find to be defec-... - Page 26 QUESTIONS OR FOR MORE INFORMATION Call Kidde Product Support line at 1-800-880-6788 or contact us at www.kidde.com Kidde 1016 Corporate Park Drive, Mebane, NC 27302 A Carrier Company ©2023 Carrier. All Rights Reserved.
Need help?
Do you have a question about the 900-CUDR-V and is the answer not in the manual?
Questions and answers
What is 1 red flash & 3 fast beeps every 60 sec? Once in a while it will flash green instead of red. I can't see a pattern to color.
For the Kidde 900-CUDR-V:
- 1 red flash and 3 fast beeps every 60 seconds indicate a fault, such as a photo sensor fault, CO sensor fault, or memory fault.
- A green flash approximately every 60 seconds indicates normal standby operation.
