1. Overview

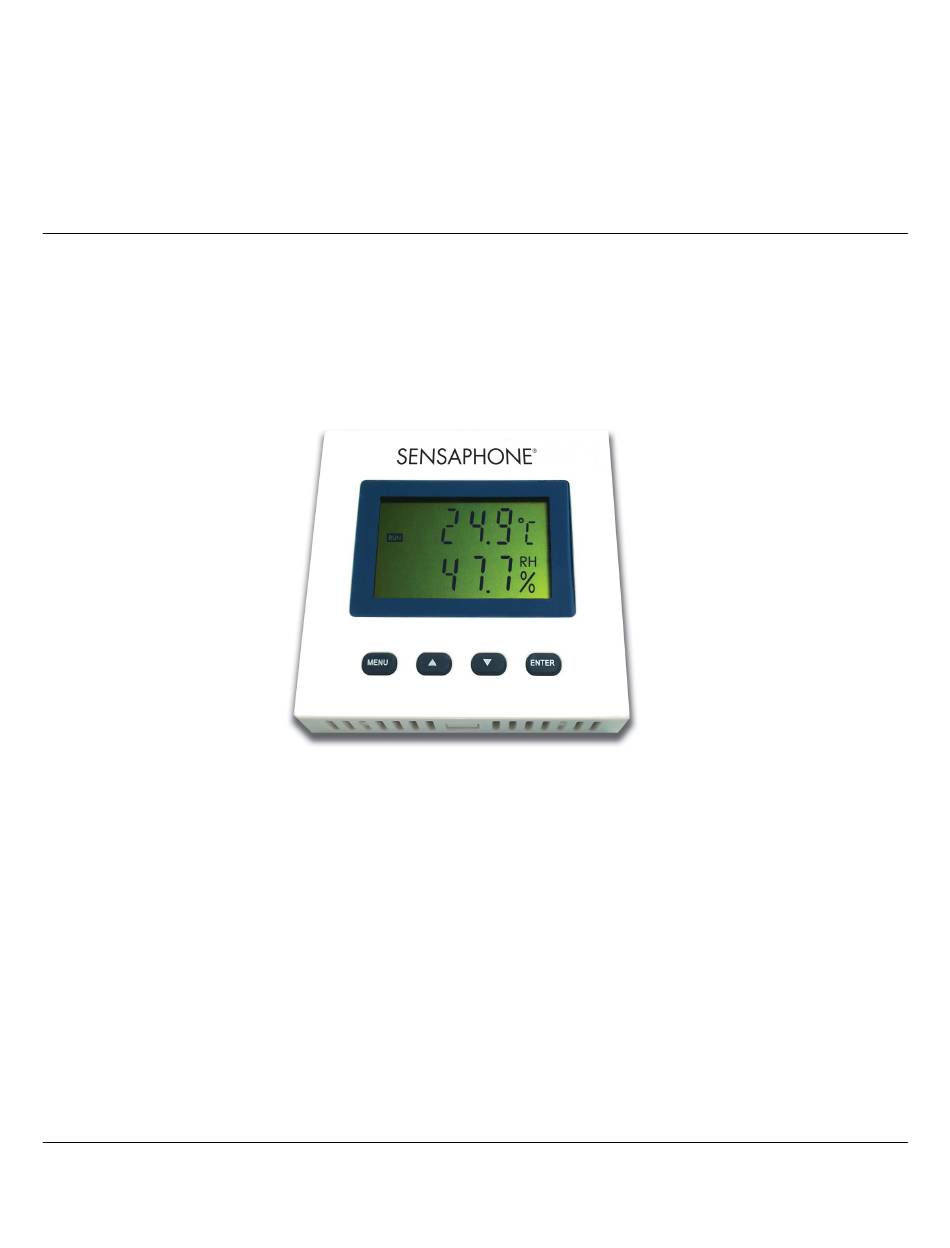

FGD-0108 temperature and humidity sensor is compact and user friendly. It measures and
displays both ambient temperature and relative humidity at the same time.
Main Features:
1. 12V DC (5-15V DC) Main Power Input
2. Temperature Sensing Range: -20℃ – 70℃ (-4℉– 158℉) (Accuracy: ± 0.5℃ at 25℃)
3. Humidity Sensing Range: 0 – 100% RH (Accuracy: ± 5% RH at 25℃)
4. Temperature Display Unit: Degree Celsius or Degree Fahrenheit
5. Normally Open (NO) Solid State Output
6. Dimension: 80 x 80 x 28mm
7. Weight: 220g
8. Material: ABS
FGD-0108
Quick Installation Guide
Page 1
Advertisement
Table of Contents
Related Manuals for Sensaphone FGD-0108
Summary of Contents for Sensaphone FGD-0108
- Page 1 Quick Installation Guide Informational Reference for Authorized Installers and Fitters 1. Overview FGD-0108 temperature and humidity sensor is compact and user friendly. It measures and displays both ambient temperature and relative humidity at the same time. Main Features: 1. 12V DC (5-15V DC) Main Power Input 2.
- Page 2 2. Wiring Connection 1: 12V DC+ 2: GND 3: Temperature NO 4: Temperature COM 5: Humidity NO 6: Humidity COM Page 2...
- Page 3 3.1 Configure High / Low Temperature Limit 1. Press and hold for 3 seconds MENU Set 35℃ 2. Use to set high temperature limit 3. Press to save, press to go to next page ENTER MENU Set 15℃ 4. Use to set low temperature limit 5.
- Page 4 3.4 Configure Temperature Display Unit ℃ / ℉ 1. Press and hold for 3 seconds ENTER Set ℉ Set ℃ 2. Press for Degree C / for Degree F 3. Press to save, press for 3 times to exit ENTER MENU 3.5 Configure Humidity Display RH.
