Temperature and Humidity Sensor
Informational Reference for Authorized Installers and Fitters
1. Overview

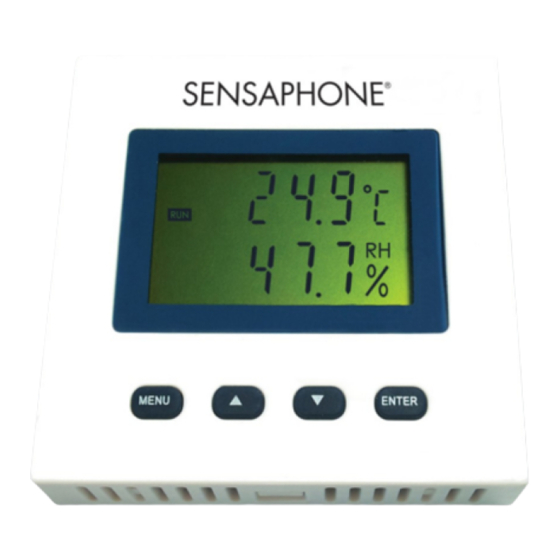

FGD-0109 temperature and humidity sensor is compact and user friendly. It measures and
displays both ambient temperature and relative humidity at the same time.
Main Features:
1. 12V DC (12-24V DC) Main Power Input
2. Temperature Sensing Range: 0℃ – 50℃ (-32℉– 122℉) (Accuracy: ± 0.5℃ at 25℃)
3. Humidity Sensing Range: 0 – 100% RH (Accuracy: ± 5% RH at 25℃)
4. Temperature Display Unit: Degree Celsius or Degree Fahrenheit
5. 4-20 mA Analog Output
6. Dimension: 80 x 80 x 28mm
7. Weight: 250g
8. Material: ABS
FGD-0109
Quick Installation Guide
Page 1
Advertisement
Table of Contents
Related Manuals for Sensaphone FGD-0109
Summary of Contents for Sensaphone FGD-0109
- Page 1 Quick Installation Guide Informational Reference for Authorized Installers and Fitters 1. Overview FGD-0109 temperature and humidity sensor is compact and user friendly. It measures and displays both ambient temperature and relative humidity at the same time. Main Features: 1. 12V DC (12-24V DC) Main Power Input 2.
- Page 2 2. Wiring Connection 4-20mA 4-20mA Input 2 Input 1 Temperature FGD-0109 12V DC Humidity 12V DC + Temperature Output Humidity Output Page 2...
- Page 3 3.1 Configure Temperature Display Unit ℃ / ℉ 1. Press and hold for 3 seconds ENTER Set ℃ Set ℉ 2. Press for Degree C / for Degree F 3. Press to save, press for 3 times to exit ENTER MENU 3.2 Configure Humidity Display RH.
