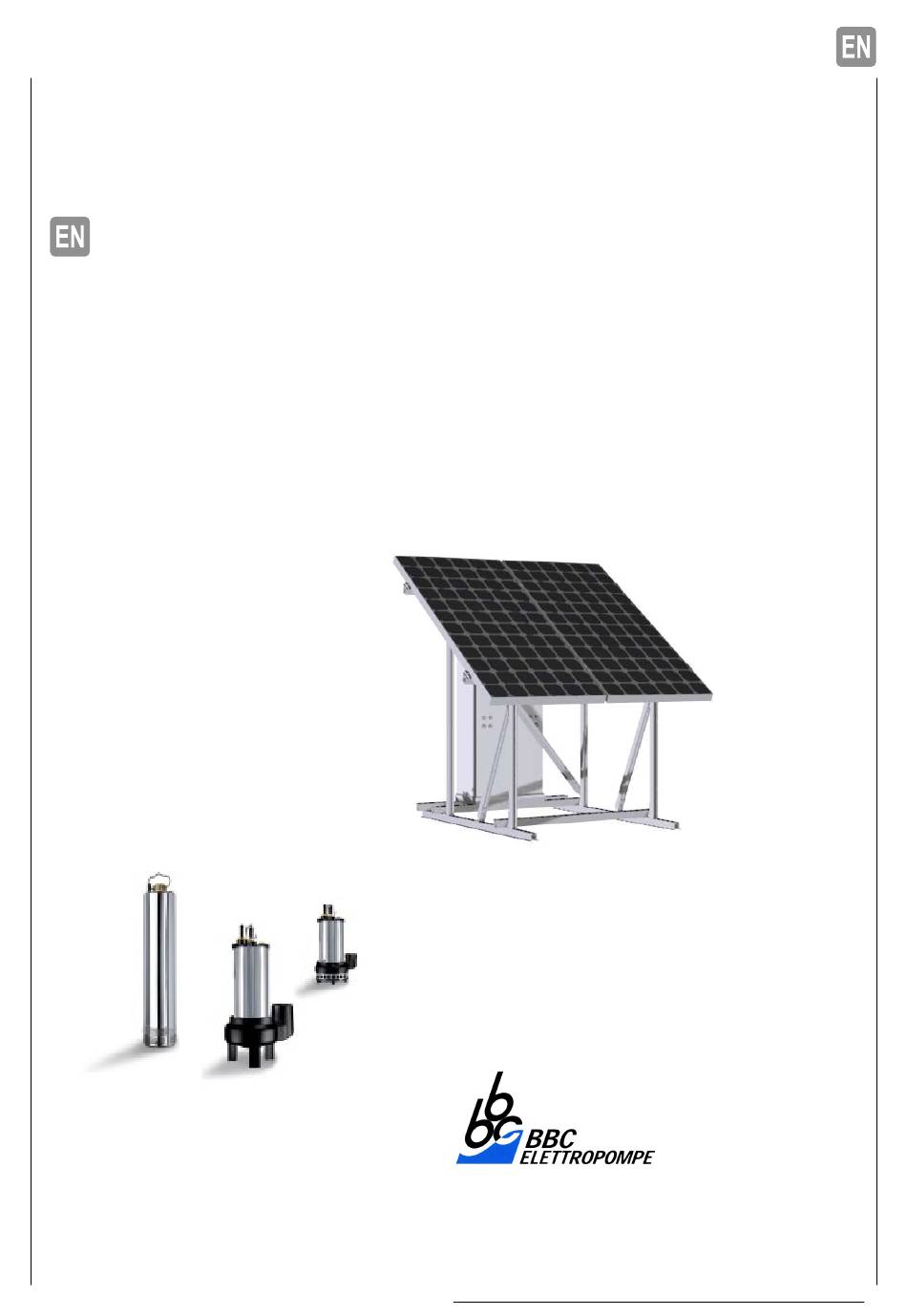

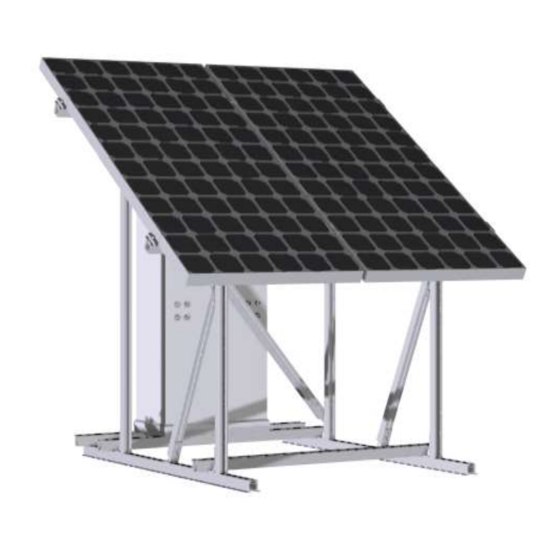

Photovoltaic pumping station ECOSOM
with facility for generating set and battery charger
INSTRUCTION AND
INSTALLATION MANUAL
ECOSOM 4/80
For electric pump type
SRF 4/80 DC 24 V
ECOSOM 320 - 290 - 262 - 190
For electric pumps
type
SEMISOM DC 24 V
Translation of the
"
Original
Instructions"
Via G. Di Vittorio, 9
61034 Fossombrone (PU) - Italy
Tel. +39 0721 716590
Fax +39 0721 716518
www.bbc.it
1
Advertisement
Table of Contents
Related Manuals for BBC Elettropompe ECOSOM 4/80
Summary of Contents for BBC Elettropompe ECOSOM 4/80
- Page 1 Photovoltaic pumping station ECOSOM with facility for generating set and battery charger INSTRUCTION AND INSTALLATION MANUAL ECOSOM 4/80 For electric pump type SRF 4/80 DC 24 V ECOSOM 320 - 290 - 262 - 190 For electric pumps type SEMISOM DC 24 V Translation of the “...
- Page 2 LIST OF THE REVIEWS OF THE INDEX MANUAL Part Page WARRANTY Code/Description Review No. Date SOME NOTES ABOUT THE USER’S MANUAL L17/5th ISSUE APRIL 2023 INTRODUCTION L17/4th ISSUE OCT. 2021 MANUFACTURER’S STATEMENT IDENTIFICATION OF THE UNIT GENERAL NOTES AT DELIVERY L17/3rd ISSUE JULY 2018 DESCRIPTION OF THE PUMPING UNIT...
-
Page 3: Warranty
WARRANTY SOME COMMENTS ABOUT THE USER’S MANUAL The 24 months warranty against manufacturing The User’s Manual is not an accessory of the defects is valid for any fault that may occur within Pumping station, but is an integral part of the 24 months from the date of delivery to the user. -
Page 4: Part 1 Preliminary Information
Safety Regulations, imply the non-validity of the Warranty. Please, remember that: The technical data are referred to the pumping station ECOSOM 4/80 and ECOSOM 320 - 290 - 262 - 190 ( 3 — ), draw- SEE PART... - Page 5 Maximum pump installation depth 20 m (ECOSOM 262, 265, 320, 190). Maximum pump installation depth 30 m (ECOSOM 4/80). Minimum and maximum operating temperature of the liquid pumped: - 0 / 35°C for limited use S2 (60 minutes) ECOSOM 262, 265, 320, 190);...
- Page 6 1.4.4 MAIN COMPONENTS OF THE PUMPING STATION ECOSOM Position Description Q.ty Position Description Q.ty Solar module 180W L Flat (±3%) L Profile=75cm Flat bracket L Profile=1.1m Middle Clip L Profile=72cm End Clip L Profile=1.24m Cabinet L Profile=1.44m Fixing nut M8 A4 L Profile=1.7m Square fixing clamp L Profile=1.5m...
-
Page 7: Part 2 Safety Prescriptions
PART 2 SAFETY PRESCRIPTIONS MECHANICAL MAINTENANCE OPERATOR Qualified technician able to manage the machine in normal conditions. He/she is able to operate on While consulting this user’s manual you will find all mechanical parts so to carry out all adjust- some symbols;... - Page 8 CONTENTS ZERO POWER STATE Before doing any operation, turn the switch on O “ZERO”. Before installing the pumping station, the cus- - Remove fuses; tomer shall make sure that the site is sufficiently - Indicate WORK IN PROGRESS; levelled and can stand its weight (see Technical - Lock the panel, remove the key and bring it with Features, Section 3).
- Page 9 2.11 CAUTION, DANGER OF INFECTIONS! Start the electric pump only when it is duly in- Before carrying out any intervention, the stalled and fixed. personnel operating shall make sure to use all NEVER START IT WITHOUT LIQUID. hygiene and health measures. NOTE! Do not move nor handle any part of the ECOSOM pumping station by using its wires.
- Page 10 2.15 2.17 The solar panels can reach high temperatures. When the machine has finished its life cycle, Consequently, handle them only once they are please dispose of it in a responsible manner. cool. 2.16 Always ask for and use original spare parts.
-
Page 11: Part 3 Technical Features
PART 3 TECHNICAL FEATURES... - Page 12 4.1.4 PART 4 CAUTION! DANGER OF INTOXICATION OR HANDLING, INSTALLATION POISONING BEACAUSE OF TOXIC GAS! AND CONNECTION Make sure that there is neither toxic nor inflam- mable gas in the area where the pumping station ECOSOM will be installed. 4.1.5 CAUTION, DANGER OF SLIPPING! Read thoroughly Part 2 and Part 3 of this Make sure that the area where the pumping sta-...
-
Page 13: Installation
4.1.8 It is advisable to install a NON-RETURN valve at INSTALLATION least 1 (one) metre from the delivery outlet of the electric pump to avoid a possible flow-back of liq- 4.2.1 uid through the delivery pipe. Necessary tools to assemble the station: 6 mm Allen key 13 mm wrench 4.1.9... - Page 14 4.2.3 4.2.6 Mount the1.24 m (5) bar and the 1.44 m (6) bar Mount the 1.1 m bars (3) fixing them with flat fixing them with flat brackets (12). brackets (12). 4.2.4 4.2.7 Mount the 72 cm (4) bars fixing them with triangu- Mount the 1.7 m bars (7) fixing them with L plates lar plates (10).
- Page 15 4.2.9 POSITIONING: Place the solar pumping station facing SOUTH if it is installed in the northern Hemisphere, NORTH if in the southern Hemisphere. 4.2.10 ANCHORAGE The best way to secure the pumping station is to fix the frame, firmly, to a rigid base. Its dimensions must be proportionate to the weight of the station and to the average wind speed of the area where the ECOSOM pumping station is to be installed.
-
Page 16: Electric Connection
4.3.2 Take the electric diagram (see 4.4.2). ELECTRIC CONNECTION 4.3.3 ELECTRIC PANEL 4.3.1 CAUTION! TECHNICAL FEATURES During the operation of electric connection, there - 30 A Unipolar thermal protector switch; is a high RISK OF ELECTRIC SHOCK. - 80 A power relay; This is why this operation must be carried out only - Predisposed to be connected with float switches by trained personnel (see EN 60204.1 point... -
Page 17: Electrical Drawing
4.3.5 ELECTRICAL DRAWING... -
Page 18: Power Cable
4.3.6 POWER CABLE The electric pump is supplied with 5 Mt. cable. If an extra length is needed, choose the right size according to the table ’CHOISE OF THE CABLE’ on BBC CATALOGUE. Cable joints must be ABSOLUTELY WATER- TIGHT Cable section mm Caratteristiche nominali Nominal... - Page 19 NOTE! Make sure that the electric cables are always in good conditions and that the terminals are well-tightened to their own clamps. Check, frequently and periodically, that all WIRING electric protections are duly working. In case of intervention of one of the protec- tions, check the reason before resetting the Turn the MAIN SWITCH on “0”...
-
Page 20: Part 5 Start-Up
PART 5 5.7CHECK OF THE AUTOMATIC DEVICES START-UP 5.7.1 Turn the selector switch on “AUTO”. The electric pump is started and stopped according to the status of the automatic devices (i.e. float switches, pressure switches, etc.). The operator must have read and understood this user’s manual, particularly Part 2, ‘Safety pre- scriptions’. -
Page 21: Part 7 Maintenance
These operations must be carried out by an ELEC- MAINTENANCE TRIC MAINTENANCE OPERATOR. (SEE EN 60204-1 Point 3.52). Please, call BBC Elettropompe for any operation of maintenance, repairing and clearing (LONG STOPS OR PERIODS OF IDLENESS excluded). Our Firm will give you all relevant and necessary These operations must be carried out by MECHA- instructions on the matter. - Page 22 TROUBLE POSSIBLE CAUSE REMEDY 1) The electric pump does not The batteries are low The pump will start start. as soon as the bat- teries have been re- charged Intervention of the thermal See point 3) Inter- protection vention of the ther- mal protection Burn-out fuses Replace fuses...
- Page 23 Tel. +39-0721-716590 – Fax +39-0721-716518 – www.bbc.it – bbcpompe@bbc.it CE STATEMENT OF CONFORMITY: Products: ECOSOM 4/80 - ECOSOM 320 - 290 - 262 - 190. We declare that the products listed above comply with the following Directives: - MACHINERY 2006/42/EC; - ELETROMAGNETIC COMPATIBILITY 2014/30/EU.
-
Page 24: Plate Data
PLATE DATA... - Page 25 Via G. Di Vittorio, 9 61034 Fossombrone (PU) - Italy Tel. +39 0721 716590 Fax +39 0721 716518 www.bbc.it bbcpompe@bbc.it...
