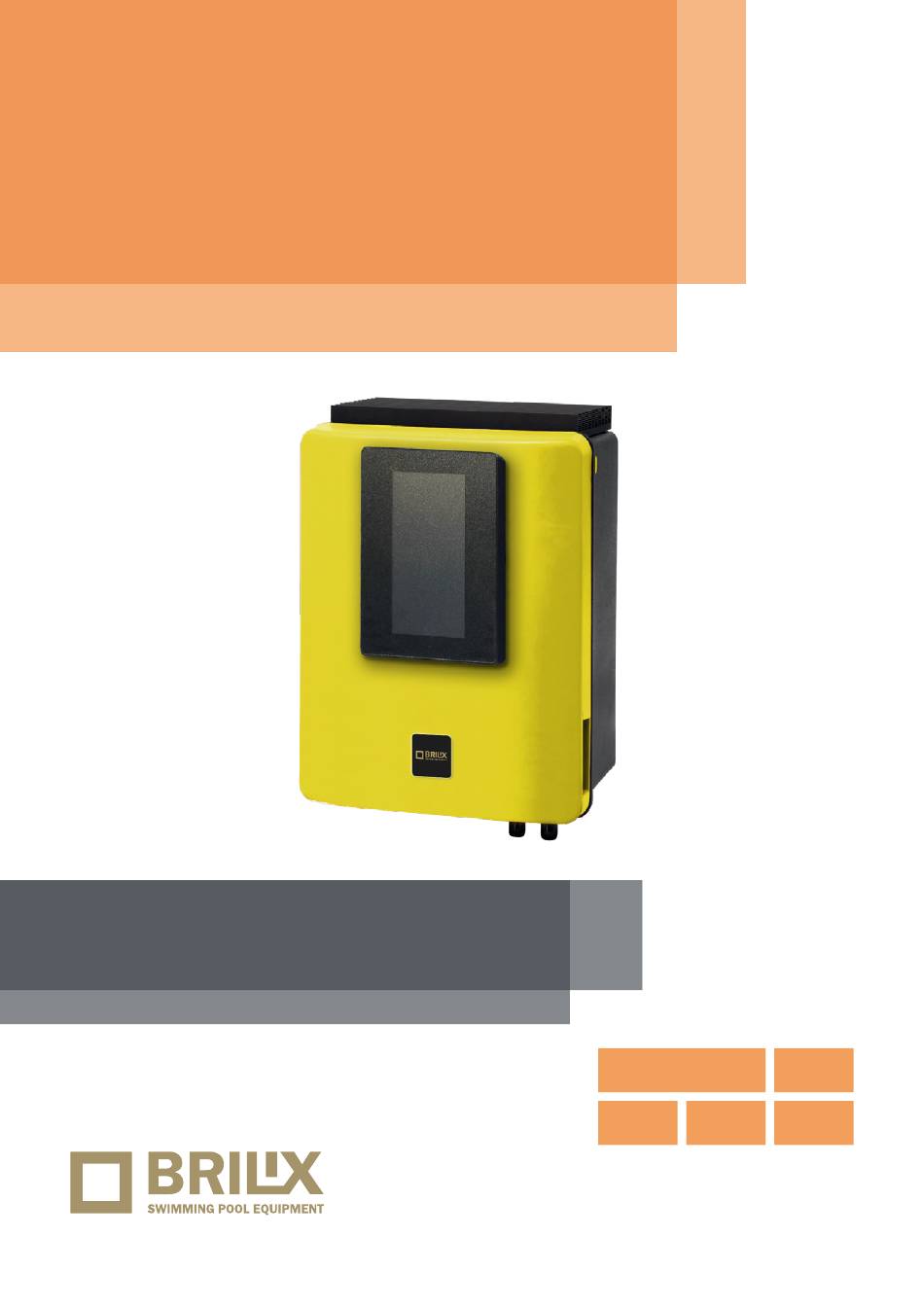

- Page 1 Control and dosage equipment STATION INSTALLATION AND USER GUIDE Worldwide Portable color remote display (TFT) control Controls WIFI and Upgrade filtration, MODBUS possible lighting VERZE 15/09/2022 / REVIZE: 05/01/2023...
-
Page 2: System Installation
Description Station is a complete pool controller which doses pool-chemicals in order to maintain the pool water in perfect conditions. The base product controls the temperature, filtration periods, pool lighting and 4 additional relays. The base product is upgraded by adding the measurement and control of up to 4 water parameters. -
Page 3: Maintenance
Maintenance First days of maintenance During the first 10-15 days your pool system will require more attention and the following care: Make sure the pH remains on the ideal level (6,8–7,2). If the pH is unusually unstable and uses a lot of acid check the alkalinity (recommended levels between 80 y 125 ppm). -
Page 4: Automatic Controls
Electronic box TOTAL TOTAL TOTAL °C POOL POOL POOL CONTROL CONTROL CONTROL Complete Filtration Light control Control of 4 Temperature REDOX- Free chlorine pool control pump control additional control management management management machines Description SAL 16 Max. production Cl Salt concentration Display 2,8’’... - Page 5 Dimensions Hydrolysis - electrolysis low intensity OXILIFE /...
- Page 6 Control unit wiring diagram Water treatment system for swimming pools. This installation and user manual is a general guide for all Salt water treatment models supplied by spol. Albixon a.s. Some of the features and settings listed in this guide are valid only for applicable models that support these features or for optional equipment that is not included in the basic package.
-
Page 7: Main Screen
Main screen Button display Heating ON/OFF Water temperature Production automatically reduced to Cover Status of the auxiliar relays the % selected (see display 3.6) Pol 1 Pol 2 Polarity 1 / Polarity 2 Current time Waiting time Flow Filtration stopped due to lack of water fl w Hydrolysis / Electrolysis 1 2 3 4 2 5 º... - Page 8 Hydrolysis / electrolysis (according to model) 3.1 Hydrolysis/Electrolysis: 3.2 Level: Electrolysis - 3.3 Salinity: 3.4 Boost: Filtration during 3.5 Mode: If the device 3.6 Cover: connection of automatic cover. See Programming of hydrolysis Desired production of Measuring gr/l of salt 24h at max intensity.
-
Page 9: Conductivity Calibration
4.10 4.11 Calibration of the redoX probe: Recommended Optional redoX control every 2 months during usage season. Metering and control of the 4.10 Calibration with buffer (buffer solution redoX as check value of the free 465 mV): Follow the instructions in 4 steps that chlorine. - Page 10 Filtration Manual mode Filtration: Configuration control of the filter pump To set, select 110-230 V Ground DRY CONTACT max. 3.15 A Filtration and confirm by pressing OK The mode selection is done in Mode line with the plus/minus keys. Manual: Manually turns ON/OFF the filtration process.
-
Page 11: Auxiliary Relays
Filter cleaning Filter cleaning mode (and pool cleanig by sucction): From this menu (accessible from any Filtration mode) It can be easily performed a backwashing cleaning of the sand filter. Activating this menu from any filtration mode (Manual, Automatic, Heating, Smart, Intelligent), will disconnect electrolysis/hydrolysis cell. Then proceed as follows: •... -
Page 12: System Settings
System settings Setting of preferred language. Setting of day and current time. Setting of the intensity of the display lighting (0-100%) and programming its ON/OFF time. Sound: Programming of the system to emit sound for the functions: Keyboard (keys); Notices (pop-up message); Alarms (working alarm);... -
Page 13: Flow Switch
Salinity* Salinity: The device shows a measurement of salt in water in g/l, as well as the date and water temperature of the last reading. To acknowledge this measure, press OK in Salinity in the Electrolysis/ Hydrolysis menu (the process takes between 2 and 5 minutes–display 9.4). You can adjust the system measure using a external salt measurer (display 9.5). -
Page 14: Variable Speed Pump
Level sensor (tank) Connect a level sensor to your device so you can control at all times the volume available in the tanks of chemicals that your system commonly uses. Contact your installer/provider to activate the sensor. This Acid deposit way you can ensure that the dosing pumps never run out of product and doses in vacuo, avoiding possible level TANK... - Page 15 Notes Hydrolysis - electrolysis low intensity OXILIFE /...
- Page 16 Thank you for using ALBIXON products ALBIXON export@albixon.com www.ALBIXON.com Note that the photos used in the manual are illustrative only. Printing and typesetting errors reserved.
