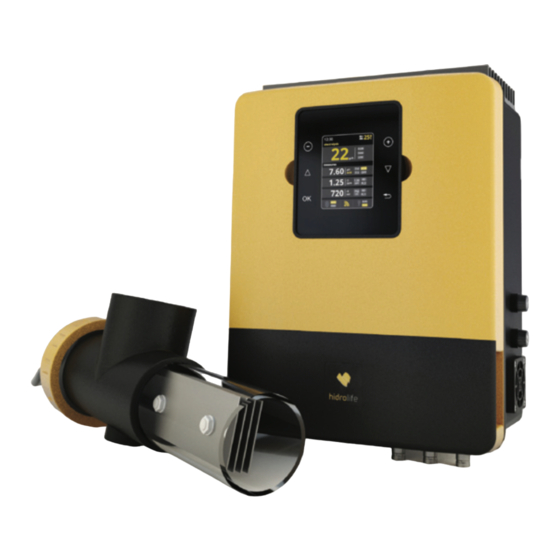

Brilix Hidrolife Installation Manual

1
DESCRIPTION
The salt water electrolysis produces
chlorine on the bases of salt water of low
salinity (approximately 5 g salt per liter).
As the swimming pool water containing
the salt flows through the electrolysis
cell, the salt is converted to sodium
hypochlorite (liquid chlorine). Organic
matter present in the water is oxidized
and eliminated by the chlorine. The
sodium hypochlorite reconverts into salt
on its way back to the swimming pool.

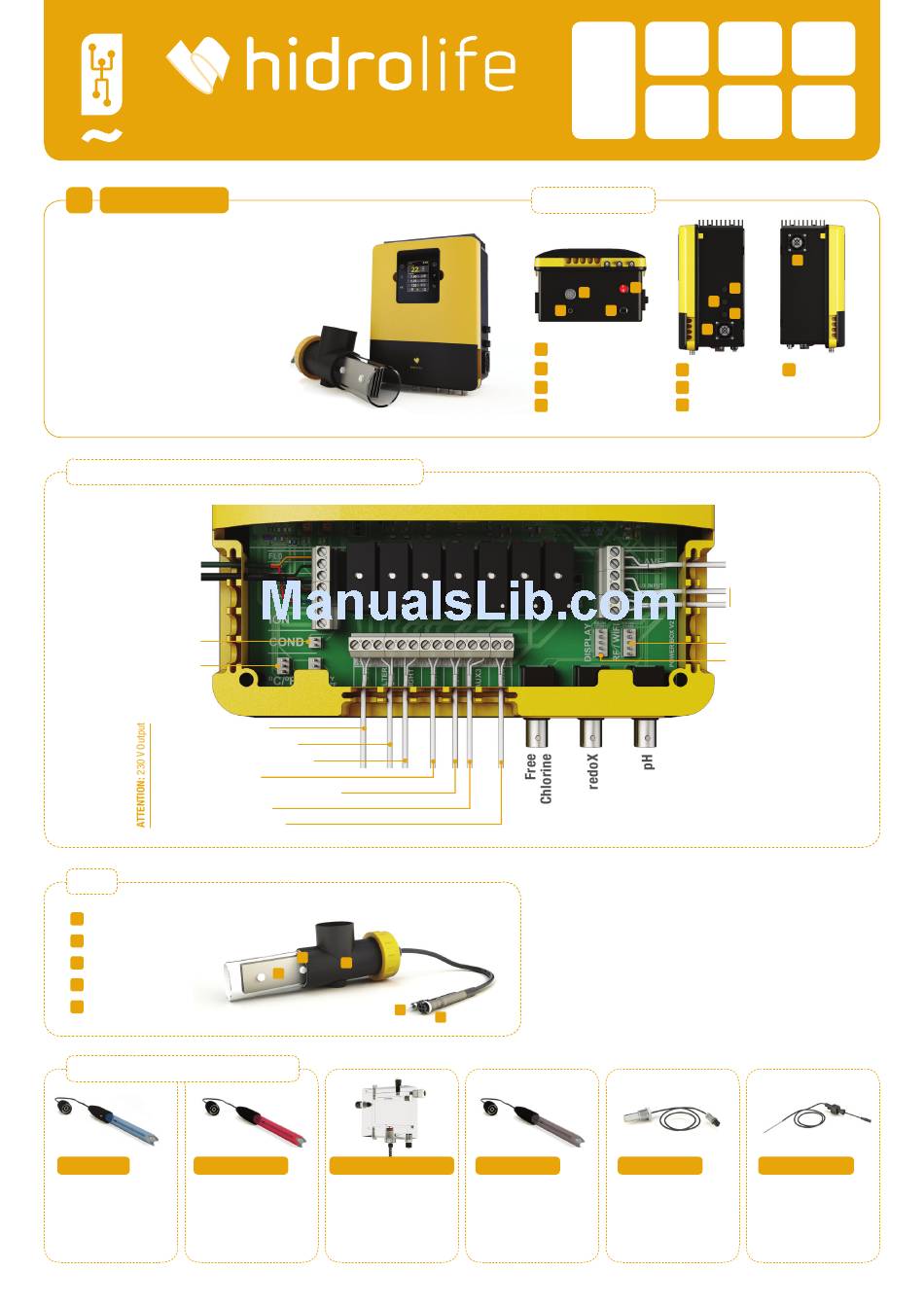

Electrical connections of the electronic box
Cover
Chlorine probe
detector (rotameter)
Conductivity probe
Temperature probe
RELAY 1 - pH (pH Control)
RELAY 2 - Filtr (Filtration control)
RELAY 3 - Lighting (Lighting control)
RELAY 4 - AUX 1 (Base)
RELAY 5 - AUX 2 (Chlorine / RedoX / Ozone)
RELAY 6 - AUX 3 (CD / UV)
RELAY 7 - AUX 4 (Heat pump)
Cell
1
Electrolysis cell
2
RCA flow detector
3
Cell connector
4 Flow/gas detector
5 Cell housing
Optional automatic controls
pH control redoX control
Metering and control Metering and control of
of the pH of the water. the redoX as check value
of the free chlorine.
INSTALLATION GUIDE
4
5
1
2
Free chlorine control
Metering and control in
ppm of the free chlorine
of the water.
from
3g
SALT/L
Electronic box
1
2 3
1
Electrolysis
2 RCA flow detector
3 Main connection 220 V
4 ON/OFF switch
3
Conductivity
Metering and control of
the conductivity of the
water in Msiemens.
PORTABLE
WORLDWIDE
COLOR
REMOTE
DISPLAY
CONTROL
(TFT)
UPGRADE SELF
POSSIBLE CLEAN
4
7
5
6
8
5 3.15 A fuse 8
6
250 mA fuse
7
Fuse relays 3.15 A
Device control SLAVE
Digital inputs / outputs
Connection WIFI / RS module
Connection display
Temperature Flow detector
Temperature probe Mechanic security
0 - 100° C necessary flow switch. Stops the
to activate the filtration electrolysis if there is no
modes: heating / water flow.
intelligent / smart.
WIFI and
MODBUS
SEA
WATER
8
Ventilation
grid
