Summary of Contents for Factor Electronics VERSA-6.5

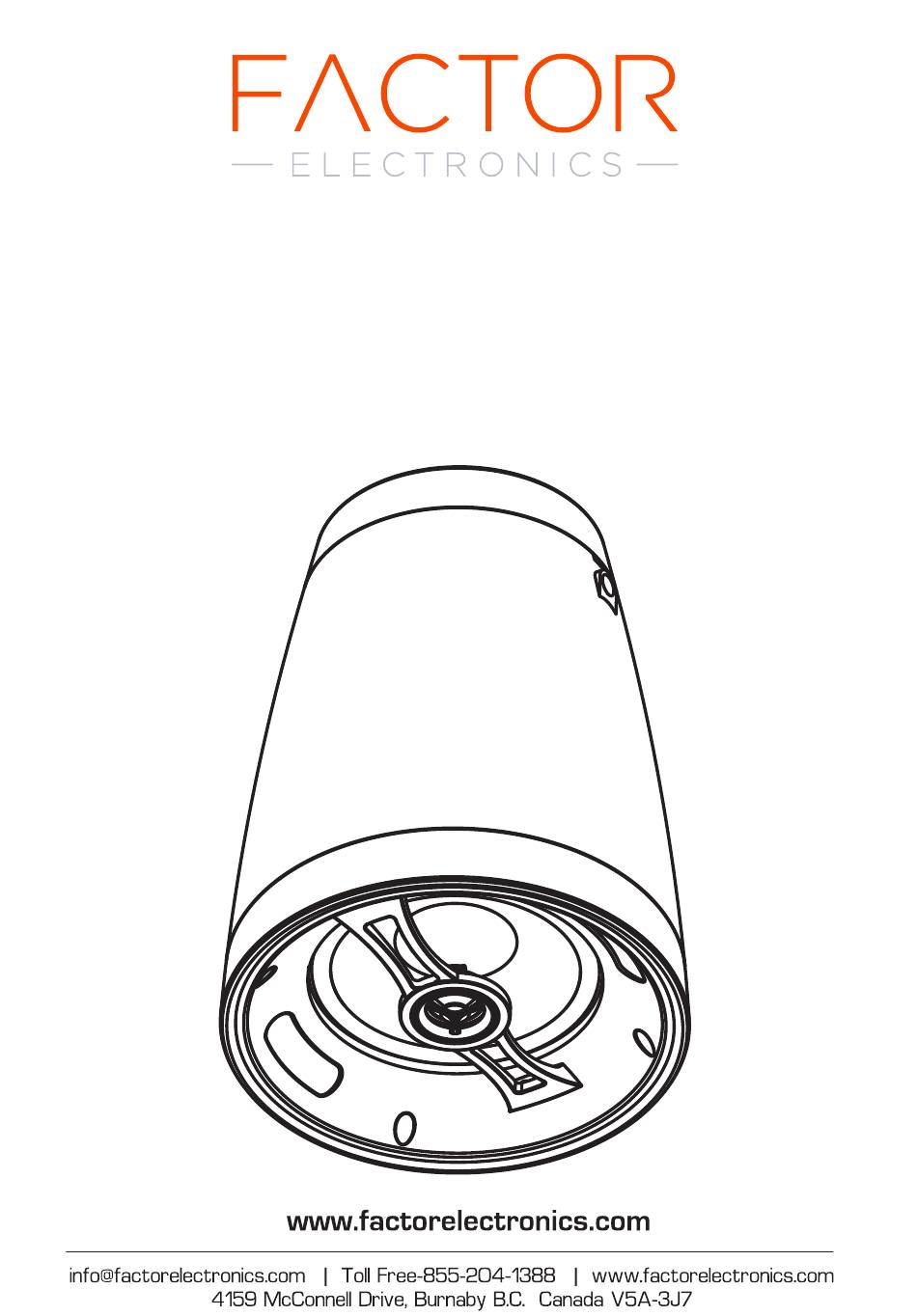

- Page 1 VERSA-6.5 MANUAL...
-
Page 2: Safety Instructions
VERSA-6.5 speakers can be used as hanging ceiling, wall mounted or as floor speakers. VERSA-6.5 can rotate 360 ° up and down while hanging or in wall mount position. NOTE: It is not recommended to rotate after installation... -
Page 3: Specifications
-03- SPECIFICATIONS VERSA-6.5 odel 1’’ (25mm) Titanium Dome eeter Woofer 6.5’’ (165 mm) Graphite Cone , Rubber Surround 51 Hz-20k Hz 60W program ,40 W (IEEE 219) 85 dB Taps ,20W,10W,5W Impedance 8 ohms Termination Pluggable Terminal Blocks Attachment Brackets/Safety rope... -
Page 4: Packing List
-04- PACKING LIST SPEAKER x 1 USER MANUAL x 1 Hanging Mount Accessories TOP COVER x 1 CARABINER & NUT x 1 HANGING CABLE x 1 HOOK x 2 SCREWS x 2 BUCKLE PART... - Page 5 -05- PACKING LIST Ground Mount Accessories UV RESISTANT CAP x 1 VERSA-WMB x 1 15 foot steel hanging cable Optional Included with clamps included VERSA PLATE x 1 & LANDSCAPE SPIKE x 1 SCREWS X 5 Optional Included SET UP 1.
-
Page 6: Mounting Information
-06- Fix the buckle part for tangle-free cable Cable Connection From Power Amplifier to Next Speaker From Power Amplifier to Next Speaker From Power Amplifier To Next Speaker MOUNTING INFORMATION... - Page 7 -07- When mounting the speaker to the wall, make sure the proper screws / bolts are used. HANGING INFORMATION Ceiling Pole Carabiner Hanging Cable Eye Bolt Pendant Speaker Make sure the speaker is properly secured to the ceiling / building’s structure. please use the proper screws, bolts, or anchors (not included).
- Page 8 -08- GROUND MOUNTING INFORMATION Attach the landscape spike to the speaker.
- Page 9 -09- Connect the wire to the speaker and attach the top cover to the speaker. GROUND MOUNTING...
