- Page 1 Version No.: CD/J_SMS_CDC6/20230414-01 MANUAL For CDC6 Display Cloud drive intelligent technology Co.,Ltd No. 6, Yuxi Road, Pukou District, Nanjing, Jiangsu Province, China...
- Page 2 In order to make you have better operation experience of the e-bike, please read the CDC6 MANUAL carefully before using. We will guide you to learn the detailed operation steps of CDC6 display, including the mounting steps and functions. Meanwhile, this MANUAL will help you find the solutions to the possible malfunctions.
-
Page 3: Table Of Contents
www.clouddrive.tech Empower and serve the global eBike industry CONTENT 1. Product Introduction ......................3 2. Technical Parameter ......................4 3. Appearance&Dimensions ....................4 4. Button Definition .......................5 5. Installation Instruction ...................... 6 6. Operation Instruction ......................7 7. General Setting ......................10 8. Cycling Mode Switch ......................15 9. -
Page 4: Product Introduction

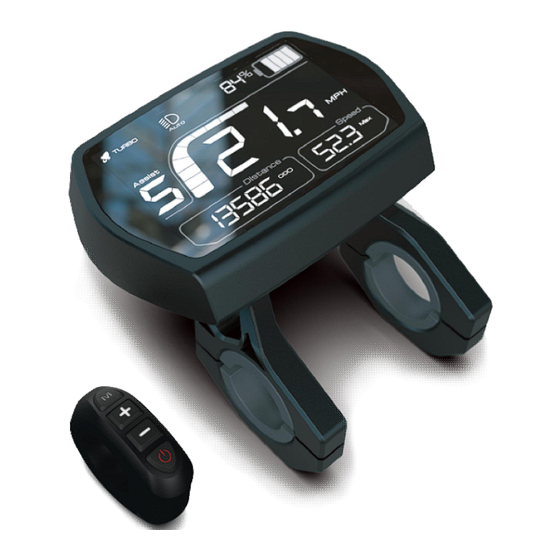

Empower and serve the global eBike industry 1. Product Introduction CDC6 display adopts 3.5’’ LCD screen, and equip with the light and beautiful buttons, exquisite appearance with matte black. The display interface frame is clear, double-layers printed circuit board(PCB), nylon bracket, and ABS shell (The ABS material is allowed for normal use at temperature ranging from -20°C to 60°C, meanwhile, it can also guarantee excellent mechanical properties.) -
Page 5: Technical Parameter
www.clouddrive.tech Empower and serve the global eBike industry Figure1-2 All icons indication interface 2. Technical Parameter Name Technical Parameter Rated Voltage 24V/33V/36V/48V/52V Rated Current 24V/19mA, 33V/16mA, 36V/15.5mA, 48V/14.5mA, 52V/14.4mA Ambient Temperature -20°C ~ +60°C Ambient Humidity 0 ~ 100%RH Protection Level IP65 Visible Angel of Screen Horizontal 160°, Vertical 160°... -
Page 6: Button Definition
Cloud drive intelligent technology Co.,Ltd Empower and serve the global eBike industry 4. Button Definition The equipped CDButton2 has four buttons, including M(setting) button, UP button, DOWN button and POWER button. /USB charging on/off USB charging port Figure4-1 Button definition... -
Page 7: Installation Instruction
Empower and serve the global eBike industry 5. Installation Instruction Fix the CDC6 display and button on the ebike handlebar, adjust to a suitable view angle, make sure the button is installed in an easy to operate position, tighten the screws, then the installation is finished. -
Page 8: Operation Instruction
Cloud drive intelligent technology Co.,Ltd Empower and serve the global eBike industry 6. Operating Instruction 6.1. Display power on/off Click button to power on the display and the display start to work, under power on condition, long press button for 3s to power off the display. Under power off condition, the display no longer uses the battery power, the display electric leakage current is less than 2µA. - Page 9 www.clouddrive.tech Empower and serve the global eBike industry Figure6-1 Functional icons with mark number Cycling Modes PEDELEC: Max. Throttle speed limit 32Km/h, Max. PAS speed limit 25Km/h CLASS3: Max. Throttle speed limit 32Km/h, Max. PAS speed limit 45Km/h OFF-ROAD: Max. Throttle speed limit 52Km/h, Max. PAS speed limit 52Km/h PAS Level Left-turn Indicator Level 0 to level 5...
- Page 10 Cloud drive intelligent technology Co.,Ltd Empower and serve the global eBike industry 6.6. Battery capacity indication When the battery is fully charged, all five capacity indicators light up. When the battery is voltage shortage, the last battery capacity indicator will flash, and the battery needs to be charged immediately.
-
Page 11: General Setting
www.clouddrive.tech Empower and serve the global eBike industry 7. General Setting 7.1. Speed unit setting Under power on condition, long press button for 3s to enter the speed unit setting interface, click button to switch the speed unit(Km/h or MPH), default speed unit is Km/h. If no operation within 6 seconds, current interface will exit automatically and back to main working interface. - Page 12 Cloud drive intelligent technology Co.,Ltd Empower and serve the global eBike industry 7.3. Wheel diameter setting After input the correct password, enter the wheel diameter setting interface automatically, and the following wheel diameter can be selected.(The wheel diameter is 26’’ in Figure7-3)
- Page 13 www.clouddrive.tech Empower and serve the global eBike industry 7.5. Cruise mode setting After finish the startup password changing, click button to enter the cruise mode setting interface, click button to turn on/off the cruise mode. (The default cruise mode is OFF) Figure7-5 Cruise mode setting 7.6.
- Page 14 Cloud drive intelligent technology Co.,Ltd Empower and serve the global eBike industry 7.7. Cycling Mode Switch After finish the cruise mode setting, click button to enter the cycling mode switch setting interface, click button to switch the cycling mode.(Only PEDELEC and CLASS3 mode are switchable in this setting interface.)
- Page 15 www.clouddrive.tech Empower and serve the global eBike industry 7.8. Version information After finish the current limit setting, click button to enter the version information interface. Figure7-7a Software version info Figure7-7b Hardware version info 7.9. Startup password changing After checking the hardware version number, click button to enter the startup password changing interface, click button to change the password number, click...
-
Page 16: Cycling Mode Switch
Cloud drive intelligent technology Co.,Ltd Empower and serve the global eBike industry 8. Cycling Mode Switch While in any setting interface(except for the speed unit setting interface), long press button together for 2S, then input password 1159 to enter the cycling mode switch interface. Click button to change the cycling mode.(Only CLASS3 and OFF-ROAD mode are switchable in this... -
Page 17: Connectors Definition
www.clouddrive.tech Empower and serve the global eBike industry 9. Connectors Definition CDC6 multi-functional LCD display equip with connection cable, the connector that connected to the button is BM-JHBM-04M, the connector that connected to the controller is BM-JHBM-06G, CDC6 display can widely match the battery of 24V/33V/36V/48V/52V voltage. Figure9-1 Connector definition Business Cooperation Page 16 of 19... -
Page 18: Faq
Cloud drive intelligent technology Co.,Ltd Empower and serve the global eBike industry 10. FAQ Q: Why power on failed? A: Check if the display’s cables have been reliably connected with the controllers. Q: How to deal with the indicated error code on display? A: Firstly, find the corresponding error description according to the indicated error code, if user can’t solve it by themselves, please go to the e-Bike maintenance point and seek for professional... -
Page 19: Annex.: Error Code Definition Table
www.clouddrive.tech Empower and serve the global eBike industry Annex.: Error Code Definition Table Error Definition Solutions Code 1. Check if throttle is back to the origin position firstly, then check Throttle not back to origin position if the connecting cable is loosed, (Stop at high level position) 2. - Page 20 Cloud drive intelligent technology Co.,Ltd Empower and serve the global eBike industry A. The display can’t power on and the screen is dark, the reason might be: The power supply connector between controller and battery is not connected well or there is something wrong with any one cable of the red /black /blue cables that between the display and controller.
