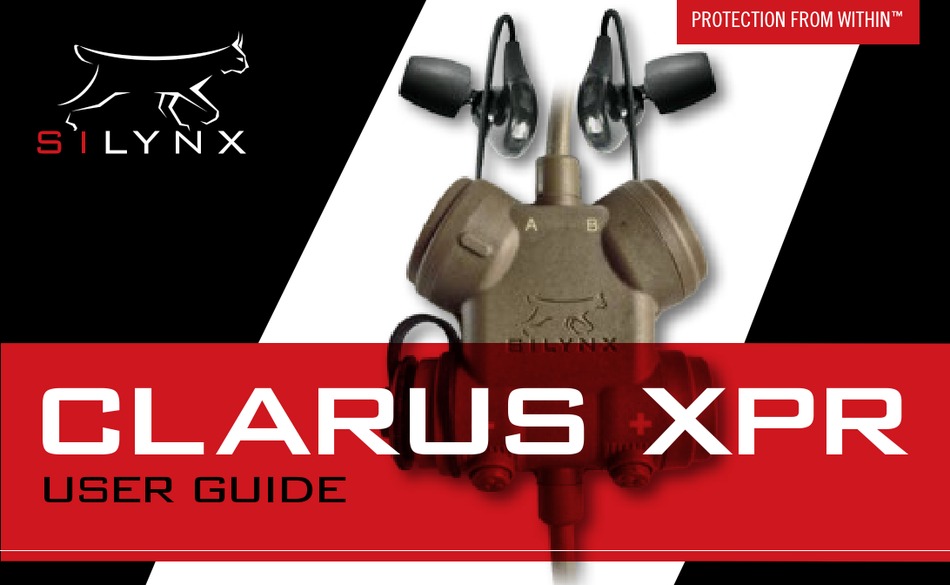

- Page 1 PROTECTION FROM WITHIN ™ clarus xpr user guide...
- Page 2 CLARUS SYSTEM COMPONENTS In-Ear Headset Ear Retainers S, M, L Control Unit / Push-to-Talk Radio Adaptor Cable Foam Ear Tips * XTS Adaptor Shown S, M, L Fixed Headset Configuration Modular Headset Configuration...
-
Page 3: Getting Started
GETTING STARTED Connect primary radio adaptor to Connect headset to control box control unit (For XPR with QDC only) Primary Radio Adaptor Primary Radio Adaptor PRIME Dual Comms Adaptor (1a) If using optional dual comms adaptor, connect primary radio adaptor to lead labeled “PRIME”... - Page 4 INSERTING EARBUDS Pinch foam and apply ear plug to stem of ear bud Ear Bud Foam Ear Tip Insert ear plug Nape Adjuster into ear canal...
-
Page 5: Operation
OPERATION Connect radio Insert a single adaptor cable to radio AAA battery and turn radio on To turn the To turn the system on, press system off, press and hold the “+” and hold the “+” key for 5 seconds key for 5 seconds... -
Page 6: Control Unit
CONTROL UNIT Primary PTT Secondary PTT Press (-) key to Press (+) key to decrease Hear-Thru increase Hear-Thru sensitivity level sensitivity level “Hear-Thru Off” “Maximum Hear-Thru” AAA Battery Chamber Press and hold (+) key for (5) sec to power on / off Molle Clip = Voice Prompt... - Page 7 Motorola APX Radio RADIO ADAPTOR RADIO ADAPTOR RADIO ADAPTOR RADIO ADAPTOR Smart Phone *Dual Comms **Peltor/Sordin Headset CABLE ADAPTOR RADIO ADAPTOR CABLE ADAPTOR * Only compatible with radio and cell phone when used with CLARUS XPR ** Only compatible with CLARXPR-QH configurations...
- Page 8 9901 Belward Campus Drive Suite 150 Rockville, MD 20850 USA 1.866.325.1731 | info@silynxcom.com | customersupport@silynxcom.com CLARUS XPR User Guide - Rev 01, January 2016 ALL RIGHTS RESERVED COPYRIGHT...
