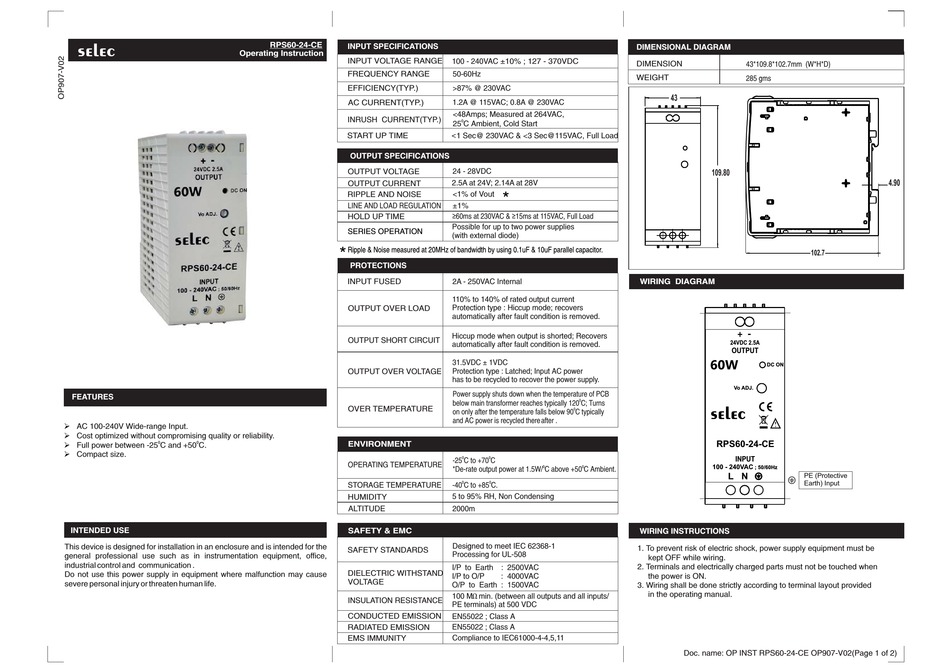

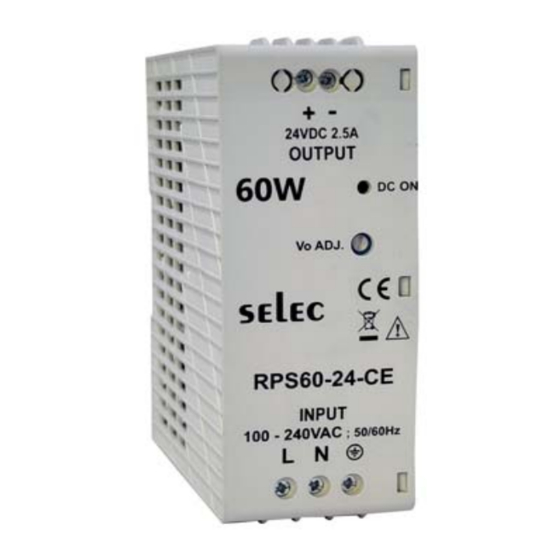

Selec RPS60-24-CE Operating Instruction

SPECIFICATION
selec
FEATURES
Ø
AC 100-240V Wide-range Input.
Ø
Cost optimized without compromising quality or reliability.
Ø 0 0
Full power between -25 C and +50 . C
Ø
Compact size.
INTENDED USE
This device is designed for installation in an enclosure and is intended for the
general professional use such as in instrumentation equipment, office,
i ndustrial control and communication .
Do not use this power supply in equipment where malfunction may cause
severe personal injury or threaten human life.
SAFETY INSTRUCTION
RPS60-24-CE
INPUT SPECIFICATIONS
Operating Instruction
INPUT VOLTAGE RANGE
FREQUENCY RANGE
EFFICIENCY(TYP.)
AC CURRENT(TYP.)
INRUSH CURRENT(TYP.)
START UP TIME
OUTPUT SPECIFICATIONS
OUTPUT VOLTAGE
OUTPUT CURRENT
RIPPLE AND NOISE
LINE AND LOAD REGULATION
HOLD UP TIME
SERIES OPERATION
PROTECTIONS
INPUT FUSED
OUTPUT OVER LOAD
OUTPUT SHORT CIRCUIT
OUTPUT OVER VOLTAGE
OVER TEMPERATURE
ENVIRONMENT
OPERATING TEMPERATURE
STORAGE TEMPERATURE
HUMIDITY
ALTITUDE
SAFETY & EMC
SAFETY STANDARDS
DIELECTRIC WITHSTAND
VOLTAGE
INSULATION RESISTANCE
CONDUCTED EMISSION
RADIATED EMISSION
EMS IMMUNITY
100 - 240VAC ±10% ; 127 - 370VDC
50-60Hz
>87% @ 230VAC
1.2A @ 115VAC; 0.8A @ 230VAC
<4 Amps; Measured at 264VAC, 8
0
25 C Ambient, Cold Start
< 1 Sec@ 230VAC & <3 Sec@115VAC, Full Load
24 - 28VDC
2.5A at 24V; 2.14A at 28V
<1% of Vout
±1%
≥ ≥
60ms at 230VAC & 15ms at 115VAC, Full Load
Possible for up to two power supplies
(with external diode)
2A - 250VAC Internal
110% to 140% of rated output current
Protection type : Hiccup mode; recovers
automatically after fault condition is removed.
Hiccup mode when output is shorted; Recovers
automatically after fault condition is removed.
31 VDC .5 ± 1VDC
Protection type : Latched; Input AC power
has to be recycled to recover the power supply.
Power supply shuts down when the temperature of PCB
0
below main transformer reaches typically 120 C; Turns
0
on only after the temperature falls below 90 C typically
and AC power is recycled there after .
0 0
-25 C to +70 C
0 0
*De-rate output power at 1.5 W/ C above +50 C Ambient.
0 0
-40 C to +85 C.
5 to 95% RH, Non Condensing
2000m
Designed to meet IEC 62368-1
Processing for UL-508
I/P to Earth : 2500VAC
I/P to O/P : 4000VAC
O/P to Earth : 1500VAC
Ω
100 M min. (between all outputs and all inputs/
PE terminals) at 500 VDC
EN55022 ; Class A
EN55022 ; Class A
Compliance to IEC61000-4-4,5,11
DIMENSIONAL DIAGRAM
DIMENSION
43*109.8*102.7mm (W*H*D)
WEIGHT
285 gms
43
109.80
102.7
WIRING DIAGRAM
+ -
24VDC 2.5A
24VDC 2.5A
OUTPUT
OUTPUT
60W
60W
DC ON
DC ON
Vo ADJ.
RPS60-24-CE
RPS60-24-CE
INPUT
INPUT
100 - 240VAC
; 50/60Hz
L N
PE (Protective
L N
Earth) Input
WIRING INSTRUCTIONS
1. To prevent risk of electric shock, power supply equipment must be
kept OFF while wiring.
2. Terminals and electrically charged parts must not be touched when
the power is ON.
3. Wiring shall be done strictly according to terminal layout provided
in the operating manual.
Doc. name: OP INST RPS60-24-CE OP907-V02(Page 1 of 2)
