- Page 1 Induction Hob Instruction Manual / Installation Manual MODEL: UBINDFX60PF...
-
Page 2: Safety Warnings
SAFETY WARNINGS PLEASE READ THE FOLLOWING INSTRUCTIONS CAREFULLY BEFORE USING THE APPLIANCE. Installation Electrical Shock Hazard • Disconnect the appliance from the mains electricity supply before carrying out any work or maintenance on it. • Connection to a good earth wiring system is essential and mandatory. - Page 3 • This appliance is to be properly installed and earthed only by a suitably qualified person. • This appliance should be connected to a circuit which incorporates an isolating switch providing full disconnection from the power supply. • WARNING: Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance.
- Page 4 • During use, accessible parts of this appliance will become hot enough to cause burns. • Do not let your body, clothing or any item other than suitable cookware contact the ceramic glass until the surface is cool. • Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get •...
- Page 5 • Do not store items of interest to children in cabinets above the appliance. Children climbing on the cooktop could be seriously injured. • Do not leave children alone or unattended in the area where the appliance is in use. •...
- Page 6 • Care should be taken to avoid touching heating elements. • Children less than 8 years of age shall be kept away unless continuously supervised. • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the...
-
Page 7: Product Overview

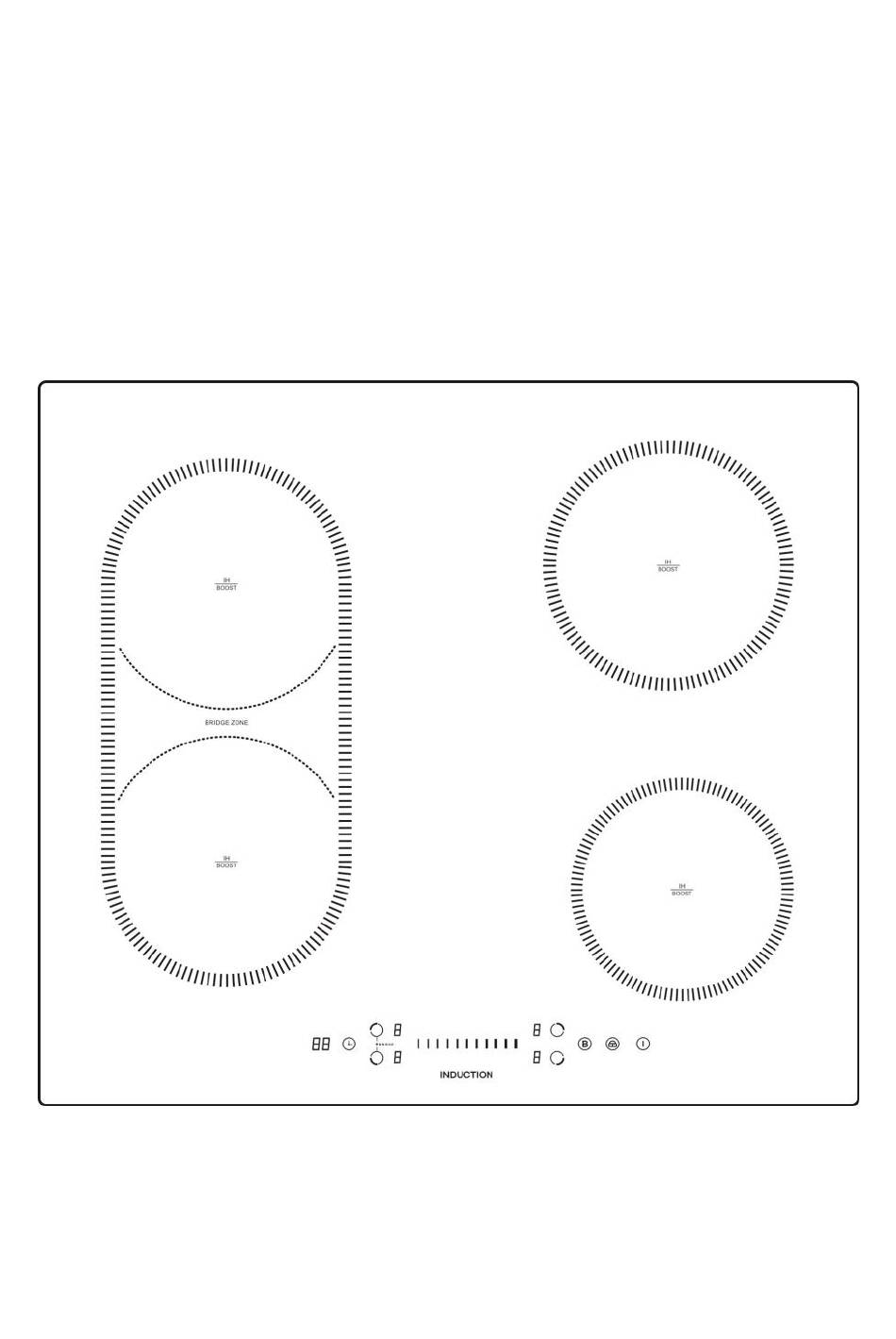

1. max. 1800/2100 W zone 2. max. 1800/2100 W zone 3. max. 1800/2100 W zone 4. max. 1200/1500 Wzone 5. max. 2800 W zone 6. Control panel UBINDFX60PF The Control Panel UBINDFX60PF 1. ON/OFF switch 4. Child lock 2. Select power level 5. -
Page 8: Product Information
Product Information The ceramic/induction hob can meet different kinds of cuisine demands because of resistance wire heating, micro-computerized control and multi-power selection, really the optimal choice for modern families. The hob centers on customers and adopts personalized design. The hob has safe and reliable performances, making your life comfortable and enabling to fully enjoy the pleasure from life. -
Page 9: Choosing The Right Cookware
Make sure the controls are always clean, dry, and that there is no object (e.g. a • utensil or a cloth) covering them. Even a thin film of water may make the controls difficult to operate Choosing the right Cookware •... -
Page 10: Using Your Hob
Always lift pans off the ceramic hob – do not slide, or they may scratch the glass. Using your Hob To start cooking After power on, the buzzer beeps once, all the indicators light up for 1 second then • go out, indicating that the hob has entered the state of standby mode. -
Page 11: When You Have Finished Cooking
When you have finished cooking Touching the heating zone selection that you wish to switch off Turn the cooking zone off by touching “slider”control down to“0”. Make sure the display shows“0”. Turn the whole cooktop off by touching the ON/OFF control. - Page 12 2. Touching the "Boost" key until power level indication shows “P”. Cancel Boost function 1. Select the zone with boost function (front left zone). 2. Touching the “slider” to cancel the Boost function, and select the level you want to set. •...
-
Page 13: As A Single Zone
Using Bridge zone function This may be used as a single zone or two individual zones depending on the cooking needs in each situation. It is made of two independent inductors that can be controlled separately. When the flexible zone is working, only the zone covered by the cookware is activated. This function only works on 1# and 2# cooking zones. -
Page 14: As Two Independent Zones
The buzzer beeps indicating that the induction hob enters selection of Bridge zone, and the corresponding indicator will flash. 3. Select the power level you want to set by touch “Slider”control. Note: If you activate #3, #4 heating elements firstly, and then activate Bridge function with the level 9 or P, the #3, #4 heating elements will be actomatically switch off because of power management. -
Page 15: Locking The Controls
Locking the Controls • You can lock the controls to prevent unintended use (for example children accidentally turning the cooking zones on). When the controls are locked, all the controls except the ON/OFF control are • disabled. To lock the controls Touch the keylock control. -
Page 16: Using The Timer As A Minute Minder
Using the Timer You can use the timer in two different ways: You can use it as a minute minder. In this case, the timer will not turn any cooking zone off when the set time is up. You can use it as cut-off timer to turn one or more cooking zones off after time is * You can set the timer up to 99 minutes. - Page 17 6. When the time is set, it will begin to count down immediately. The display will show the remaining time. 7. Buzzer will bips for 30 seconds and the timer indicator shows “- -” when the setting time finished. Using the timer to switch off one or more cooking zones 1.
-
Page 18: Canceling The Timer
7. When cooking timer expires, the corresponding cooking zone will be switched off automatically. Note: Other cooking zones will keep operating if they are turned on previously. If the timer is set on more than one zone: When you set timer for several cooking zones, red dots of the relevant cooking zones are indicated. -
Page 19: Cooking Guidelines
Cooking Guidelines ke care when frying as the oil and fat heat up very quickly, particularly if you’re using Boost. At extremely high temperatures oil and fat will ignite spontaneously and this presents a serious fire risk. Cooking Tips When food comes to the boil, reduce the power setting. •... -
Page 20: Heat Settings
4. Cook any meat first, put it aside and keep warm. 5. Stir-fry the vegetables. When they are hot but still crisp, turn the cooking zone to a lower setting, return the meat to the pan and add your sauce. 6. -
Page 21: Care And Cleaning
Care and Cleaning What? How? Important! Everyday soiling on 1. Switch the power to the cooktop off. • When the power to the cooktop is glass (fingerprints, 2. Apply a cooktop cleaner while the switched off, there will be no ‘hot marks, stains left by glass is still warm (but not hot!) surface’... -
Page 22: Hints And Tips
Hints and Tips Problem Possible causes What to do The cooktop cannot No power. Make sure the cooktop is connected to Be turned on. the power supply and that it is switched on. Check whether there is a power outage in your home or area. If you’ve checked everything and the problem persists, call a qualified technician. -
Page 23: Failure Display And Inspection
The above are the judgment and inspection of common failures. Please do not disassemble the unit by yourself to avoid any dangers and damages to the induction hob. Technical Specification Induction Hob UBINDFX60PF Cooking Zones 4 Zones Supply Voltage 220-240V~ 50 / 60Hz... -
Page 24: Selection Of Installation Equipment
B(mm) X(mm) 50 mini UBINDFX60PF Under any circumstances, make sure the hob is well ventilated and the air inlet and outlet are not blocked. Ensure the hob is in good work state. As shown below Note: The safety distance between the hotplate and the cupboard above the hotplate... -
Page 25: Before Locating The Fixing Brackets
A(mm) B(mm) C(mm) 50 mini 20 mini Air intake Air exit 5mm Before you install the hob, make sure that • The work surface is square and level, and no structural members interfere with space requirements. The work surface is made of a heat-resistant material. •... - Page 26 Cautions The hob must be installed by qualified personnel or technicians. We have professionals at your service. Please never conduct the operation by yourself. The hob shall not be mounted to cooling equipment, dishwashers and rotary dryers. The hob shall be installed such that better heat radiation can be ensured to enhance its reliability.
-
Page 27: Connecting The Hob To The Mains Power Supply
Connecting the hob to the mains power supply The power supply should be connected in compliance with the relevant standard, or a single-pole circuit breaker. The method of connection is shown below. If the cable is damaged or needs replacing, this should be done by an after-sales technician using the proper tools, so as to avoid any accidents. - Page 28 Energy data sheet...
- Page 30 For more detailed information about treatment, recovery and recycling of this for special treatment is product, please contact your local city office, your household waste disposal necessary. service or the shop where you purchased the product. UBINDFX60PF User Manual v.20181114...
