USER MANUAL
iSYS-5021 Evaluation Kit
Revision:
1
Date:
11.12.2018
page 1 of 9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iSYS-5021 and is the answer not in the manual?

Questions and answers

Related Manuals for InnoSenT iSYS-5021

Summary of Contents for InnoSenT iSYS-5021

  • Page 1 USER MANUAL iSYS-5021 Evaluation Kit Revision: Date: 11.12.2018 page 1 of 9...

  • Page 2: Table Of Contents

    Table of content Brief description ....................3 1.1. Quick Start Guide ..................4 1.2. iSYS-5021 ....................6 1.3. Interface-Board ..................7 1.4. Power-Supply .................... 8 1.4.1. Prepare USPS-1000 ................8 1.4.2. Supply voltages .................. 8 1.5. USB cable ....................9 1.6.

  • Page 3: Brief Description

    1. Brief description The Evaluation Kit contains all necessary equipment for a quick installation setup to evaluate the iSYS-5021 performance. Detected targets are shown in a 2D-plot within the Target-Viewer software. The iSYS-5021 Evaluation Kit consists of: (1) iSYS-5021 (2) Interface-Board...

  • Page 4: Quick Start Guide

    1.1. Quick Start Guide Follow these steps to evaluate the iSYS-5021 with Ethernet interface. 1. Install target viewer software from the software package on your Windows PC. (s. target viewer manual rev_x.pdf for further information if needed) 2. Prepare your PC for fixed IP address.
  • Page 5 11. Targets are displayed in the target viewer main window. page 5 of 9...

  • Page 6: Isys-5021

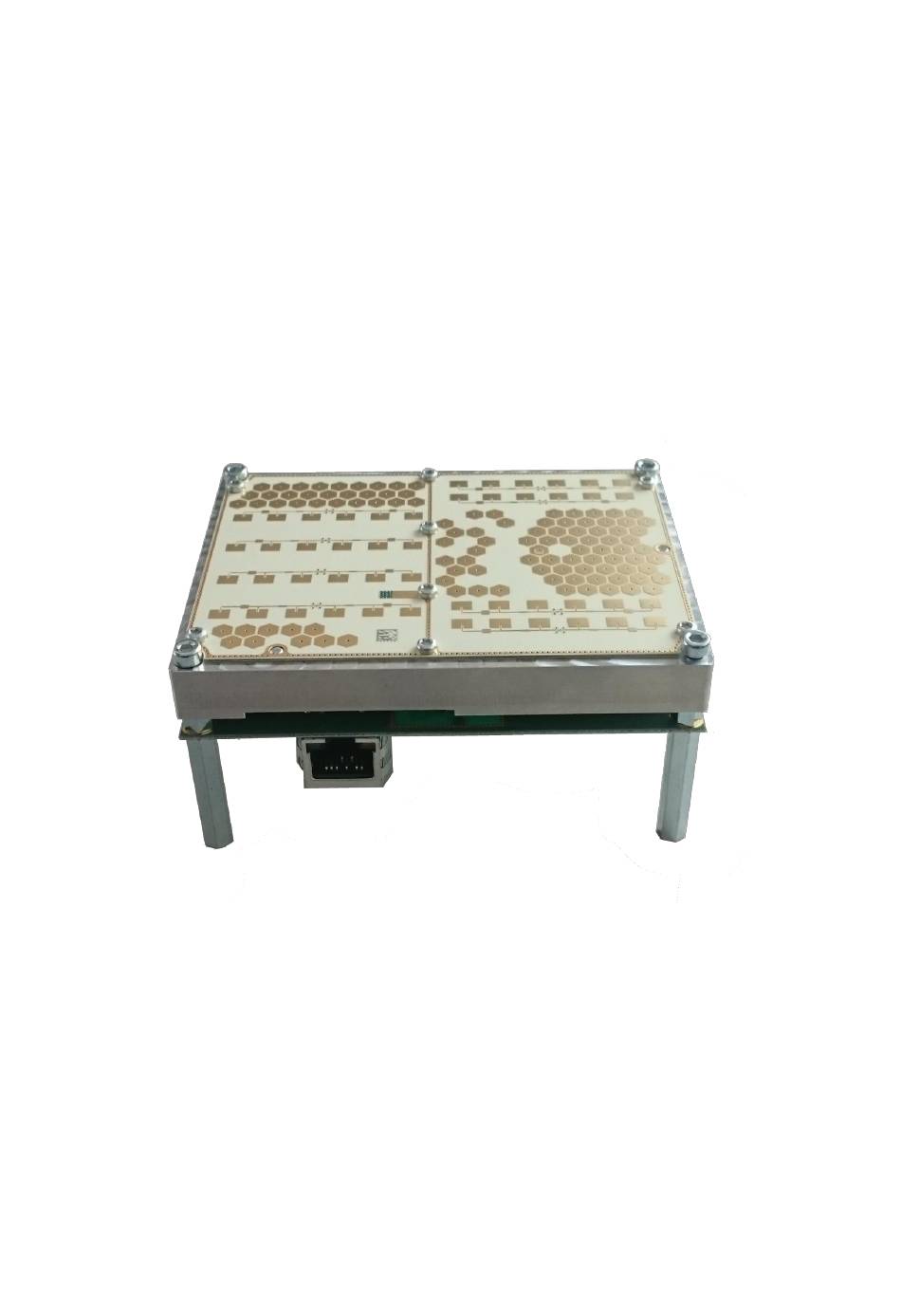

    1.2. iSYS-5021 Please read the iSYS-5021 datasheet [1] and User Manual [2] for detailed product information. page 6 of 9...

  • Page 7: Interface-Board

    1.3. Interface-Board The INF-5021 interface board contains a voltage regulator for iSYS-5021 power supply, a connector for Beagle SPI protocol analyzer and an USB to UART Bridge for UART connection. (1) Micro USB plug (Part No: 629105136821, Würth Elektronik) (2) DC power jack (Part No: 172-0250, Kobiconn) (3) Box Header 2.54mm (for Beagle SPI Protocol-Analyzer - not included in...

  • Page 8: Power-Supply

    1.4. Power-Supply The Evaluation Kit contains the VOLTCRAFT USPS-1000 plug-in power unit. 1.4.1. Prepare USPS-1000 (1) Unpack power supply (2) Set voltage to 12V (3) Insert correct plug with GND outside 1.4.2. Supply voltages If not using the VOLTCRAFT USPS-1000 please prepare your power supply according to Table 1: power supply parameters.

  • Page 9: Usb Cable

    1.6. Ethernet cable Please use attached Ethernet cable for target list transmission. The Ethernet cable needs to connect the iSYS-5021 Eval-Kit and the windows PC with target viewer software directly. A switch or router between the two devices is not allowed.
