INSTALLATION AND SERVICE MANUAL

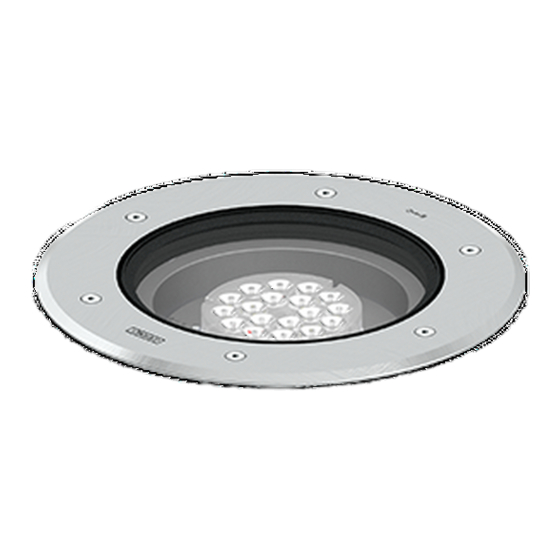

For Installation of Kios Inground uplight round dia. 290mm. and dia. 286mm. LED.
Model. KI-60771,KI-60775,KI-60781 and KI-60785

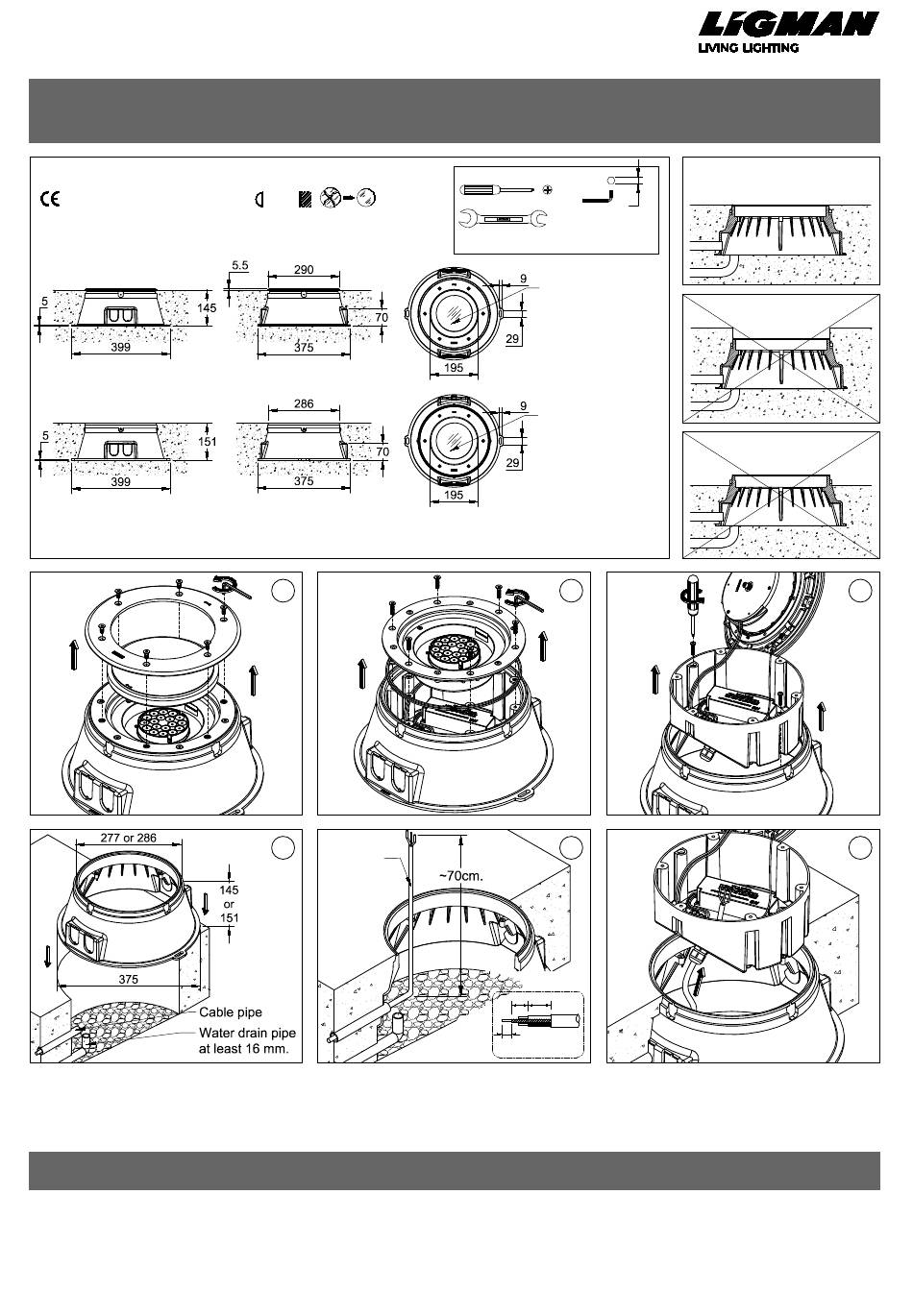

Product drawing (dimensions)
IP67 IK10 CLASS I
Drive over 2,000kg. at max. 50km/h.
EMBOSS FRAME KI-60771,KI-60775
FLAT FRAME KI-60781,KI-60785
■ LIGMAN standard products are supplied with the control gear 220-240V 50/60Hz.
The control gear for other voltages and frequencies is available upon request, please consult us for more details.
■ LIGMAN luminaires are designed to conform IEC 60598 2-13 standard.
Technical amendments and modifications techniques reserved.
L i g m a n L i g h t i n g
Europe Headquarters
Ligman Europe s.r.o.
VGP Park Usti nad Labem, P 2
Prestanov 113
403 17 Prestanov
Czech Republic
Tel. +420 608 740 504 sales.cz@ligman.com
|
www.ligman.com
0.5m
1
Cable OD
4
Min 6mm.
Max 12mm.
Thailand Headquarters
Ligman Lighting Co., Ltd.
17/2 Moo 4, Monthong, Bangnampreaw
Chachoengsao 24150 Thailand
Tel : +66 (2) 7339140
info@ligman.com
M KI-60771/17/03/18REV.4
TOOL
Ta 25°c
Glass surface temp
KI-60771 = 46.0°c
Ta 25°c
Glass surface temp
KI-60781 = 46.0°c
2
5
20 30
6
²
CABLE SIZE : 3x1.0mm
1/2
OK
YES
4
NO
NO
Ligman Ltd
Regus House, Victory Way
Crossways Business Park
Dartford DA2 6QD
Tel. 0800 975 0622
sales.uk@ligman.com
FM-TS-13-1/13-03-2561/REV.4
3
6
