INSTALLATION AND SERVICE MANUAL

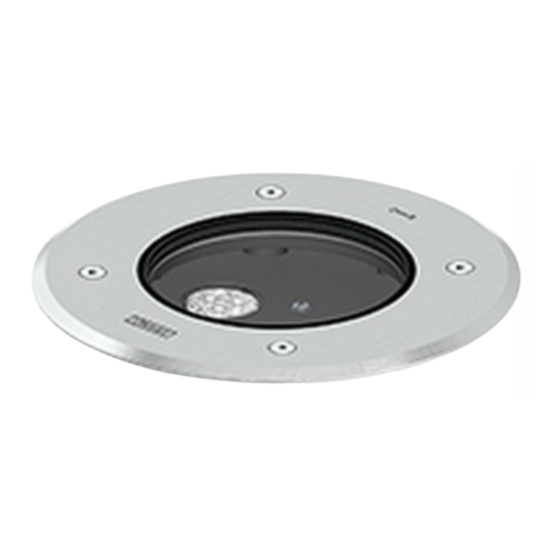

For Installation of Kios Inground uplight round dia. 220mm. and dia. 216mm. Power LED.
Model. KI-60485 and KI-60495
Product drawing (dimensions)
EMBOSS FRAME KI-60485
FLAT FRAME KI-60495
OK
YES
■ LIGMAN standard products are supplied with the control gear 220-240V 50/60Hz.
The control gear for other voltages and frequencies is available upon request, please consult us for more details.
■ LIGMAN luminaires are designed to conform IEC 60598 2-13 standard.
Technical amendments and modifications techniques reserved.
L i g m a n L i g h t i n g
Europe Headquarters
Ligman Europe s.r.o.
VGP Park Usti nad Labem, P 2
Prestanov 113
403 17 Prestanov
Czech Republic
Tel. +420 608 740 504 sales.cz@ligman.com
|
www.ligman.com
1
Thailand Headquarters
Ligman Lighting Co., Ltd.
17/2 Moo 4, Monthong, Bangnampreaw
Chachoengsao 24150 Thailand
Tel : +66 (2) 7339140
info@ligman.com
M KI-60485/31/08/16/REV.3
1/2
IP67 IK10 CLASS I 0.5m
Drive over 2,500kg. at max. 50km/h.
NO
2
Ta 25°c
Glass surface temp
KI-60485 = 37.0°c
Ta 25°c
Glass surface temp
KI-60495 = 37.0°c
4
TOOL
NO
3
