- Page 1 Programmable DC Power Supply KWR Series User Manual...
-
Page 2: Table Of Contents
Table of Contents Product Features............. Front Panel Description ........... Rear Panel Description ............ Operatinginstruction ........... 5 The External Size of the Power Supply ......8 Characteristics of the Votage Output ....... 9 Specifications ………………………...………….………....10 Communications ............11... -
Page 3: Product Features
KWR Series Wide Range Programmable DC Power Supply Product Features 0 30V/0 60V, 0 30A/0 15A, 300W wide range output 5 digit current and voltage display with high accuracy The voltage output slope can be set Convenient fast recall The OCP & OVP parameters can be set Various control interfaces: LAN, USB, RS232 &... -
Page 4: Front Panel Description

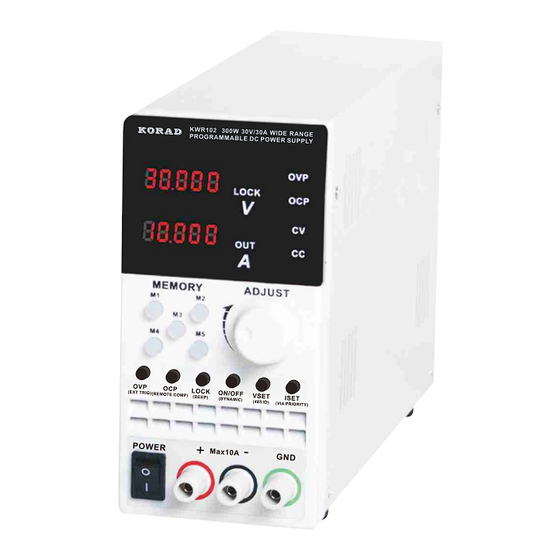

KWR Series Wide Range Programmable DC Power Supply Front Panel Description Key Lock Indicator OVP Indicator Voltage Display OCP Indicator Power Output Indicator C.V Indicator Current Display C.C Indicator LOCK ON/OFF VSET ISET EXT TR G ( BEEP ) 485 ID... -
Page 5: Rear Panel Description
KWR Series Wide Range Programmable DC Power Supply M1-M5 quick recall / storage function and Dynamic output function Press: turn off the flashing while setting Press and hold: set the slope and press again to exit the setting. And the unit is V/100uS. - Page 6 KWR Series Wide Range Programmable DC Power Supply AC input AC input 115V/230V switch SENSE TRIG IN GND SENSE:Remote Monitoring Port TRIG:trigger port Output terminal, max output current 30A USB communication port RS232 communication port RS232 Ethernet communication port...
-
Page 7: OperatingInstruction
KWR Series Wide Range Programmable DC Power Supply operatinginstruction 1.1 M1-M5 quick recall function Instruction: Short press M1 M5 keys to quickly recall the contents stored in 1 5. 1.2 M1-M5 quick storage function Instruction: Adjust the stored voltage and current value and long press the M key to store the current value in the memory of the selected M key. - Page 8 KWR Series Wide Range Programmable DC Power Supply Instruction: Long press the OVP key until there is a decimal point shown in the right corner of the last digital code of the voltage display digital tube, meaning that the external trigger function is activated. At this time, the power output can be turned on by shorting two rear interfaces of TRIG.
- Page 9 KWR Series Wide Range Programmable DC Power Supply function. At this time, M1 M5 key indicators are all off and M1 M5 show digits 1 5. Set the dynamic steps with M1 M5 digit combination. Step 2: When M1 M5 indicators are all off, Step 0 starts. At this time, the voltage is displayed as a dynamic cycle number and the current is displayed a dynamic step.
-
Page 10: The External Size Of The Power Supply
KWR Series Wide Range Programmable DC Power Supply The External Size of the Power Supply 305 mm... -
Page 11: Characteristics Of The Votage Output
KWR Series Wide Range Programmable DC Power Supply Characteristics of the Voltage Output The KWR power supplies are regulated DCpower supplies with a high voltage and current output. These operate in CC or CV mode within a wide operating range limited only by the output power. -
Page 12: Specifications
KWR Series Wide Range Programmable DC Power Supply Specifications Note: the specifications below are tested under the conditions of temperature 25℃ ±5℃ and the warm up for 5 minutes. Models KWR102 KWR103 POWER 300W 300W Voltage 0-30V 0-60V Current 0-30A... -
Page 13: Communications
KWR Series Wide Range Programmable DC Power Supply Communications COM setting Set up the COM port inside the PC according to the following list. Baud rate: 9600/19200/38400/57600/115200 (the factory baud rate of the power supply: 115200) Parity bit: None Data bit: 8... - Page 14 KWR Series Wide Range Programmable DC Power Supply STATUS05? Query the device status BIT0:CC/CV, BIT1:output, BIT2:V/C priority, BIT4:the buzzer, BIT5:LOCK, BIT6:OVP status, BIT7:OCP status. *IDN05? Query the serial No. of the device RCL05:5 Recall M5 as the current value (the value is 1 5)
- Page 15 KWR Series Wide Range Programmable DC Power Supply LIST0500? Query the times of repetitions of LIST and the number of dynamic values LIST0502:25.6, 2.5, 6.5, 5.8 Set the second dynamic value of LIST: voltage to be 25.6V, current 2.5A, slope 6.5V/100uS and time 5.8sQuery the voltage,...
- Page 16 KWR Series Wide Range Programmable DC Power Supply IASTOP05 Current stops automatically ISTEP05:1 Set the step current 1A IUP05 The step current set by the current increase IDOWN05 The step current set by the current decrease PRIORITY05:1 Set the priority of voltage and current, 0 is voltage priority while 1 is...
- Page 18 SHENZHEN KORAD TECHNOLOGY CO., LTD. Address:F3, Building A4, District B, Songbai Industrial Park, Guangming New District, Shenzhen, 518106, P.R.China. Tel: 86 755 23400685 Fax: 86 755 23400681 E mail: krissy@koradtechnology.com www.koradtechnology.com www.korad.com.cn...
