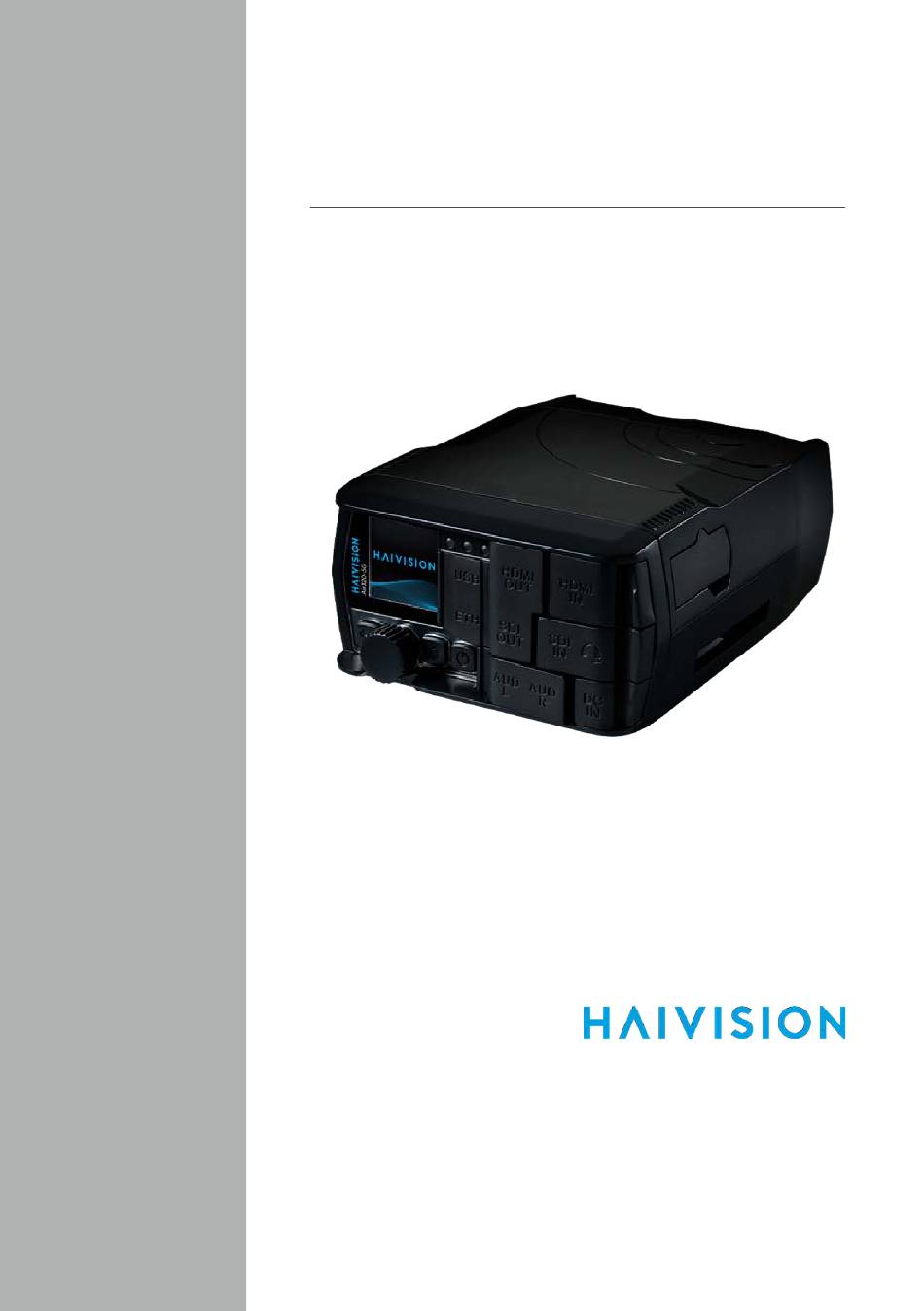

- Page 1 Air Series Quick Start Guide Document Version: v1.6 Parc Edonia, Bat. X1 Rue de la Terre de Feu 35769 Saint Grégoire Cedex France Tel: +33 2 56 56 50 14...
-
Page 3: Front View
Front View Indicators Battery Link HDMI 1.4 Output Activity HDMI 1.4 Input 3G-SDI Output Screen 3G-SDI Input Intercom DC IN Connector Back Button Analog Audio Selection Wheel Input/Output (right) Settings Button Analog Audio Input/ Output (left) Power Button Ethernet Rear View SD card slot 4 x micro SIM card slots :... -
Page 4: Getting Ready
Getting ready 1. Remove the rear cover. 1a. Press on top. 1a 1a 1b. Remove the cover. 1b 1b 2. Insert the battery (if not already installed). 3. Connect the AC/DC adapter to the unit and connect it to the power supply. - Page 5 5. Insert an SD card Class 10 recommended FAT32 or exFAT 6. Insert SIM cards into slots (Air220, Air220-5G and Air320e-5G). For modem 1: slot 1A or 1B For modem 2: slot 2A or 2B 7. Place the rear cover back. 8.
-
Page 6: Turning On The Unit
Turning on the unit Press the power button to turn the unit on. When the unit is ready, the home screen appears: Selecting a Video Source 1. Select and press to confirm. 2. Select and press to confirm. The default source is Auto. 3. - Page 7 Configuring a Destination Profile 1. Select and press to confirm. 2. Select and press to confirm. 3. Press to create a new Destination Profile. 4. Press to activate the keyboard and compose a name for the Destination Profile. 5. Select and press to confirm.
- Page 8 Starting a Live 1. Select and press to confirm. 2. Turn to the right to access the Live menu. The LIVE menu displays information: Selected Live Profile Selected Record Profile Auto-record (ON/ OFF) Selected Destination Profile 3. Turn to the left to select 4.
- Page 9 Starting a Record 1. Select and press to confirm. 2. Turn to access the RECORD menu. The Record menu displays information: Selected Record Profile Auto-record (ON/ OFF) Selected Destination Profile 3. Turn to the left to select 4. Press to start the record. Audio Levels Record Duration 5.
- Page 10 Starting a Forward 1. Select and press to confirm. The FORWARD menu appears: • To forward the last record: a) Turn to select b) Press to confirm. • To forward the all files: a) Turn to select b) Press to confirm. •...
-
Page 11: Turning Off The Unit
Turning off the unit Long press the power button to turn the unit off. All technical documents Find the user guide and all other technical documents on Haivision Info Center at https://doc.haivision.com.
