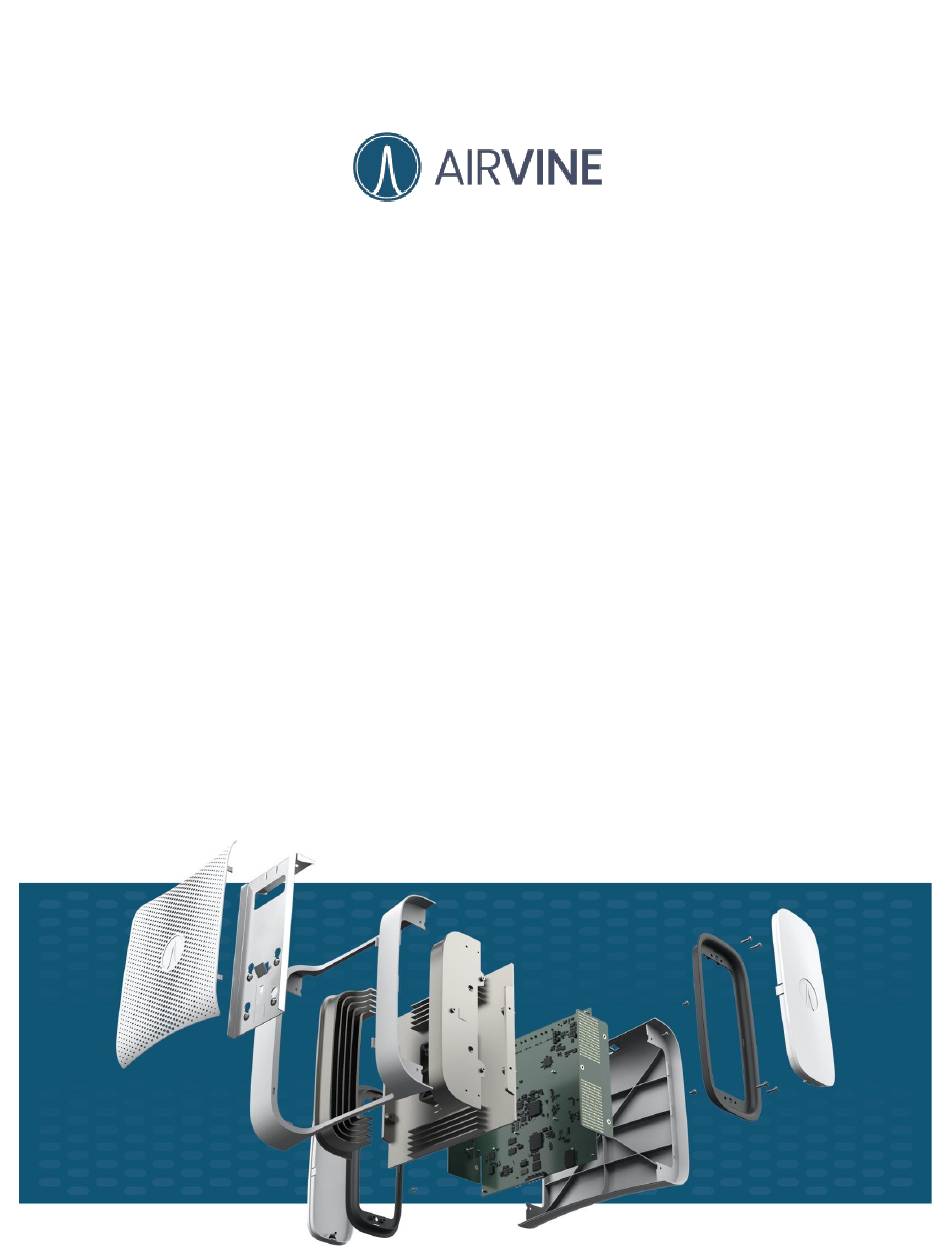

- Page 1 Airvine WaveTunnel ™ Bracket Installation Guide...
- Page 2 USER GUIDES WaveTunnel Bracket Installation Guide Find the location on the ceiling where you’d like to install the WaveTunnel. a. If mounting to a T-Bar ceiling, attach the T-Bar ceiling clips, and use the ¼-20 lock nuts to secure circular plate.
- Page 3 USER GUIDES Once you have the circular plate secured, lift the bracket into place and secure with the provided thumb screws. NOTE: Align the threaded studs with the curved slots in the bracket. DEC 2022...
- Page 4 USER GUIDES Adjust the angle as needed, then re-tighten the thumb screws. DEC 2022...
- Page 5 USER GUIDES If the WaveTunnel requires a power adapter, use the provided clip & screw to secure it to the side of the bracket. Power Adapter Bracket DEC 2022...
- Page 6 USER GUIDES Using the 4 keyhole slots, align and install the WaveTunnel to the bracket, by using the 4 keyhole slots. Remove the WaveTunnel by lifting the flex tab and sliding it forward, out of the keyhole slots. DEC 2022...
