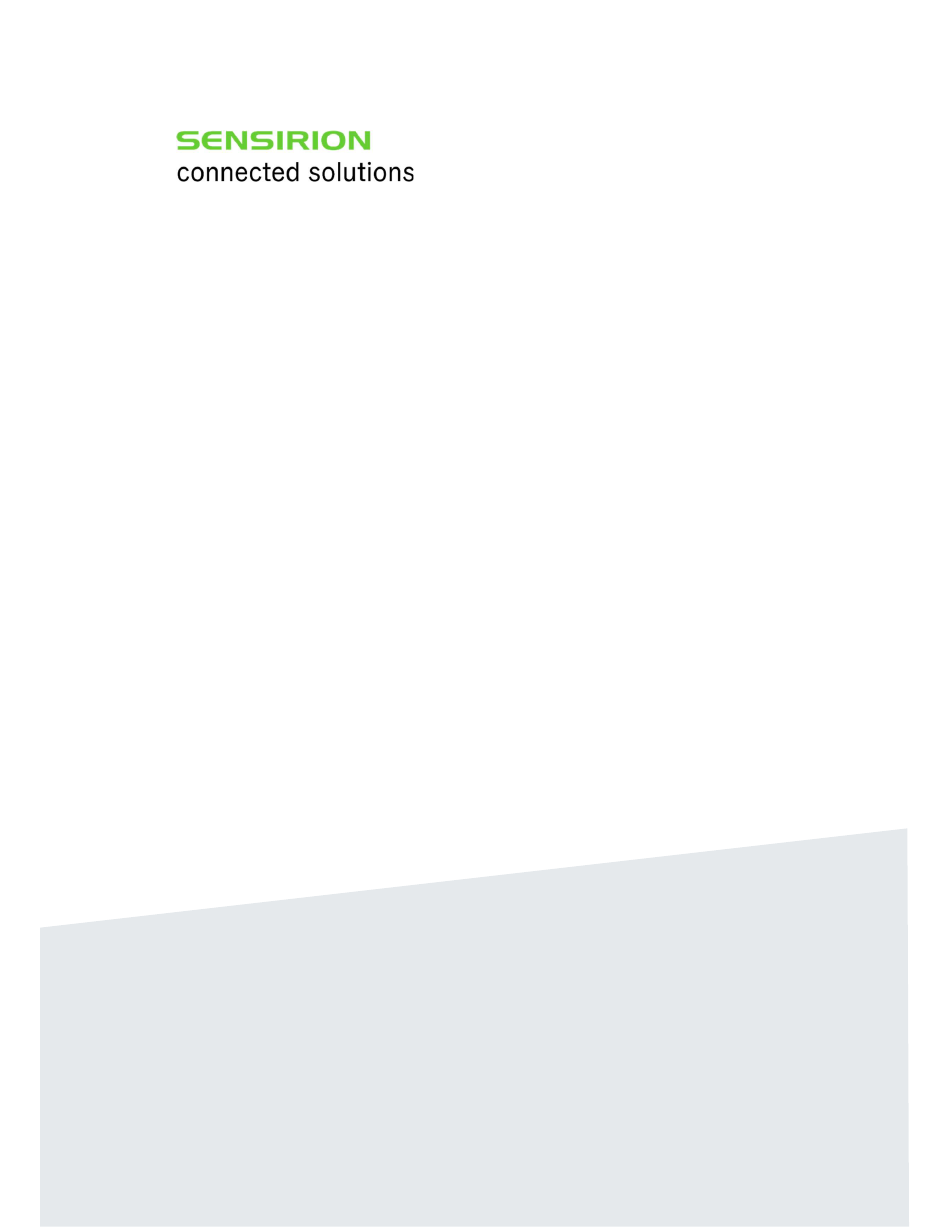

- Page 1 Nubo Sphere User Manual User Manual for Nubo Sphere Sensor Node & Wind Meter Continuous Methane Emissions Monitoring System Version 1.0 from March 23, 2023...
- Page 2 Copyright © 2023 Sensirion Connected Solution AG, Switzerland – All rights reserved IMPORTANT Safety Information Throughout the manual, you will find caution and warning statements that require you to take cautionary measures when working with the device to avoid damage to the device or personal injury. Please read the manual carefully and follow the procedures of operation as prescribed.
-
Page 3: Table Of Contents
Contents Introduction System description System operation overview Nubo Sphere system components and accessories Handling & mounting instructions General safety instructions Installation instructions 3.2.1 Node placement 3.2.2 Installing pole mounts 3.2.3 Node without wind meter 3.2.4 Node with wind meter Registering device to the cloud... -
Page 4: Introduction
Combining Sensirion’s market-leading environmental and air quality sensing expertise with our expertise in high- volume scaling solutions, the Nubo Sphere system offers high performance at a low total cost of ownership. The robust system design enables the acquisition of reliable and highly accurate data at any time. It is rapidly deployed and easy to use, and the two sensor cartridges ensure low maintenance expenses and provide a future-proof, sustainable setup. -
Page 5: System Description
2 System description 2.1 System operation overview The Nubo Sphere monitoring system consists of multiple Nubo sensor nodes, a cloud-based data analytics system and a user- and smartphone-friendly web interface. The node has two slots for sensing cartridges. The cartridges can be easily exchanged for maintenance or upgrading. -
Page 6: Nubo Sphere System Components And Accessories
Our experts can help you determine the optimum number of devices for your project. A package of one Nubo Sphere sensor node and one Nubo Sphere wind meter contains: © Sensirion Connected Solutions AG, Switzerland Version 1.0 –... -
Page 7: Handling & Mounting Instructions
Nubo sensor nodes are to be operated only with compatible sensor cartridges provided by Sensirion Connected Solutions AG. Do not modify the cartridge or install components not supplied by Sensirion Connected Solutions AG or components not explicitly marketed to be used with Nubo sensor nodes. -
Page 8: Installation Instructions
3.2.1 Node placement For the entire system to operate correctly, it is important to ensure that the Nubo Sphere sensor nodes are placed at the correct positions on your site. Please check with your sales representative before installation to determine exactly where the Nubo Sphere units and the wind meter should be placed and how the wind meter should be oriented. -
Page 9: Installing Pole Mounts
There are two installation variants to choose from, depending on the actual location. All sensor nodes are installed in conjunction with a solar panel. The necessary components are included in the Nubo Sphere sensor node package. In most situations, one node per site is equipped with an additional wind meter, which requires a Nubo Sphere wind meter package. -
Page 10: Node Without Wind Meter
Properly align the connector to the socket. Do not force the connection. Connecting the cable turns the device on automatically. Always tighten the union nut to ensure proper protection from water ingress. © Sensirion Connected Solutions AG, Switzerland Version 1.0 – D1 - Jun 22 10/22... - Page 11 It is the responsibility of the person installing the device to ensure a secure and safe installation. Sensirion Connected Solutions AG cannot be held liable for damage or injuries due to improper placement or installation.
-
Page 12: Node With Wind Meter
However, it is important to tighten the screws on the side to ensure safe and secure fixation of the system under all weather conditions. Do not overtighten the screws. © Sensirion Connected Solutions AG, Switzerland Version 1.0 – D1 - Jun 22 12/22... - Page 13 6. Connect the other end of the wind meter cable to the connector on the cartridge at the bottom of the Nubo Sphere sensor node. 7. Carefully align the wind meter (for correct alignment, the arrow and the red mark on the wind meter must point exactly toward another sensor node on the site).
- Page 14 It is the responsibility of the person installing the device to ensure secure and safe installation. Sensirion Connected Solutions AG cannot be held liable for damage or injuries due to improper placement or installation.
-
Page 15: Registering Device To The Cloud
7. Click on “Register Nubo.” If you cannot scan the device, you can alternatively enter the “Device ID” and the “Registration Key” manually by clicking on “Register Nubo Manually.” © Sensirion Connected Solutions AG, Switzerland Version 1.0 – D1 - Jun 22 15/22... -
Page 16: Before Leaving The Site
Note: new cartridges do not require any extra calibration or configuration. The device or system will configure the new cartridge automatically. © Sensirion Connected Solutions AG, Switzerland Version 1.0 – D1 - Jun 22 16/22... - Page 17 When removing the cartridge, only pull on the plastic parts. Never pull on the connector as doing so might adversely influence the water ingress protection. © Sensirion Connected Solutions AG, Switzerland Version 1.0 – D1 - Jun 22 17/22...
-
Page 18: General Handling
Only store the device when you are confident that the battery was well charged. © Sensirion Connected Solutions AG, Switzerland Version 1.0 – D1 - Jun 22... -
Page 19: Shipment
Do not ship if damage to the battery is suspected. Ensure that the box is properly labeled to comply with international law. © Sensirion Connected Solutions AG, Switzerland Version 1.0 – D1 - Jun 22 19/22... -
Page 20: Conformity Information
6 Conformity information 6.1 European conformity information Hereby, Sensirion Connected Solutions AG declares that this radio equipment is compliant with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at https://cloud.nubo-sphere.com/docs/eu- doc. 6.2 FCC notice Warning Do not open the device. -
Page 21: Frequency Band(S) And Maximum Radio-Frequency Power Transmitted
Maximum output power: 23 dBm rated LTE FDD Band 28 Operating frequency range: 758–803, 703–748 MHz Maximum output power: 23 dBm rated © Sensirion Connected Solutions AG, Switzerland Version 1.0 – D1 - Jun 22 21/22... -
Page 22: Important Legal Notices
Ancillary services required This product is part of the SCS continuous methane emission monitoring solution “Nubo Sphere” and requires the “Environmental Monitoring as a Service” (EMaaS) subscription available from SCS for proper functioning. SCS reserves the right, without further notice, (i) to change the product specifications or the information in this document, (ii) to improve the reliability, functions and design of this product and (iii) to modify the cloud service and data analytics algorithms.
