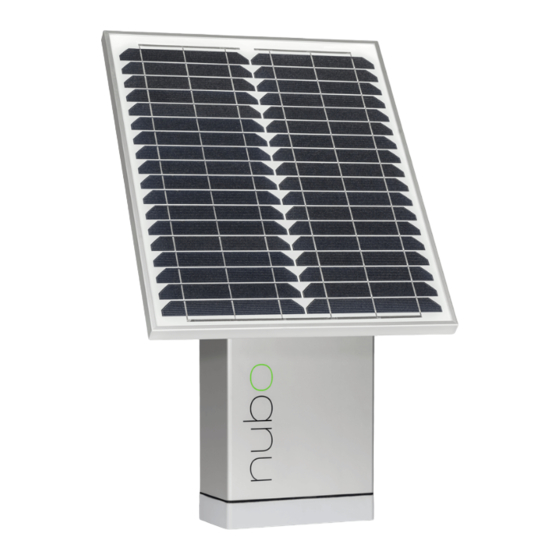

- Page 1 Nubo Sphere User Manual User Manual for Nubo Sphere Sensor Node (LTE MOx) & Wind Meter Continuous Methane Leakage Monitoring System Revision 0.2 from June 1, 2022...
- Page 2 Copyright © 2022 Sensirion Connected Solution AG, Switzerland – All rights reserved IMPORTANT Safety Information Throughout the manual, you will find caution and warning statements that require you to take cautionary measures when working with the device to avoid damage to the device or injury. Please read the manual carefully and follow the procedures of operation as prescribed.
-
Page 3: Table Of Contents
Contents Introduction System description System operation overview Nubo Sphere system components and accessories Handling & mounting instructions General safety instructions Installation instructions 3.2.1 Node placement 3.2.2 Installing pole mounts 3.2.3 Node without wind meter 3.2.4 Node with wind meter Registering device to cloud... -
Page 4: Introduction
Sensirion's market-leading environmental and air quality sensing know-how paired with our expertise in high- volume scaling solutions, the Nubo Sphere system offers high performance at low total cost of ownership. The robust system design enables the acquisition of reliable and highly accurate data at any time. It is rapidly deployed and easy to use, and the two sensor cartridges ensure low maintenance expenses and provide a future-proof, sustainable setup. -
Page 5: System Description
2 System description 2.1 System operation overview The Nubo Sphere monitoring system consists of multiple Nubo sensor nodes, a cloud-based data analytics system and a user- and mobile-friendly web interface. The node has two slots for sensing cartridges. The cartridges can be easily exchanged for maintenance or upgrading. -
Page 6: Nubo Sphere System Components And Accessories
Our experts can help you determine the optimum number of devices for your project. Package contents of one Nubo Sphere sensor node and one Nubo Sphere wind meter: © Sensirion Connected Solutions AG, CH Rev. -
Page 7: Handling & Mounting Instructions
• Nubo sensor nodes are to be operated only with compatible sensor cartridges provided by Sensirion Connected Solutions AG. Do not modify the cartridge and/or install components not supplied by Sensirion Connected Solutions AG or components not explicitly marketed to be used with Nubo sensor nodes. -
Page 8: Installation Instructions
Node placement For the entire system to operate correctly, it is important to ensure that the Nubo Sphere sensor nodes are placed at the correct positions on your site. Please check with your point of sales before installation to determine exactly where the Nubo Sphere units and the wind meter should be placed. -
Page 9: Installing Pole Mounts
There are two installation variants, depending on the actual location. All sensor nodes are installed in conjunction with a solar panel. The necessary components are included in the Nubo Sphere sensor node package. In most situations, one node per site is equipped with an additional wind meter, which requires a Nubo Sphere wind meter package. -
Page 10: Node Without Wind Meter
5. Connect the solar panel to the cable power plug of the sensor node. Connecting the cable turns the device on automatically. Always tighten the union nut to ensure proper protection from water ingress. © Sensirion Connected Solutions AG, CH Rev. 0.2 – D1 - Jun 22 10/21... - Page 11 • It is the responsibility of the person installing the device to ensure secure and safe installation. Sensirion Connected Solutions AG cannot be held liable for damages and/or injuries due to improper placement or installation.
-
Page 12: Node With Wind Meter
(the red mark on the wind meter should point toward another sensor node installed on the site). Fix the wind meter with the two supplied screws. © Sensirion Connected Solutions AG, CH Rev. 0.2 – D1 - Jun 22 12/21... - Page 13 6. Connect the other end of the wind meter cable to the connector on the cartridge at the bottom of the Nubo Sphere sensor node. 7. Finely align the wind meter (for correct alignment, the arrow and the red mark on the wind meter must point exactly toward another sensor node on the site).
-
Page 14: Registering Device To Cloud
7. Click on "Register Nubo" If you cannot scan the device, you can alternatively enter the "Device ID" and the "Registration Key" manually by clicking on "Register Nubo Manually." © Sensirion Connected Solutions AG, CH Rev. 0.2 – D1 - Jun 22 14/21... -
Page 15: Before Leaving The Site
• When removing the cartridge, only pull on the plastic parts. Never pull on the connector as doing so might adversely influence the water ingress protection. © Sensirion Connected Solutions AG, CH Rev. 0.2 – D1 - Jun 22 15/21... -
Page 16: General Handling
When storing the device, please always ensure that the protective cap is securely placed on the power connector to protect the pins and avoid corrosion. © Sensirion Connected Solutions AG, CH Rev. 0.2 – D1 - Jun 22 16/21... -
Page 17: Shipment
6 months to prevent battery damage • Do not ship if damage to the battery is suspected. Ensure that the box is properly labelled to comply with international law. © Sensirion Connected Solutions AG, CH Rev. 0.2 – D1 - Jun 22 17/21... -
Page 18: Conformity Information
6 Conformity information 6.1 European conformity information Hereby, Sensirion Connected Solutions AG declares that this radio equipment is compliant with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at https://cloud.nubo-sphere.com/docs/eu- doc. 6.2 FCC notice Warning Do not open the device. -
Page 19: Frequency Band(S) And Maximum Radio-Frequency Power Transmitted
Maximum output power: 23 dBm rated ▪ LTE FDD Band 28 ▪ Operating frequency range: 758–803, 703–748 MHz ▪ Maximum output power: 23 dBm rated ▪ © Sensirion Connected Solutions AG, CH Rev. 0.2 – D1 - Jun 22 19/21... -
Page 20: Important Legal Notices
Warranty SENSIRION warrants solely to the original Buyer of this product for a period of 12 months (one year) from the date of delivery that this product shall be of the quality, material and workmanship defined in SCS' published specifications of the product. Within such period, if proven to be defective, SCS shall repair and/or replace this product, at SENSIRION's discretion, free of charge to the Buyer, provided that •... -
Page 21: Revision History
11 East Adams Suite 220 10178 Berlin Chicago, IL 60603 Germany phone: +1 312 690 5858 phone: +49 30 403 633 99 info@sensirion.com info@aisight.de sensirion-connected.com aisight.de © Sensirion Connected Solutions AG, CH Rev. 0.2 – D1 - Jun 22 21/21...
