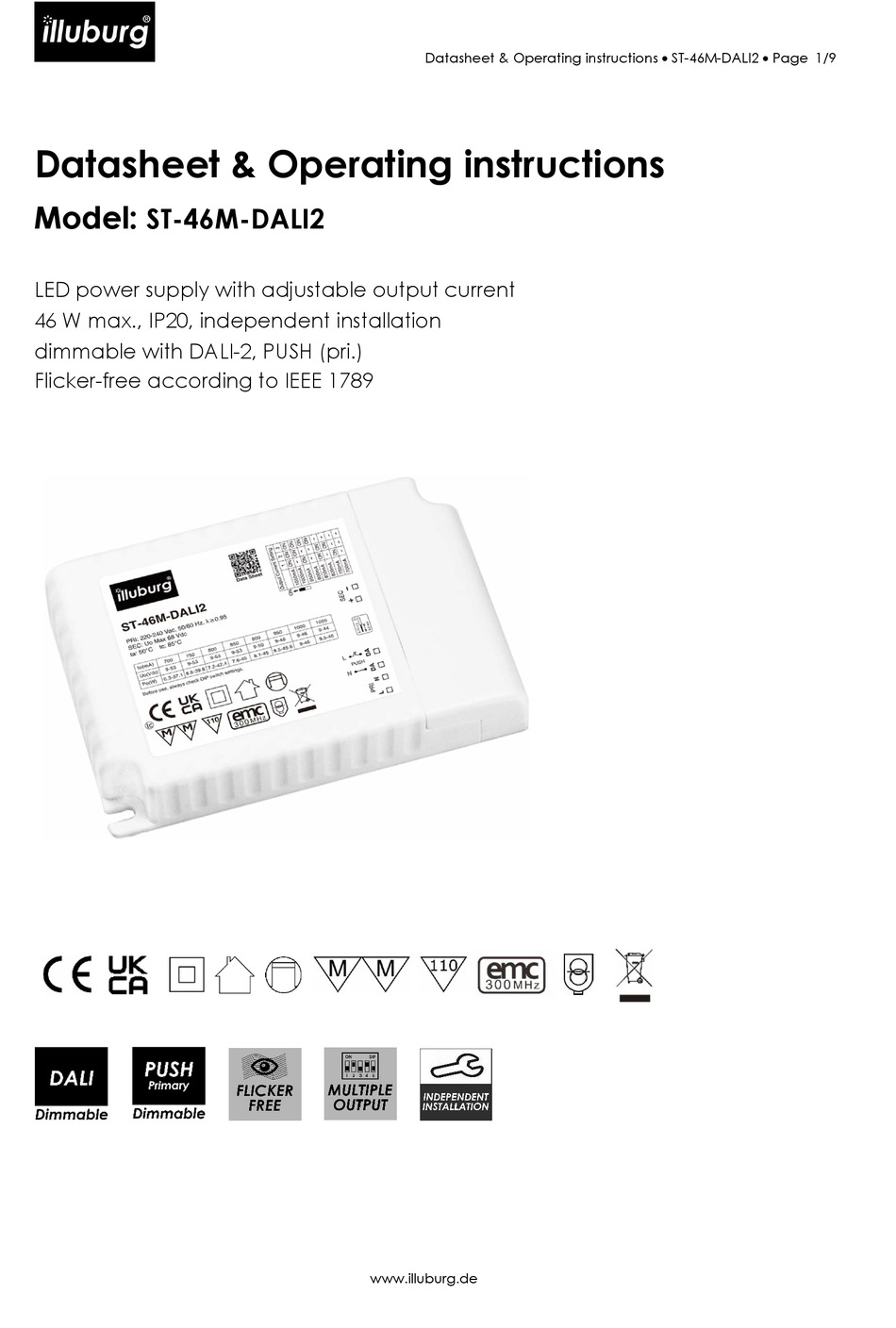

Datasheet & Operating instructions  ST-46M-DALI2  Page 1/9
Datasheet & Operating instructions
Model:
ST-46M-DALI2
LED power supply with adjustable output current
46 W max., IP20, independent installation
dimmable with DALI-2, PUSH (pri.)
Flicker-free according to IEEE 1789
www.illuburg.de

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ST-46M-DALI2 and is the answer not in the manual?

Questions and answers

Related Manuals for illuburg ST-46M-DALI2

Summary of Contents for illuburg ST-46M-DALI2

  • Page 1 Datasheet & Operating instructions  ST-46M-DALI2  Page 1/9 Datasheet & Operating instructions Model: ST-46M-DALI2 LED power supply with adjustable output current 46 W max., IP20, independent installation dimmable with DALI-2, PUSH (pri.) Flicker-free according to IEEE 1789 www.illuburg.de...

  • Page 2: Safety Instructions

    Datasheet & Operating instructions  ST-46M-DALI2  Page 2/9 Safety Instructions • Be sure to switch off the mains voltage before assembly and disassembly. • Please keep this product away from children and pets. • Do not place this product under any mechanical stress.

  • Page 3: Intended Use

    Datasheet & Operating instructions  ST-46M-DALI2  Page 3/9 Intended use The LED power supply is a power supply device specially designed for LED lighting. For safety and approval purposes (CE), you must not rebuild and/or modify this product. If you use this product for purposes other than those described above, the product may be damaged.

  • Page 4: Exploded View

    Datasheet & Operating instructions  ST-46M-DALI2  Page 4/9 Exploded view www.illuburg.de...

  • Page 5: Electrical Data

    Datasheet & Operating instructions  ST-46M-DALI2  Page 5/9 Electrical data Rated input voltage 220...240 Vac Range of input voltage 198...264 Vac Range of input voltage (DC) 200...240 Vdc Mains frequency 50/60 Hz Power factor (λ) Full Load, 230 Vac ≥0.95...

  • Page 6: Installation

    Datasheet & Operating instructions  ST-46M-DALI2  Page 6/9 Protection Short circuit protection Overvoltage protection Yes * Overheating protection (*) The output shuts off and will be resumed, after problem is removed and led driver is restarted. Standards Standards EN 61347-1, EN 61347-2-13...
  • Page 7 Datasheet & Operating instructions  ST-46M-DALI2  Page 7/9 Dimension Connection www.illuburg.de...
  • Page 8 Datasheet & Operating instructions  ST-46M-DALI2  Page 8/9 Control via PUSH Button Action Duration Status Function LED on Turn off LED Short press once < 0.5 s LED off Turn on LED with latest brightness setting Dim the brightness up / down.
  • Page 9 Datasheet & Operating instructions  ST-46M-DALI2  Page 9/9 Make sure there is a clearance of at least 15cm between the LED driver and other heat sources, e.g., other LED power supplies, lamps/LEDs etc. A distance of at least 5cm between the LED power supply and other non-heat-producing objects/surfaces is required.
