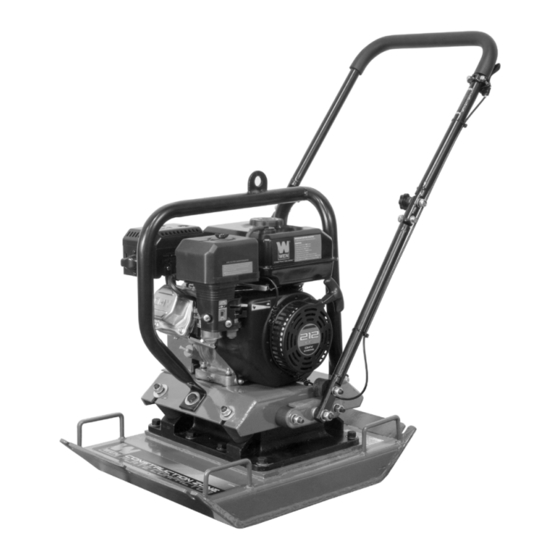

Wen 56035T Instruction Manual

Plate compactor
Hide thumbs Also See for 56035T:
Table of Contents

Advertisement

Quick Links

MODEL 56035T
PLATE COMPACTOR
Instruction Manual
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel free to contact us:
1-847-429-9263 (M-F 8AM-5PM CST)
TECHSUPPORT@WENPRODUCTS.COM
IMPORTANT: Your new tool has been engineered and manufactured to WEN's highest standards for dependability,
ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged,
trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use
your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.
WENPRODUCTS.COM
For replacement parts and the most up-to-date instruction manuals, visit

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 56035T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wen 56035T

Summary of Contents for Wen 56035T

  • Page 1 1-847-429-9263 (M-F 8AM-5PM CST) TECHSUPPORT@WENPRODUCTS.COM IMPORTANT: Your new tool has been engineered and manufactured to WEN’s highest standards for dependability, ease of operation, and operator safety. When properly cared for, this product will supply you years of rugged, trouble-free performance. Pay close attention to the rules for safe operation, warnings, and cautions. If you use your tool properly and for its intended purpose, you will enjoy years of safe, reliable service.

  • Page 2: Table Of Contents

    CONTENTS WELCOME Specifications ....................3 Introduction ..................... 3 Service Record ....................4 SAFETY General Safety Rules ..................5 Plate Compactor Safety Warnings ..............7 BEFORE OPERATING Know Your Plate Compactor ................8 Assembly & Adjustments ................. 9 Plate Compactor Preparation ................9 OPERATION &...

  • Page 3: Specifications

    INTRODUCTION Thanks for purchasing the WEN Plate Compactor. We know you are excited to put your tool to work, but first, please take a moment to read through the manual. Safe operation of this tool requires that you read and understand this operator’s manual and all the labels affixed to the tool.

  • Page 4: Service Record

    If assistance for information or service is required, please contact cus- tomer service by calling 1-847-429-9263, M-F 8-5 CST; you will be asked to provide the following information when calling. Plate Compactor Model Number: 56035T Date of Purchase: _______________________________________________ Purchased From: ________________________________________________...

  • Page 5: General Safety Rules

    GENERAL SAFETY RULES WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
  • Page 6 GENERAL SAFETY RULES WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Safety is a combination of common sense, staying alert and knowing how your item works. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

  • Page 7: Plate Compactor Safety Warnings

    7. Do not use the unit in rainy or damp conditions. 20. Never use accessories or attachments that are not 8. Do not allow children or non-qualified persons to op- recommended by WEN for this model of plate compac- erate the plate compactor. tor.

  • Page 8: Know Your Plate Compactor

    KNOW YOUR PLATE COMPACTOR UNPACKING With the help of a friend or trustworthy foe, such as one of your in-laws, carefully remove the plate compactor from the packaging and place it on a sturdy, flat surface. Make sure to take out all contents and accessories. Do not dis- card the packaging until everything is removed.

  • Page 9: Assembly & Adjustments

    ASSEMBLY & ADJUSTMENTS NOTE: In order to best protect the plate compactor while in the package, this product comes with some compo- nents disassembled. Please complete the following assembly steps before proceeding to use the plate compac- tor. WARNING! This plate compactor is heavy. Some procedures may require lifting equipment or two people. HANDLE ASSEMBLY Fig.
  • Page 10 PLATE COMPACTOR PREPARATION FILLING THE CRANKCASE WITH OIL Fig. 3 1. Make sure the plate compactor is on a sturdy, flat surface. Tilting the plate compactor to assist in filling the oil will cause oil to flow into engine areas and may cause damage. Keep the plate compactor level! 2.

  • Page 11: Operation

    PLATE COMPACTOR PREPARATION ENGINE BREAK-IN PROCEDURE Conduct the following when you receive your plate compactor in order to prolong the engine’s service life. This procedure helps to seat the piston rings properly in the cylinder, and will reduce overall wear on the engine. After the first 8 hours of operation, change the oil, then change it again after the first 25 hours.
  • Page 12 A special polyurethane pad (Item no. 56035-047) designed for this purpose is available as an optional accessory and can be purchased at www.wen- products.com or by calling 1-847-429-9263 (M-F 8-5 CST).
  • Page 13 OPERATION To avoid injury, keep hands, fingers, and feet away from the compactor base. Grip the handle of the compactor firmly with both hands. Adjust the throttle lever between its “MIN” to “MAX” position, depending on the desired vibration speed. IMPORTANT! The plate compactor should not be used for more than two hours at a time without any breaks to cool down, as the heat of operation may cause the lubricant in the bearings to liquefy, which could leak out and cause the vibrating assembly to seize or break.

  • Page 14: Maintenance

    OPERATION STOPPING THE PLATE COMPACTOR 1. Move the throttle lever to the “MIN” position to disengage the compactor. 2. Turn the fuel valve to the “OFF” position. Let the engine run until all fuel in the carburetor is consumed and the engine shuts down automatically.
  • Page 15 MAINTENANCE CLEANING THE PLATE COMPACTOR Never clean the plate compactor when it is running! If the plate compactor becomes dirty, clean the exterior with a damp cloth, a soft brush, or a vacuum / pressurized air. CHECKING THE OIL Check the oil level of the engine according to the Recommended Maintenance Schedule. The engine is equipped with an automatic shutoff to protect it from running with low oil pressure.
  • Page 16 MAINTENANCE AIR CLEANER MAINTENANCE Fig. 13 Routine maintenance of the air cleaner helps maintain proper air flow to the carburetor. Check that the air cleaner is free of excessive dirt. 1. Remove the air cleaner cover (Fig. 13 - 1). Remove both elements and inspect them for holes or tears.
  • Page 17 MAINTENANCE DRAINING THE FUEL TANK Fig. 17 Clean the fuel tank each year or before storing the plate compactor for extended periods of time. To drain the fuel tank and carburetor: 1. Turn the fuel valve (Fig. 17 - 1) to the “OFF” position. 2.
  • Page 18 MAINTENANCE CLEANING THE SPARK ARRESTOR Fig. 21 1. Let the engine and muffler cool completely. 2. Remove the two Philips-head screws (Fig. 21 - 1) and the deflector cover (Fig. 21 - 2). 3. Use a wire brush to clean the spark arrestor screen (Fig. 22 - 1). LUBRICATING THE VIBRATING ASSEMBLY BEARINGS Check the vibrating assembly bearings every 50 hours (more often if the plate compactor is used heavily or used in high temperatures) and add...

  • Page 19: Troubleshooting Guide

    TROUBLESHOOTING GUIDE WARNING! Stop using the plate compactor immediately if any of the following problems occur or risk seri- ous personal injury. If you have any questions, please contact customer service at 1-847-429-9263 (M-F 8-5 CST), or email techsupport@wenproducts.com. PROBLEM CAUSE SOLUTION 1.

  • Page 20: Exploded View & Parts List

    EXPLODED VIEW & PARTS LIST NOTE: Replacement parts can be purchased from wenproducts.com, or by calling our customer service at 1-847-429-9263, M-F 8-5 CST. Parts and accessories that wear down over the course of normal use are not covered by the two-year warranty. Not all parts may be available for purchase. VIBRATOR ASSEMBLY Part Number Description...
  • Page 21 EXPLODED VIEW & PARTS LIST PLATE COMPACTOR...
  • Page 22 EXPLODED VIEW & PARTS LIST PLATE COMPACTOR Part No. Description Spec Qty. Part No. Description Spec Qty. 56035-E-000 Engine 56035-003 Washer 12*35 56035-147 5*40 56035-032 Shock Absorber 56035-020 Pulley 56035-028 Washer Ø12 56035-019 Washer M8×30×6 56035-027 Spring Washer Ø12 56035-018 Spring Washer Ø...
  • Page 23 EXPLODED VIEW & PARTS LIST Fig. 1 - Cylinder Head Assembly Part No. Description Qty. Fig. 2 - Crankcase Assembly 1 - 1 56035-E-001 Cylinder Head Gasket Part No. Description Qty. Cylinder Head Cover 1 - 2 P54066 Crankcase Assembly 2 - 1 56035-E-012 Subassembly...
  • Page 24 EXPLODED VIEW & PARTS LIST Fig. 6 - Valve / Camshaft Part No. Description Qty. 6 - 1 P54146 Camshaft Assembly 6 - 3 P54150 Valve 6 - 5 56035-E-043 Valve Spring Seat Fig. 4 - Crankshaft 6 - 6 P54160 Valve Lock Clamp Part No.
  • Page 25 EXPLODED VIEW & PARTS LIST Fig. 9 - Carburetor Assembly Part No. Description Qty. 9 - 1 56035-E-067 Carburetor Assembly Fig. 8 - Shroud 9 - 2 56035-E-068 Air Cleaner Gasket Part No. Description Qty. 9 - 3 P54166 Carburetor Gasket 8 - 1 P54668 Shroud...
  • Page 26 13 - 3 P54634 Impeller 12 - 2 56035-E-079 Fuel Strainer Flywheel 13 - 4 P54636 12 - 3 56035T-1203 Fuel Tank Cover Subassembly Fuel Tank Oil 13 - 5 56035-E-091 Ignition Coil 12 - 4 56035-E-081 Outlet Subassembly 13 - 6...

  • Page 27: Warranty Statement

    Contact techsupport@wenproducts.com or 1-847-429-9263 with the following information to make arrangements: your shipping address, phone number, serial number, required part numbers, and proof of purchase. Damaged or defective parts and products may need to be sent to WEN before the replacements can be shipped out.
  • Page 28 THANKS FOR REMEMBERING V. 2023.02.01...
