Risk of electric shock!
Do not open!
Terminals marked with this symbol carry electrical current of suffi cient magnitude to constitute risk of electric shock.
Use only high-quality professional speaker cables with ¼" TS or twist-locking plugs pre-installed. All other installation or modifi cation should be performed only by qualified personnel.
This symbol, wherever it appears, alerts you to the presence of uninsulated dangerous voltage inside the enclosure - voltage that may be suffi cient to constitute a risk of shock.
This symbol, wherever it appears, alerts you to important operating and maintenance instructions in the accompanying literature. Please read the manual.
To reduce the risk of electric shock, do not remove the top cover (or the rear section). No user serviceable parts inside. Refer servicing to qualified personnel.
To reduce the risk of fire or electric shock, do not expose this appliance to rain and moisture. The apparatus shall not be exposed to dripping or splashing liquids and no objects filled with liquids, such as vases, shall be placed on the apparatus.
These service instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operation instructions. Repairs have to be performed by qualified service personnel.
TECHNICAL SPECIFICATIONS AND APPEARANCES ARE SUBJECT TO CHANGE WITHOUT NOTICE AND ACCURACY IS NOT GUARANTEED. BEHRINGER, KLARK TEKNIK, MIDAS, BUGERA, AND TURBOSOUND ARE PART OF THE MUSIC GROUP (MUSIC-GROUP.COM). ALL TRADEMARKS ARE THE PROPERTY OF THEIR RESPECTIVE OWNERS. MUSIC GROUP ACCEPTS NO LIABILITY FOR ANY LOSS WHICH MAY BE SUFFERED BY ANY PERSON WHO RELIES EITHER WHOLLY OR IN PART UPON ANY DESCRIPTION, PHOTOGRAPH OR STATEMENT CONTAINED HEREIN. COLORS AND SPECIFICATIONS MAY VARY FROM ACTUAL PRODUCT. MUSIC GROUP PRODUCTS ARE SOLD THROUGH AUTHORIZED FULLFILLERS AND RESELLERS ONLY.
FULLFILLERS AND RESELLERS ARE NOT AGENTS OF MUSIC GROUP AND HAVE ABSOLUTELY NO AUTHORITY TO BIND MUSIC GROUP BY ANY EXPRESS OR IMPLIED UNDERTAKING OR REPRESENTATION. THIS MANUAL IS COPYRIGHTED. NO PART OF THIS MANUAL MAY BE REPRODUCED OR TRANSMITTED IN ANY FORM OR BY ANY MEANS, ELECTRONIC OR MECHANICAL, INCLUDING PHOTOCOPYING AND RECORDING OF ANY KIND, FOR ANY PURPOSE, WITHOUT THE EXPRESS WRITTEN PERMISSION OF MUSIC GROUP IP LTD.

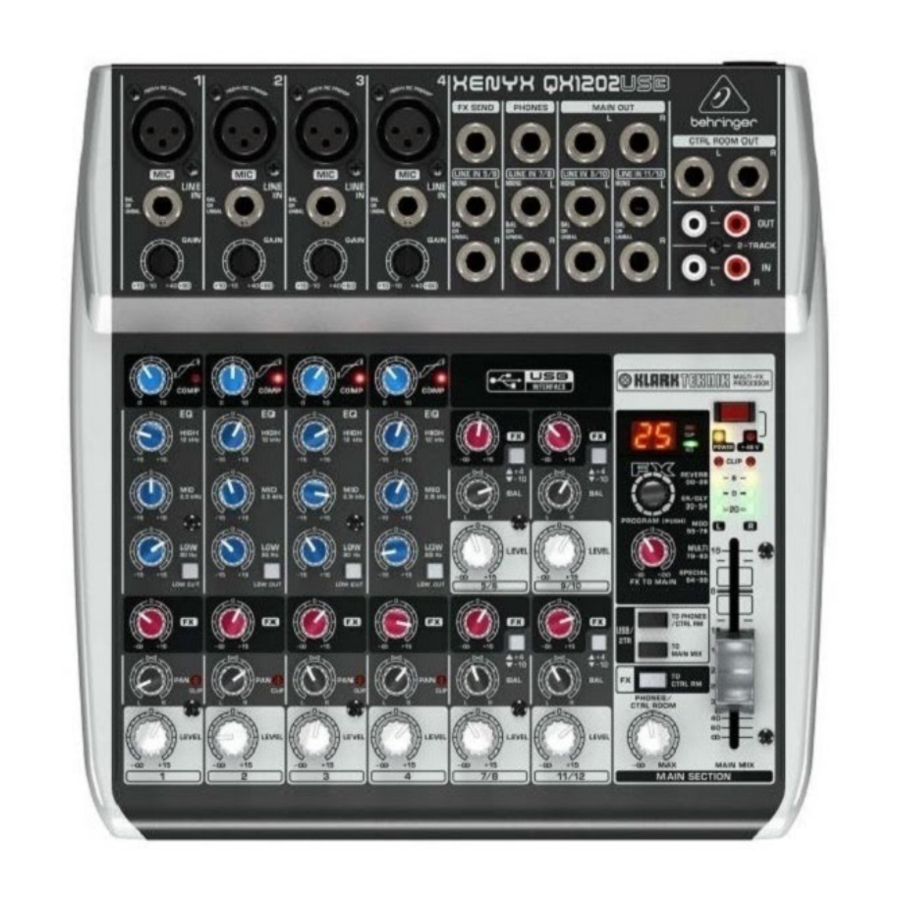

The XENYX Series represents a milestone in the development of mixing console technology. With the new XENYX microphone preamps including phantom power as an option, balanced line inputs and a powerful effects section, the mixing consoles in the XENYX Series are optimally equipped for live and studio applications. Owing to state-of-the-art circuitry your XENYX console produces a warm analog sound that is unrivalled. With the addition of the latest digital technology these best-in-class consoles combine the advantages of both analog and digital technology.
The microphone channels feature high-end XENYX Mic Preamps that compare well with costly outboard preamps in terms of sound quality and dynamics and boast the following features:
The equalizers used for the XENYX Series are based on the legendary circuitry of top-notch consoles made in Britain, which are renowned throughout the world for their incredibly warm and musical sound character. Even with extreme gain settings these equalizers ensure outstanding audio properties.
Additionally, your XENYX mixing console has a KLARK TEKNIK effects processor with 24-bit A/D and D/A converters included, which gives you 100 presets producing first-class reverb, delay and modulation effects plus numerous multi-effects in excellent audio quality.
A mixing console fulfils three main functions:
The interface of BEHRINGER mixing consoles is optimized for these tasks, enabling you to easily keep track of the signal path.
Shipment
Your mixing console was carefully packed in the factory to guarantee safe transport. Nevertheless, we recommend that you carefully examine the packaging and its contents for any signs of physical damage that may have occurred during transit.
Be sure that there is enough space around the unit for cooling purposes and to avoid overheating please do not place your mixing console on high-temperature equipment such as radiators or power amps.
Please register your new BEHRINGER equipment right after your purchase by visiting http://behringer.com and read the terms and conditions of our warranty carefully.
Should your BEHRINGER product malfunction, it is our intention to have it repaired as quickly as possible. To arrange for warranty service, please contact the BEHRINGER retailer from whom the equipment was purchased. Should your BEHRINGER dealer not be located in your vicinity, you may directly contact one of our subsidiaries. Corresponding contact information is included in the original equipment packaging (Global Contact Information/European Contact Information). Should your country not be listed, please contact the distributor nearest you. A list of distributors can be found in the support area of our website (http://behringer.com).
This chapter describes the various control elements of your mixing console. All controls, switches and connectors will be discussed in detail.
Fig. 2.1: Connectors and controls on the mono channels
Each mono input channel offers a balanced microphone input via the XLR connector and also features switchable +48 V phantom power supply for condenser microphones. The XENYX preamps provide undistorted and noise-free gain as is typically known only from costly outboard preamps.
Each mono input also features a balanced line input on a ¼" connector.
Unbalanced devices (mono connectors) can also be connected to these inputs.
Use the GAIN control to adjust the input gain. This control should always be turned fully counterclockwise whenever you connect or disconnect a signal source to one of the inputs.
The scale has 2 different value ranges: the first value range (+10 to +60 dB) refers to the MIC input and shows the amplification for the signals fed in there.
The second value range (-10 to +40 dBu) refers to the line input and shows its sensitivity. The settings for equipment with standard line-level signals (-10 dBV or +4 dBu) look like this: While the GAIN control is turned all the way down, connect your equipment. Set the GAIN control to the external devices' standard output level. If that unit has an output signal level display, it should show 0 dB during signal peaks. For +4 dBu, turn up GAIN slightly, for -10 dBV a bit more. Tweaking is done using the CLIP LED.
Use the COMP knob to adjust the amount of compression effect on the channel. Compression limits the dynamic range of the audio source, which can help vocals cut through a mix better, for example. Turn the COMP knob clockwise until the adjacent LED occasionally lights during speech/singing.
All mono input channels include a 3-band equalizer. All bands provide boost or cut of up to 15 dB. In the central position, the equalizer is inactive.
The circuitry of the British EQs is based on the technology used in the best-known top-of-the-line consoles and providing a warm sound without any unwanted side effects. The result are extremely musical equalizers which, unlike simple equalizers, cause no side effects such as phase shifting or bandwidth limitation, even with extreme gain settings of ±15 dB.
The upper (HIGH) and the lower band (LOW) are shelving filters that increase or decrease all frequencies above or below their cut-off frequency. The cut-off frequencies of the upper and lower band are 12 kHz and 80 Hz respectively. The mid band is configured as a peak filter with a center frequency of 2.5 kHz. Unlike shelving filters, the peak filter processes a frequency range that extends upwards and downwards around its middle frequency.
In addition, the mono channels are equipped with a steep LOW CUT filter designed to eliminate unwanted low-frequency signal components. These can be noises created by hand-held microphones, subsonic noise or plosive sounds created by highly sensitive microphones.
FX sends enable you to feed signals via a variable control from one or more channels and sum these signals to a bus. The bus appears at the console's FX send output and can be fed from there to an external effects device. The return from the effects unit is then brought back into the console on the stereo channels. Each FX send is mono and features up to +15 dB gain.
As the name suggests, the FX sends of the XENYX mixing consoles are intended to drive effects devices (reverb, delay, etc.) and are therefore configured post-fader. With XENYX mixing consoles, the channel fader is called LEVEL control.
In the QX1002/1202USB, the FX send is routed directly to the built-in effects processor. To make sure that the effects processor receives an input signal, you shouldn't turn this control all the way to the left (-∞).
The PAN control determines the position of the channel signal within the stereo image. This control features a constant-power characteristic, which means the signal is always maintained at a constant level, irrespective of position in the stereo panorama.
The LEVEL control determines the level of the channel signal in the main mix.
The CLIP-LED's of the mono channels illuminate when the input signal is driven too high, which could cause distortion. If this happens, use the GAIN control to reduce the preamp level until the LED does not light anymore.
Fig. 2.2: Connectors and controls on the stereo channels
Each stereo channel has two balanced line level inputs on ¼" connectors for left and right channels. If only the connector marked "L" (left) is used, the channel operates in mono. The stereo channels are designed to handle typical line level signals. Both inputs will also accept unbalanced connectors.
The FX send of the stereo channels functions similar to that of the mono channels. However, since the FX send bus is mono, a mono sum is first taken from the stereo input before it is sent to the FX bus.
The BAL(ANCE) control determines the levels of left and right input signals relative to each other before both signals are then routed to the main stereo mix bus. If a channel is operated in mono via the left line input, this control has the same function as the PAN control used in the mono channels.
The LEVEL control determines the volume of the channel being sent to the main mix.
The stereo inputs of the XENYX have an input sensitivity switch which selects between +4 dBu and -10 dBV. At -10 dBV (home-recording level), the input is more sensitive (requires less level to drive it) than at +4 dBu (studio level).
Fig. 2.3: Connectors of the main section
The FX SEND connector outputs the signal you picked up from the individual channels using the FX controls. You can connect this to the input of an external effects device in order to process the FX bus' master signal. Once an effects mix is created, the processed signal can then be routed from the effects device outputs back into a stereo input.
The stereo PHONES connector (at the top of the connector panel) is where headphones are connected. The unbalanced CTRL ROOM OUT connectors carry the summed effects and main mix signals. The PHONES/CONTROL ROOM control in the main section adjusts the level of both headphones and main monitor outputs.
The MAIN OUT connectors are balanced mono connectors. The main mix signal appears here at a level of 0 dBu. The MAIN MIX fader adjusts the volume of these outputs.
The 2-TRACK INPUTs are used to bring an external signal source (e.g. CD player, tape deck, etc.) into the console. They can also be used as a standard stereo line input, so the output of a second XENYX or BEHRINGER ULTRALINK PRO MX882 can be connected. Alternatively the line or tape output of a hi-fi amplifier with source selection switch could also be hooked up here, allowing you to easily listen to additional sources (e.g. CD player, MP3 player, sound card etc.).
These connections are laid out as RCA connectors and are wired parallel to MAIN OUT. Connect the inputs of a computer sound card or a recorder here. The output signal level is set up using the highly accurate MAIN MIX fader.
Fig. 2.4: Control elements of the main section
The red "+48 V" LED lights up when the phantom power is turned on. Phantom power is required to operate condenser microphones and is activated using the +48 V switch located above the +48 V LED.
The POWER LED indicates that the console is powered on.
The 4-segment display accurately displays the relevant signal level.
LEVEL SETTING:
To correctly set the gains of the channels, first set the LEVEL controls of the input channels to their center positions. Then use the GAIN controls to increase the input amplification until signal peaks show 0 dB on the level meter.
When recording to digital recorders, the recorder's peak meter should not go into overload. While analog recorders can be overloaded to some extent, creating only a certain amount of distortion, digital recorders distort quickly when overloaded. In addition, digital distortion is not only undesirable, but also renders your recording completely useless.
Use the MAIN MIX fader to adjust the volume of the main out.
Use the PHONES/CONTROL ROOM control to adjust the signal level of the CONTROL ROOM and PHONES outputs.
When the USB/2TR TO MAIN MIX switch is pressed, the 2-Track and USB inputs are assigned to the main mix, providing an additional input for MP3 players, computers, MIDI instruments or other signal sources that do not require any processing. Pressing this button automatically mutes the 2-TR OUT/USB recording signal.
Press the USB/2TR TO PHONES/CTRL RM switch if you want to monitor the 2-Track and USB inputs via the CTRL ROOM and PHONES outputs. A typical studio application of this function is recording music into a digital audio workstation (DAW) with simultaneous reproduction.
If you want to monitor only the effects signal in your headphones or monitor speaker(s), press the FX TO CTRL RM switch. Now the signal of the effects processor can be monitored alone, and the main mix and/or 2-Track signal is no longer present on the phone and control room outputs.
Fig 2.5: USB connector
Connect your mixer to a computer using a standard USB cable. This enables a stereo signal to be sent to and from your mixer and computer. The signal sent from the mixer to the computer is the same as the main bus. The audio returning from the computer into the mixer appears directly in the main and/or control room bus (depending on USB/2TR to MAIN and PHONES/CTRL RM buttons).
Insert the USB type B plug into the USB jack on the mixer, and the other end into a free USB port on your computer. There are no required drivers, but we recommend that PC users install the ASIO driver which can be downloaded from behringer.com.
NOTE:
The mixer cannot be bus-powered via USB! Always use the included power adaptor to supply power to the mixer.
Fig. 2.6: Effects section
The XENYX QX1202USB/QX1002USB features a built-in digital stereo effects processor designed by KLARK TEKNIK. This effects processor offers a large number of standard effects such as Hall, Chorus, Flanger, Delay and various combination effects. Using the FX control, you can feed signals into the effects processor. The integrated effects module has the advantage of requiring no wiring. This way, the danger of creating ground loops or uneven signal levels is eliminated at the outset, completely simplifying the handling.
The SIGNAL LED on the effects module shows the presence of a signal whose level is high enough. This LED should always be on. However, make sure that the CLIP LED lights up only sporadically. If it is lit constantly, you are overdriving the effects processor, which leads to unpleasant distortion. If this occurs, turn the FX controls down somewhat.
The PROGRAM control has two functions: by turning the PROGRAM control, you dial the number of an effect. The number of the preset you just dialed up blinks in the display. To confirm your selection, press the PROGRAM control; the blinking stops.
The FX TO MAIN control feeds the effects signal into the main mix. If the control is turned all the way counterclockwise, no effects signal is present in the sum signal of the mixing console.
Reverb | |
00 | Small Chamber |
01 | Mid Chamber |
02 | Big Chamber |
03 | Theater |
04 | Small Room 1 |
05 | Small Room 2 |
06 | Mid Room 1 |
07 | Mid Room 2 |
08 | Large Room |
09 | Small Hall |
10 | Concert Hall |
11 | Mid Hall |
12 | Big Hall |
13 | Ambient Hall |
14 | Church |
15 | Short Plate |
16 | Mid Plate |
17 | Long Plate |
18 | Gold Plate |
19 | Vint250Verb 1 |
20 | Vint250Verb 2 |
21 | Mid Spring |
22 | Long Spring |
23 | Gated Reverb Short |
24 | Gated Reverb Mid |
25 | Gated Reverb Long |
26 | Gated Alive |
27 | Reverse Short |
28 | Reverse Mid |
29 | Reverse Long |
Early Reflections / Delay | |
30 | Short Ambience |
31 | Mid Ambience |
32 | Live Ambience |
33 | Big Ambience |
34 | Stadium |
35 | Early Reflections 1 |
36 | Early Reflections 2 |
37 | Early Reflections 3 |
38 | Early Reflections 4 |
39 | Slap Delay |
40 | Short Delay 1 |
41 | Short Delay 2 |
42 | Mid Delay 1 |
43 | Mid Delay 2 |
44 | Mid Delay 3 |
45 | Long Delay 1 |
46 | Long Delay 2 |
47 | Long Delay 3 |
48 | Stereo Delay |
49 | Ping-Pong Delay |
50 | Short Echo |
51 | Mid Echo 1 |
52 | Mid Echo 2 |
53 | Long Echo 1 |
54 | Long Echo 2 |
Modulation | |
55 | Soft Chorus |
56 | Warm Chorus |
57 | Phat Chorus |
58 | Classic Flanger |
59 | Warm Flanger |
60 | Stereo Flanger |
61 | Classic Phaser |
62 | Warm Phaser |
63 | Heavy Phaser |
64 | Stereo Phaser |
65 | Slow Tremolo |
66 | Fast Tremolo |
67 | Panner 1 |
68 | Panner 2 |
69 | Detune 1 |
70 | Detune 2 |
71 | Minor Third Up |
72 | Major Third Up |
73 | Fifth Up |
74 | Fourth Down |
75 | Octave Down |
76 | Minor Chord |
77 | Major Chord |
78 | Jazzy |
Multi | |
79 | Delay + Chorus 1 |
80 | Delay + Chorus 2 |
81 | Delay + Chorus 3 |
82 | Delay + Flanger 1 |
83 | Delay + Flanger 2 |
84 | Delay + Pitch 1 |
85 | Delay + Pitch 2 |
86 | Delay + Reverb 1 |
87 | Delay + Reverb 2 |
88 | Delay + Reverb 3 |
89 | Chorus + Reverb 1 |
90 | Chorus + Reverb 2 |
91 | Flanger + Reverb 1 |
92 | Flanger + Reverb 2 |
93 | Detune + Reverb |
Special FX | |
94 | LFO Filter 1 |
95 | LFO Filter 2 |
96 | Talkbox 1 |
97 | Talkbox 2 |
98 | Overdrive |
99 | Distortion |
Fig 3.1: The QX1002USB in a home studio
Even though most of the tasks in a studio can nowadays be accomplished using a computer, a mixing console remains an unavoidable piece of equipment that lets you effectively manage audio inputs and outputs: microphone signals need to be pre-amplified prior to being recorded, and the quality of microphone sound is often worked on; recording and playback signals must be routed to the appropriate connectors or integrated into the mix; the volume of headphones and studio monitors needs to be adjusted, and so on. The extensively equipped main section of the XENYX mixing consoles provides concrete benefits to you.
Connect your sound sources to the microphone/line inputs of the mixing console. Connect a pair of reference speakers (optional) to the main outputs, and connect a computer to the USB connector on the rear panel. Your monitor speakers are connected to the control room outputs; the headphones are connected to the headphone output.
Each connected sound source is pre-amplified, EQ'ed and then routed to the main bus. You may also add one of the onboard effects to any of the signals. Use the LEVEL controls to adjust the relative level of your sources. The main bus is sent to your computer via USB. The performance can be recorded in your Digital Audio Workstation (DAW) and further edited with the software. To monitor the recording signal and listen back to a recorded track, press the USB/2-TR TO CTRL RM button. This sends the signal returning from your computer to monitor speakers connected to the CONTROL ROOM OUT jacks.
Fig 3.2: Live performance with the QX1202USB
The above diagram shows some typical connections for a live performance using the QX1202USB. Mono sources such as microphones and line-outs from guitar preamps or DI boxes can be connected to channels 1-4 via XLR or ¼" cables. Stereo sources can be connected to channels 5/6 through 11/12 via ¼" cables.
If an external effects processor is to be used instead of the onboard processor, connect the FX SEND jack to the input of your processor. Turn the FX knob up on each channel that you want to add effects to. Connect the outputs (usually stereo) from the processor to one of the stereo channels as shown in the diagram. Make sure to leave the FX knob for this stereo channel fully counterclockwise (off) to avoid feedback loops. Turn the LEVEL knob up on the stereo channel receiving the processed signal to blend the effects into the mix.
Connect the MAIN OUTPUTS to active speakers or a power amplifier. You may also connect active floor monitors to the CONTROL ROOM OUTPUTS so the on-stage talent can hear the mix. The 2-Track inputs can be used to connect an MP3 player for music between sets, and the 2-Track outputs can be used to connect a digital recorder.
Connect the power supply to the 3-pin mains connector on the rear of the console. Use the AC adapter supplied to connect the console to the mains. The adapter complies with all applicable safety standards.
You will need a large number of cables for different applications. The illustrations below show how the connectors should be wired. Be sure to use only high-grade cables.
Please use commercial RCA cables to connect the 2-Track inputs and outputs.
You can, of course, also connect unbalanced equipment to the balanced inputs/ outputs. To do this, use either mono plugs or stereo plugs with the ring and sleeve bridged (pins 1 and 3 in the case of XLR connectors).
Never use unbalanced XLR connectors (PIN 1 and 3 connected) on the MIC input connectors when using the phantom power supply.
Balanced use with XLR connectors
Fig. 4.1: XLR connections
For unbalanced use, pin 1 and pin 3 have to be bridged
Unbalanced ¼" TS connector
Fig. 4.2: ¼" mono plug
Balanced ¼" TRS connector
Fig. 4.3: ¼" stereo plug
For connection of balanced and unbalanced plugs, ring and sleeve have to be bridged at the stereo plug.
¼" TRS headphones connector
Fig. 4.4: Stereo plug for headphones connection
QX1202USB | QX1002USB | |
Mono Inputs | ||
Microphone Inputs (XENYX Mic Preamp) | ||
Type | XLR connector, balanced, discrete input circuit | |
Mic E.I.N. (20 Hz - 20 kHz) | ||
@ 0 Ω source resistance | -133 dB / -137 dB A-weighted | |
@ 50 Ω source resistance | -130 dB / -134 dB A-weighted | |
@ 150 Ω source resistance | -127 dB / -131 dB A-weighted | |
Frequency response | <10 Hz - 150 kHz (-1 dB) <10 Hz - 200 kHz (-3 dB) | |
Gain range | +10 dB to +60 dB | |
Max. input level | +12 dBu @ +10 dB Gain | |
Impedance | 1.9 kΩ balanced | |
Signal-to-noise ratio | 107 dB / 110 dB A-weighted (0 dBu In @ +22 dB Gain) | |
Distortion (THD + N) | 0.006% / 0.005% A-weighted | |
Line Input | ||
Type | ¼" TRS connector, balanced | |
Impedance | 20 kΩ balanced, 10 kΩ unbalanced | |
Gain range | -10 dB to +40 dB | |
Max. input level | +21 dBu @ 0 dB Gain | |
Stereo Inputs | ||
Type | 2 x ¼" TRS connector, balanced | |
20 kΩ balanced, 10 kΩ unbalanced | ||
Impedance | (+4 dBu operating level) | |
20 kΩ balanced, 5 kΩ unbalanced (-10 dBV) | ||
Gain range | +4 dBu / -10 dBV | |
Max. input level | +22 dBu | |
2-Track In | ||
Type | RCA connector | |
Impedance | 19.5 | |
Max. input level | +21 dBu | |
Equalizer | ||
Low | 80 Hz / ±15 dB | |
Mid | 2.5 kHz / ±15 dB | |
High | 12 kHz / ±15 dB | |
Aux Sends | ||
Type | ¼" TRS connector, balanced | |
Impedance | 120 Ω | |
Max. output level | +21 dBu | |
Aux Returns | ||
Type | ¼" TRS connector, balanced | |
Impedance | 20 kΩ balanced, 10 kΩ unbalanced | |
Max. input level | +21 dBu | |
Main Outputs | ||
Type | ¼" TRS connector, balanced | |
Impedance | 120 Ω balanced | |
Max. output level | +21 dBu | |
Control Room Output | ||
Type | ¼" TRS connector, balanced | |
Impedance | 120 Ω | |
Max. output level | +21 dBu | |
Phones Output | ||
Type | ¼" TRS connector, unbalanced | |
Max. output level | +21 dBu / 22 Ω (+25 dBm) | |
2-Track Out | ||
Type | RCA connector, unbalanced | |
Impedance | 1 kΩ | |
Max. output level | +21 dBu | |
Main Mix System Data (Noise) | ||
Main mix @ -∞, channel fader @ -∞ | -105 dB / -108 dB A-weighted | |
Main mix @ 0 dB, channel fader @ -∞ | -93 dB / -96 dB A-weighted | |
Main mix @ 0 dB, channel fader @ 0 dB | -83 dB / -85 dB A-weighted | |
FX Section | ||
Type | KLARK TEKNIK | |
Converter | 24-bit Sigma Delta | |
Sample rate | 40 kHz | |
Power Supply | ||
Power consumption | 20 W | |
USA/Canada | 120 V~, 60 Hz | |
Adapter | MXUL6 | |
Australia | 230 - 240 V~, 50 Hz | |
Adapter | MXSAA6 | |
U.K./Europe | 230 V~, 50 Hz MXUK6 / MXEU6 | |
Adapter | MXUK6 / MXEU6 | |
China/Korea | 220 V~, 50 Hz / 220 V~, 60 Hz | |
Adapter | MXCCC6 / MXKR6 | |
Japan | 100 V~, 50/60 Hz | |
Adapter | MXJP6 | |
Output | 2 x 14.8 V~, 2 x 500 mA | |
USB | ||
Connecter | Type B | |
Sample rate | 48 kHz | |
Physical/Weight | ||
Dimensions (H x W x D) | 50 x 250 x 248 mm (2.0 x 9.8 x 9.8") | 50 x 195 x 248 mm (2.0 x 7.7 x 9.8") |
Weight | 1.5 kg (3.3 lbs) | 1.1 kg (2.4 lbs) |
ALL RIGHTS RESERVED.
© 2013 MUSIC Group IP Ltd.
Trident Chambers, Wickhams Cay, P.O. Box 146, Road Town, Tortola, British Virgin Islands
For the applicable warranty terms and conditions and additional information regarding MUSIC Group's Limited Warranty, please see complete details online at www.music-group.com/warranty.
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
Download Behringer XENYX QX1202USB/QX1002US - Premium 12/10-Input 2-Bus Mixer Manual
Advertisement
Thank you! Your question has been received!
Need Assistance?
Do you have a question about the XENYX QX1202USB that isn't answered in the manual? Leave your question here.
