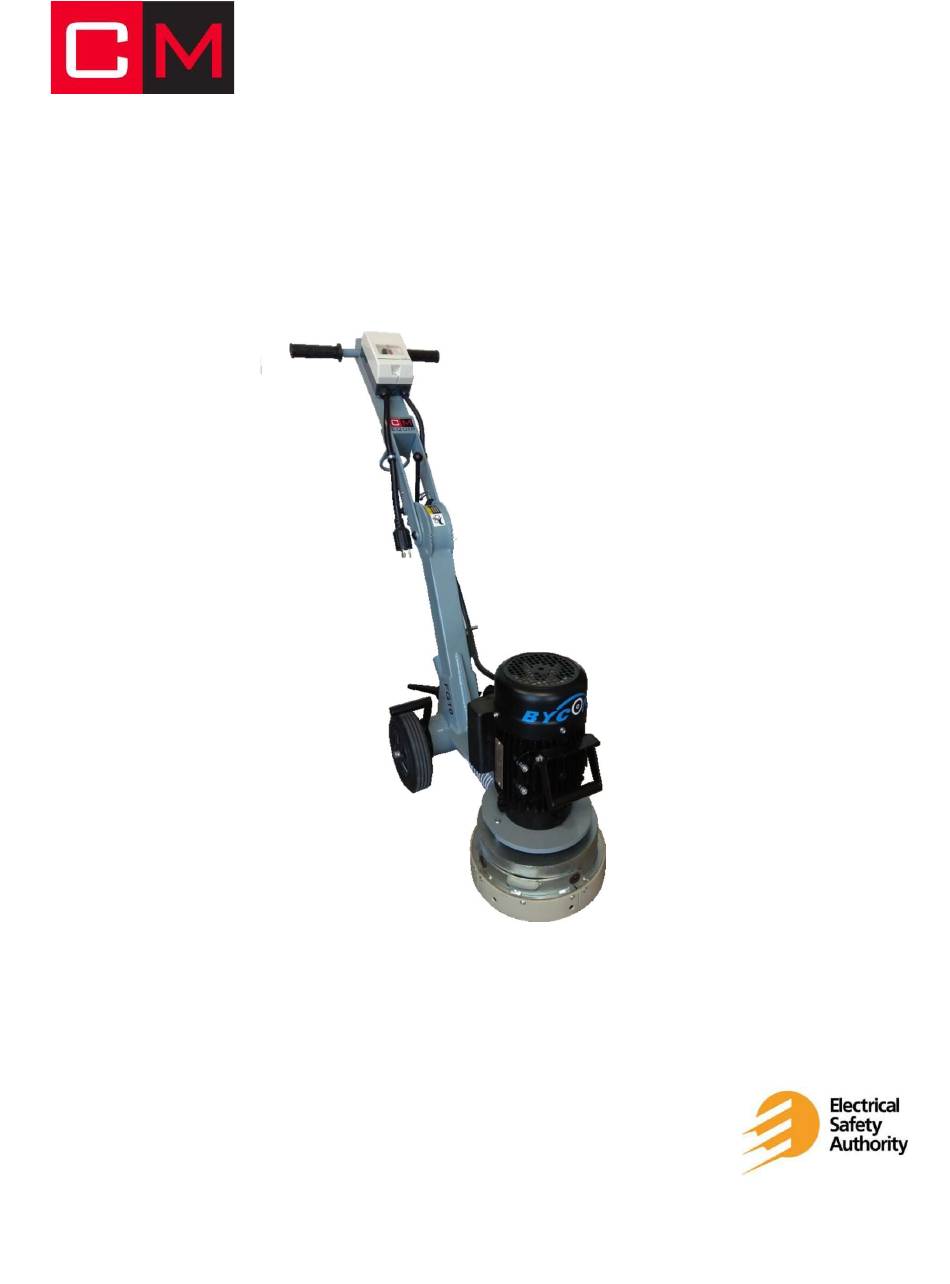

CM FG10Pro Operation Manual

Floor grinder

Advertisement

Quick Links

FLOOR GRINDER OPERATION
MANUAL
Model: FG10Pro
Please read these instructions carefully before using!
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FG10Pro and is the answer not in the manual?

Questions and answers

Summary of Contents for CM FG10Pro

  • Page 1 FLOOR GRINDER OPERATION MANUAL Model: FG10Pro Please read these instructions carefully before using!
  • Page 2: Table Of Contents

    Page Contents Introduction and Description Technical Data Operation Safety Precautions Troubleshooting Maintenance Parts Diagram Parts List 8-10...
  • Page 3: Introduction And Description

    Introduction and Description This manual is intended to provide operation and service information necessary for the safe and efficient use of the Virginia Abrasives Floor Grinder. Operating or servicing the unit other than in accordance with the instructions given may subject the machine to conditions beyond its capability.
  • Page 5 surface (use the bubble-level on the machine as a reference). Check that all nuts and bolts on the folding handle latch are tight and secure. 6. Raise the grinding plates from the floor. 7. Start the motor by pressing the black switch on the starter box. 8.
  • Page 6: Safety Precautions

    Safety Precautions The Bycon Floor Grinder has been designed to minimize noise, vibration levels and to provide maximum operator safety. However, incorrect use of the grinder may cause serious injury and therefore the following precautions must be taken: 1. Do not use the grinder for longer than prescribed in your local environmental working regulations, as the noise load from extensive daily use may result in hearing damage.
  • Page 7: Troubleshooting

    quartz, brick clay, granite and numerous other minerals and rocks. Repeated and/or substantial inhalation of airborne crystalline silica can cause serious or fatal respiratory diseases, including silicosis. The state of California and other authorities have listed respirable crystalline silica as a substance known to cause cancer. When grinding/cutting/drilling such materials, always follow the respiratory precautions mentioned above.
  • Page 8: Parts Diagram

    Parts Diagram Code Description Drawing No. .FG10-001 Handle .FG10-002 Upper arm SHMDJ71501 .FG10-003 Switch assembly .FG10-004 Plug wire .FG10-005 Power wire .FG10-006 Electric motor .FG10-007 Motor carry Handle SHMDJ71508 .FG10-008 M6X16 hexagon screws .FG10-009 Motor fixed mount SHMDJ71513 .FG10-010 Motor connection plate SHMDJ71510...
  • Page 9 .FG10-011 Ф10 Flat washers .FG10-012 M8X25 hex screw .FG10-013 Dust shroud SHMDJ71504 .FG10-014 M12X25 socket hexagon screw .FG10-015 Detachable shroud SHMDJ71505 .FG10-016 Shroud plastic wear strip set(long) .FG10-017 Shroud plastic wear strip set(short) .FG10-018 motor driving sleeve SHMDJ71503 .FG10-019 M10X30 hex screw .FG10-020 M10 nuts .FG10-021...
  • Page 10 .FG10-041 Connection sets SHMDJ71512 .FG10-042 M12X25 Round socket hexagon screw .FG10-043 adjust handle .FG10-044 M8X20 hexagon screws .FG10-045 Positioning clamping claw buckle SHMDJ71510 .FG10-046 Level bubble...
  • Page 11 FG10 Manuel d'instructions pour l'installa on une nouvel interrupteur Instructi on Manual : New Switch *Nouveau interrupteur assemblé comme original avec des modifications mineures* *New Switch assembled as original with minor changes* Étape 1 / Step 1 Le file d’extension isolé doit être dénudé, laissant 6 à 7 pouces au-dessus de la prise de courant (*voir l'image) Insulated power-in cord must be spliced, leaving 6"...
  • Page 12 Étape 3 / Step 3 Installez 4 vis avec la rondelle rectangulaire pour connecter le support de commutateur en place Install 4 screws with the rectangle washer to connect switch holder in place Étape 4 / Step 4 Connectez les fils correspondants au nouveau commutateur, comme l’ancien (*voir l'image) Connect corresponding wires to new switch, the same as the old switch (*see image)
  • Page 13 Étape 5 / Step 5 Installer l'interrupteur en poussant vers le haut, puis vers le bas pour verrouiller (*voir l'image) Install switch by pushing in and up, then down to lock in (*see image)
  • Page 14 Étape 6 / Step 6 Bande élasque à placer à l'extérieur du porte-interrupteur. Agi comme an -vibraon Elasc band to be placed on the ouside of the switch holder. To act as an -vibraon Étape 7 / Step 7 Installer le couvercle Install cover...
