- Page 1 18” Stainless Steel Dishwasher User Manual Read and save these instructions before use HDS18SS...
-
Page 2: Table Of Contents
CONTENTS 1 Important Safety Instructions 1.1 Proper installation ............. . 1 1.2 Basic precautions before use . -
Page 3: Important Safety Instructions
1 IMPORTANT SAFETY INSTRUCTION WARNING: For your safety, please follow the information in this manual to minimize the risk of fire, explosion, electric shock and to help prevent property damage or personal injury. 1.1 Proper Installation Please install your dishwasher properly by following the installation guide. •... -
Page 4: Basic Precautions Before Use
• Do not let children hit, sit or stand on door or racks of the dishwasher. • Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period, before using the dishwasher, turn on all hot water faucets and let water flow for several minutes. -
Page 5: Installation Introduction
2 INSTALLATION INTRODUCTION BEFORE YOU BEGIN Read these instructions completely and carefully. IMPORTANT Observe all governing codes and ordinances. NOTE TO INSTALLER Be sure to leave these instructions for the consumer’s and local inspector’s use. NOTE TO CONSUMER Keep these instructions with your Owner’s Manual for future reference. -
Page 6: Features Of Your New Dishwasher
3 FEATURES OF YOUR NEW DISHWASHER 3.1 Components Lock Cup Shelf Upper Basket Upper Spry Arm Cutlery Basket Lower Basket Heating Element Rinse Aid Dispenser... -
Page 7: Filter System
3.2 Filter System Your dishwasher has a multiple Filter System. In the System there are three mesh filters. It can separate soiled water and clean water in different chambers. The multiple filter system helps your dishwasher to get better performance with less water and less energy. - Page 8 Getting Started 01 Load the dishwasher. (See Dish Preparation and Loading sections) 02 Add detergent. (See Filling the Detergent Dispenser) 03 Add rinse aid. (See Filling the Rinse Aid Dispenser) 04 Select desired CYCLE. (See Cycle Chart) 05 Select desired OPTIONS (See Control Panel). The indicator light above the pad will glow when selected.
-
Page 9: Start/Cancel
4 OPERATING INSTRUCTIONS Control Panel Wash Cycle Selections Status Indicators Start/Cancel Delay Display Window Options 4.1 Start/Cancel Open the door to select the desired cycle and options, touch the Start/Cancel button and close the door within 4 seconds to start the cycle or begin the delay countdown. To cancel and reset the program during the cycle, open the door, and touch Start/ Cancel for 3 seconds. -
Page 10: Status Indicators
4.5 Status Indicators • Rinse Deterfent needs to be refilled. • Program end. • Water failure, faucet is not open. 4.6 Options HEATING DRY When the “Heating Dry” function is selected, the heater will work during the drying processs. The Heating Dry option is not available with “Rinse” cycles. SANITIZE When the”Sanitize”function is selected, the temperature of water will be maintained at 69°C(156.2°F) max. -
Page 11: Cycle Chart
4.9 Cycle Chart Program Cycle Description Water (L) Cycle Time (min) Pre Wash ° Main Wash (60 ° Heavy Wash 19.7 Rinse(65 Rinse (with Sani 69°C) Drying Pre Wash ° Main Wash (50-55 ° Normal Wash Rinse(58-60 9.5~18.5 105~135 Rinse (with Sani 69°C) Drying Pre Wash °... -
Page 12: User Maintenance
5 USER MAINTENANCE Keeping your dishwasher clean improves its performance, reduces unnecessary repairs, and lengthens its life. 5.1 Cleaning the Exterior It’s best to clean spills on the outside of your dishwasher as they occur. Use a soft, damp cloth on the control panel to gently wipe away spills and dust. Do not use benzene, wax, thinner, chlorine bleach, or alcohol. - Page 13 02 Rotate the filter insert counterclockwise to unfasten and detach the filter insert. 03 Remove the fine filter. (flat rectangle) 04 Remove any dirt or other remains from the filters, and then rinse them under running water. 05 Reassemble the filters in the reverse order of the dissasembly, replace the filter insert, and rotate clockwise to the close arrow.
- Page 14 Cleaning the Nozzles If your dishwasher does not seem to be cleaning adequately or the nozzles seem clogged, you can clean each of the nozzles. When removing the nozzles, take care as they may break. Lower Nozzle 01 Check whether the nozzle holes are clogged by food particles. 02 If cleaning is needed, remove the nozzle by pulling it upwads.
-
Page 15: Troubleshooting
6 TROUBLESHOOTING Before Calling for Service Problem Possible Cause Solution Door may not be closed properly Shut the door completely, make sure it is latched Power supply or power line is not connected Check and connect the power Dishwasher won’t start supply, refer to this manual to reset Delay Start option has been selected... - Page 16 Problem Possible Cause Solution Water hardness is too high For extremely hard water, install a water softener Improper loading of dishes Spots and filming Load the dishes again as indicated Old or damp powder Rinse Aid on dishes is used Use fresh Rinse Aid Add Rinse Aid to the Dispenser Rinse Dispenser empty...
-
Page 17: Error Codes
Problem Possible Cause Solution Detergent cup opening/Drain pump sound This is normal Noises A hard object has entered the wash If the noise persists after a module. When the object is ground complete cycle, call for service up, the sound should stop Water valve is turned off Check if the water valve is turned on... -
Page 18: Technical Information
7 TECHNICAL INFORMATION Capacity 8 place settings Dimension 17.6” x 21.7” x 32.4” (W x D x H) Power Supply 120 volts, 60Hz Rated Power Usage Wash Motor 100W, Heater 700W Water Feed Pressure 5.8 ~ 145 psi (0.04 ~ 1MPa) - Page 19 If your product needs repair, please contact us via email or phone. ©2022 BHRS Group, LLC. All Rights Reserved. BHRS Group, LLC The Honeywell Trademark is used under license from 585 Prospect St. Honeywell International Inc. Honeywell International Lakewood, NJ 08701 Inc.
Need help?
Do you have a question about the HDS18SS and is the answer not in the manual?
Questions and answers
where to find: see Filling the the Detergent Dispenser
The instructions for filling the detergent dispenser for the Honeywell HDS18SS dishwasher should be found in the user manual. The manual includes guidance on adding detergent and rinse aid, ensuring proper orientation of the detergent cover, and preventing issues like detergent being left in the dispenser. Refer to the manual for detailed steps.
This answer is automatically generated
@Mr. Anderson ummmm no it does not
on page 26 of the manual in the getting started list 02 says (See Filling the Detergent Dispenser) Where is this section in the manual ? I can not find it anywhere !
The section on filling the detergent dispenser in the Honeywell HDS18SS manual is labeled as "Filling the Detergent Dispenser." It is referenced in step 02 of the operating instructions.
This answer is automatically generated
E4 code how do I make it go away
The E4 error code on the Honeywell HDS18SS indicates an overflow caused by a leak in the dishwasher. To resolve this issue, turn off the main water supply and call for service. If there is water in the base pan, this should also be addressed.
This answer is automatically generated
How do I reset my dishwasher from E4?
To reset the Honeywell HDS18SS dishwasher from an E4 error, open the door, then press and hold the Start/Cancel button for 3 seconds. Close the door, and the dishwasher will initiate a 60-second drain to reset.
This answer is automatically generated
Buttons will not work after fixing E4 code
The buttons may not be working because of water or something on the button for more than 30 seconds, which triggers the E9 error. After fixing the E4 code (overflow), there may still be water in the base pan. Ensure the water is completely removed before restarting the dishwasher.
This answer is automatically generated
Where do I place the detergent pod
The detergent pod should be placed in the detergent dispenser cup of the Honeywell HDS18SS dishwasher. Ensure the spray arms are not blocked when loading the dishes.
This answer is automatically generated

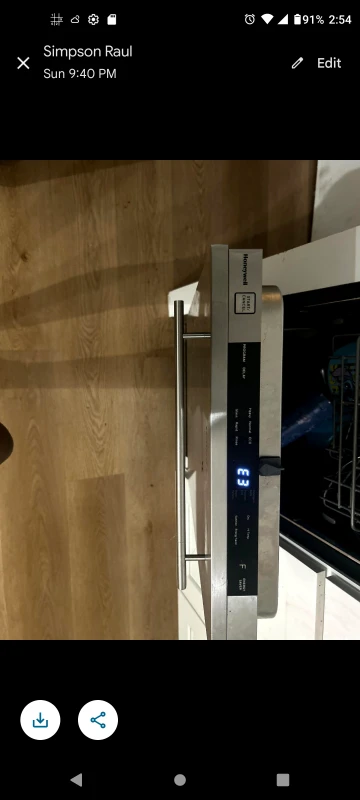

Can you assist with this problem? Dishwasher HDS18SS just started displaying E3 code. How to fix?
To fix the E3 error code on the Honeywell HDS18SS dishwasher:
1. Check the filter for blockages — clean it if needed.
2. Perform a hard reset by flipping the circuit breaker off and then back on.
If the error clears but the dishwasher still doesn't wash (fills with water but does not spray), further troubleshooting may be needed, such as checking the circulation pump.
This answer is automatically generated
I just bought the Honeywell stainless steel 18-in dishwasher HDs18ss. Inadvertently the mounting clips were thrown away. Is there any way I can get replacement mounting clips? I've tried everywhere.
Why does my display say H:01 ? There is nothing in the manual about this. And the dishwasher will not start.
Where is the section on filling the detergent dispenser ?
