Quick Setup Guide
Model 5144G
PRIOR TO INSTALLATION
Fully Charge the System Controller and Batteries for 3 hours.
AVERAGE SYSTEM SETUP TIME IS 2 HOURS.
F
F
K

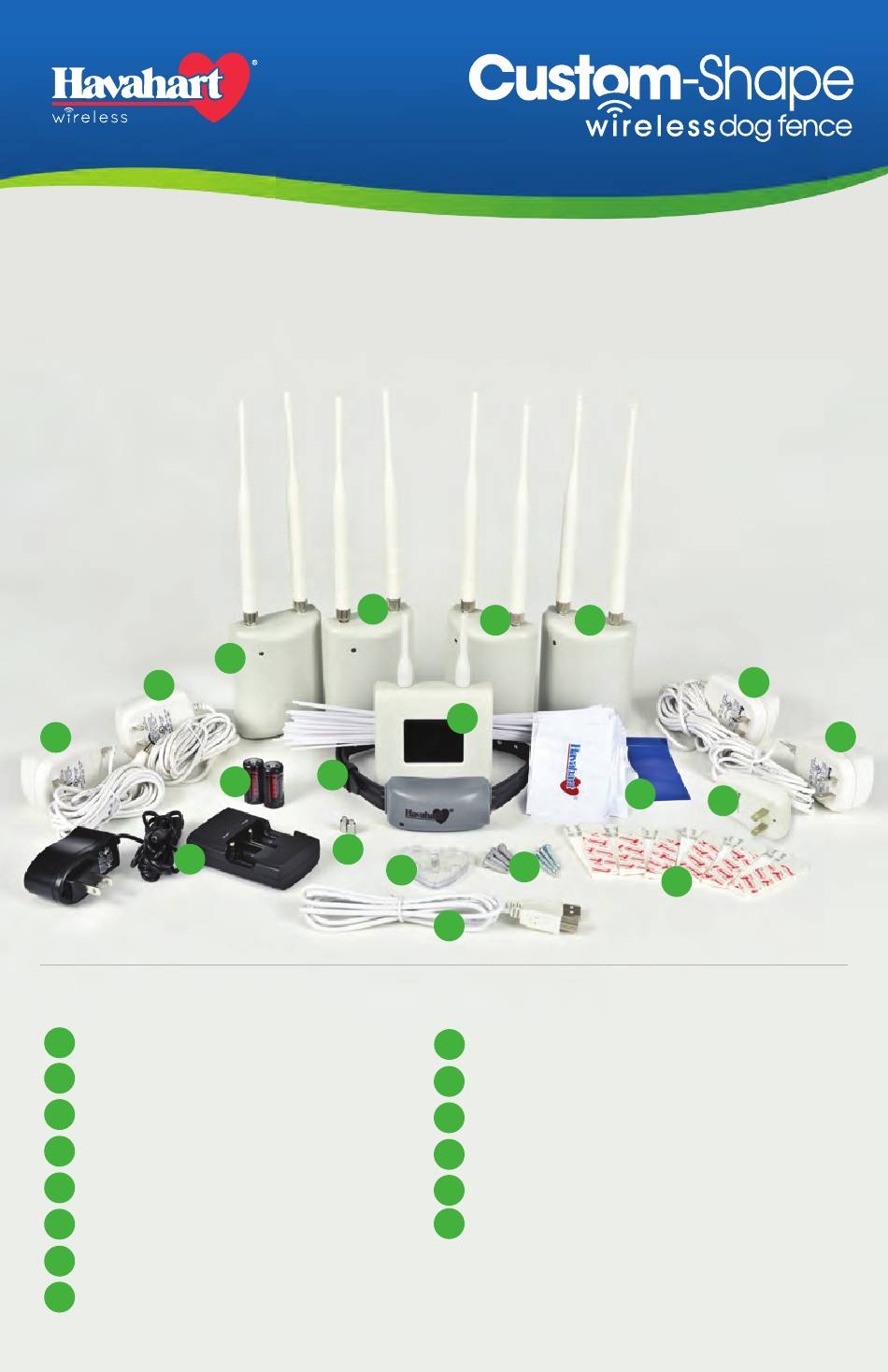

Ensure that the following components are included with your system. If a component
is missing, please call 1-800-800-1819, Option 1.
A
Controller
B
USB Cable
C
USB AC Adapter
D
Master Base
E
3 Bases
F
4 AC Adapter Power Cords For Bases
Removable Wall-Mount Adhesive Strips
G
4 Screws and 4 Wall Anchors
H
E
D
I
J
L
E
A
H
M
B
I
Collar
2 RCR123 Batteries For Collar
J
Battery Charger
K
Extra Set Of Collar Probes For Short-Haired Dogs
L
Heart-Shaped Collar Tester
M
N
74 White Training Flags, 1 Blue Training Flag
Instructional DVD
Instruction Manual
Troubleshooting Guide
E
F
N
C
G
F
Advertisement
Related Manuals for Havahart Custom-Shape 5144G
Summary of Contents for Havahart Custom-Shape 5144G
- Page 1 Quick Setup Guide Model 5144G PRIOR TO INSTALLATION Fully Charge the System Controller and Batteries for 3 hours. AVERAGE SYSTEM SETUP TIME IS 2 HOURS. Ensure that the following components are included with your system. If a component is missing, please call 1-800-800-1819, Option 1. Controller Collar USB Cable...
-
Page 2: Important Message
Congratulations and thank you for choosing the Custom-Shape Wireless Dog ® Fence from Havahart Wireless the leading innovator of digital wireless fence solutions. The Quick Setup Guide can help you get your wireless fence up and running quickly and efficiently. It is not a replacement for the instruction manual. IT IS IMPORTANT that you read and follow all safety guidelines and directions detailed in the Instruction Manual to ensure the safe and effective operation of your system. - Page 3 • Attach the other 3 Bases to walls in the remaining 3 corners of your home. Do NOT plug them in at this time. Figure 1.1a Figure 1.1b Figure 1.2 ® Havahart Custom-Shape Wireless Dog Fence 1-800-800-1819, Option 1...
- Page 4 Base is powered on. Do not plug in the other Bases yet. • On the Wireless Fence Tracker, select “Start” to begin recording. As you activate your Bases, they will move to their actual locations on the screen. ® Havahart Custom-Shape Wireless Dog Fence www.HavahartWireless.com...
- Page 5 (see Figure 2.3a). Screen 1.2 • Press “Yes” to setup your Fence Boundary/ Trigger Zone. Activate the Bases in a clockwise fashion. Figure 2.3a Illustration C ® Havahart Custom-Shape Wireless Dog Fence 1-800-800-1819, Option 1...
- Page 6 After you walk around the object, wait 5 seconds and then press “Continue” to continue recording your Fence (see Screen 3.8). Illustration C Wait 5 seconds, then Continue Screen 3.8 SHED Pause Illustration D ® Havahart Custom-Shape Wireless Dog Fence www.HavahartWireless.com...
- Page 7 The Wireless Fence Tracker will show the Fence Boundary in green. The blue circles track the Controller and should closely, but not perfectly overlay the green line (see Figure 3.0). Screen 3.8 Illustration E Figure 3.0 START ® Havahart Custom-Shape Wireless Dog Fence 1-800-800-1819, Option 1...
- Page 8 The Wireless Fence Tracker will show the Exclusion Zone also in green. The blue circles track your Controller and should closely, but not perfectly overlay the green line (see Figure 4.0 Figure 4.0). ® Havahart Custom-Shape Wireless Dog Fence www.HavahartWireless.com...
- Page 9 Replace the Battery Cap and turn it 1/4 turn clockwise to lock it in place. The Collar Light will flash green. If it does not, shake the ® Collar gently as the Collar is in sleep mode (see the Havahart Wireless Collar Light Chart). ®...
- Page 10 Screen 6.7 highest correction level and 1 being the lowest correction level (see Screen 7.9). • Press “APPLY” and a confirmation screen will display briefly. Screen 7.5 Screen 7.9 Screen 7.3 Screen 7.4 ® Havahart Custom-Shape Wireless Dog Fence www.HavahartWireless.com...
- Page 11 Bases so that there are less signal limiting obstructions (see Page 8 in the Instruction Manual) between the Fence Boundary and your Bases (see Factors Affecting Signal Strength in the Instruction Manual). ® Havahart Custom-Shape Wireless Dog Fence 1-800-800-1819, Option 1...
- Page 12 If necessary, move the flags to the correct location. If not satisfied with the location, you may need to Remove your Fence and re-record. NOTE: If you have any Exclusion Zones, perform similar Trigger Zone testing. Illustration E-2 Illustration H ® Havahart Custom-Shape Wireless Dog Fence www.HavahartWireless.com...
- Page 13 With your dog standing comfortably, position the Collar high on your dog’s neck, underneath the chin with the Probes facing upward and centered on your dog’s neck. ® The Havahart logo should be right side up when you look at your dog. •...
-
Page 14: Planning Guide
Planning Guide ® Havahart Custom-Shape Wireless Dog Fence www.HavahartWireless.com... - Page 15 ® Havahart Custom-Shape Wireless Dog Fence 1-800-800-1819, Option 1...
- Page 16 ® Congratulations for completing the setup of your Havahart Wireless Custom-Shape Wireless Dog Fence. You are now ready to start training and enjoying your fence. IMPORTANT MESSAGE Proper training of your dog is the most critical element to ensure the successful operation of your wireless dog fence.
