Summary of Contents for Benchmark 1277-028

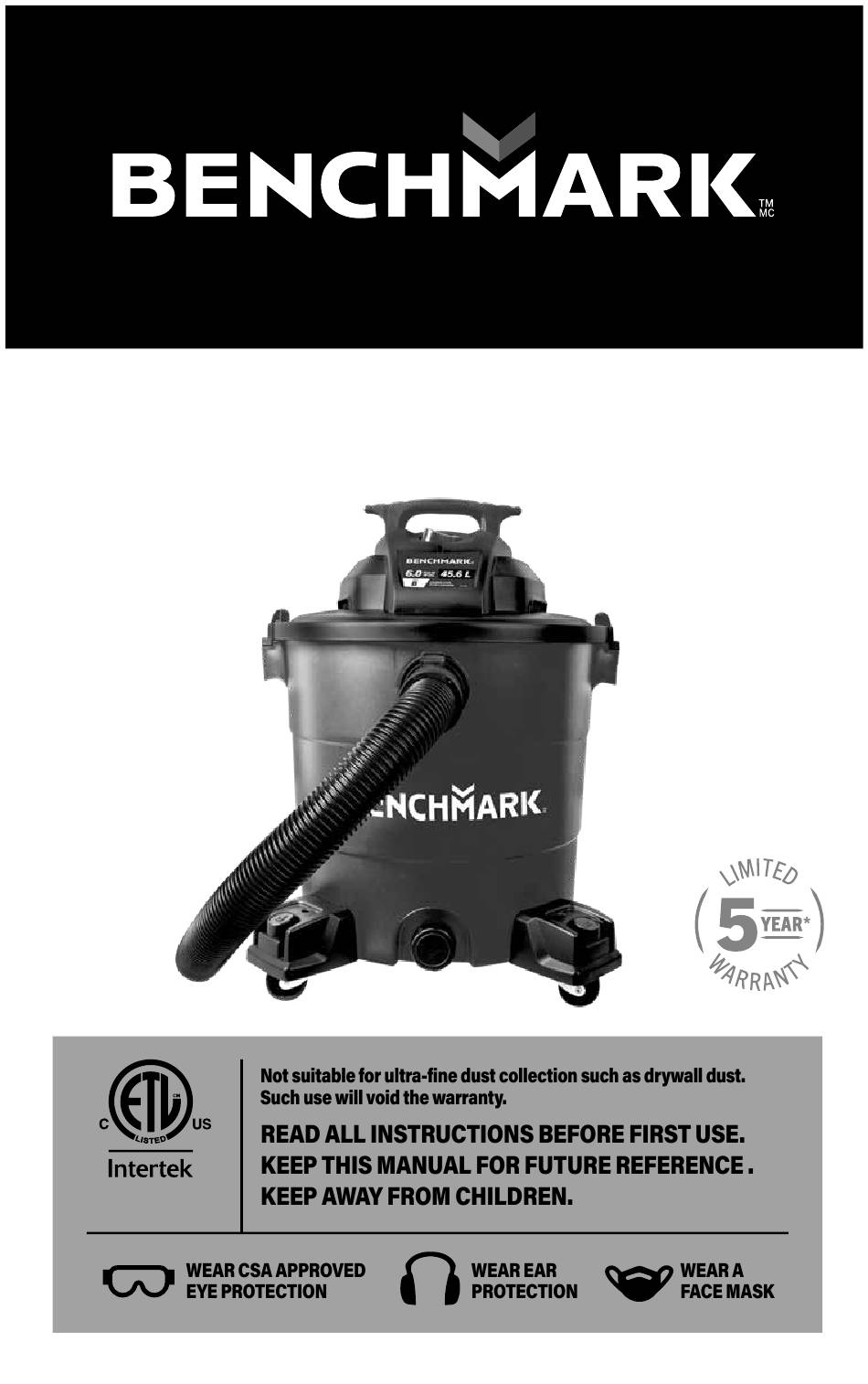

- Page 1 45.6L WET/DRY VACUUM 5 year limited warranty on tool 3181069 SL18199P...
- Page 2 PRODUCT SPECIFICATIONS 45.6L WET/DRY VACUUM Voltage 120V~ 60Hz Rated Power 10A 6Peak HP Tank Capacity 12Gal (45.6L) Flexi Hose 6 ft x 1-7/8 in (1.8 m x 48mm) Flow rate 100CFM Power cord 16 ft. (4.9 m) Replacement cartridge filter 1277-036 Replacement collection bag 1277-034...
-
Page 3: Table Of Contents
1277-028 45.6L WET DRY VACUUM TABLE OF CONTENTS Product Specifications .................. 1 Table of Contents ................... 2 General Safety Warnings ................3 Safety Symbol ....................4 Servicing of a Double-Insulated Wet/Dry Vacuum ........... 5 Specific Safety Instructions ................ 5-6 Know Your Wet/dry Vacuum ................ 6-7 Operation ...................... -
Page 4: General Safety Warnings
GENERAL SAFETY WARNINGS IMPORTANT SAFETY INSTRUCTIONS Read and understand all safety and operational instructions . Failure to follow the safety rules listed below and other basic safety precautions may result in serious personal injury. Keep this manual, sales receipts, and applicable warranty forms for future reference. - Page 5 1277-028 45.6L WET DRY VACUUM When using this Wet/Dry Vacuum, follow basic safety precautions including the following: To reduce the risk of fire, electric shock or injury: • Do not run the Wet/Dry Vacuum unattended. • Do not vacuum, or use this Wet/Dry Vacuum near liquids, gases, or explosive vapours like gasoline or similar fuels, lighter fluid, cleaners, oil based paints, natural gas or hydrogen.
-
Page 6: Servicing Of A Double-Insulated Wet/Dry Vacuum
Wet/Dry Vacuum is double-insulated, eliminating the need for a separate grounding system. Use only identical replacements parts. Read the servicing instructions before servicing the Wet/Dry Vacuum. Use this Wet/Dry Vacuum only as described in this manual. Observe the following warnings that appear on the motor housing of this Wet/Dry Vacuum. WARNING SERVICING OF A DOUBLE-INSULATED WET/DRY VACUUM In a double-insulated Wet/Dry Vacuum, two systems of insulation are provided... - Page 7 1277-028 45.6L WET DRY VACUUM Servicing of a Double-Insulated Wet/Dry Vacuum – Cont’d WARNING For your own safety, read and understand this instruction manual. Do not operate unattended. Do not use this Wet/Dry Vacuum to pick up hot ashes, coals, toxic, flammable or other hazard materials.
-
Page 8: Know Your Wet/Dry Vacuum
KNOW YOUR WET/DRY VACUUM WARNING Before starting please read, understand, and apply the safety instructions. Reminder: DO NOT vacuum hazardous substances. FUNCTIONS 1. Handle 2. Power switch 3. Lid latches 4. Vacuum port 5. Dust tank 6. Drain cover 7. Casters 8. - Page 9 1277-028 45.6L WET DRY VACUUM Operation – Cont’d 2. Attach casters following the instructions as below: a. Invert dust tank and align casters as shown in diagram to the right, then secure casters with provided screws. b. Return dust tank to an upright position.
- Page 10 DRY PICK-UP 1. The filter must always be in correct position to reduce the risk of leaks and possible damage to the vacuum. Make sure that the filter is completely covering the filter cage. Make sure there are no gaps between the filter and the lid.
- Page 11 1277-028 45.6L WET DRY VACUUM INSTALLING DISPOSABLE FILTER BAG 1. Slide the cardboard collar opening firmly onto the vacuum port deflector until it stops against the deflector wall. 2. Position the bag so that it is distributed around the inside of the tank.
- Page 12 EMPTYING THE TANK WARNING To reduce the risk of injury from accidental starting, unplug power cord before emptying the dust tank. 1. Remove the power head assembly of the wet/dry vacuum by pulling outward on the lid clips located on each side of the vacuum. Lift off the power head assembly.
-
Page 13: Maintenance
1277-028 45.6L WET DRY VACUUM MAINTENANCE WARNING To reduce the risk of injury from accidental starting, unplug power cord before changing or cleaning filter. The filter should be cleaned often to maintain peak Vacuum performance. Do not remove filter cage and float. The float prevents water from entering the impeller and damaging the motor. - Page 14 TROUBLESHOOTING WARNING Minor problems often can be fixed without calling customer service. PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Vacuum will not run No electricity Make sure electrical outlet has voltage (A qualified electrician may need to be contacted) Loss of suction, 1.
-
Page 15: Exploded View
1277-028 45.6L WET DRY VACUUM EXPLODED VIEW... -
Page 16: Parts List
(Monday through Friday 9am – 5pm Eastern Standard Time) • Technical questions • Replacement parts • Parts missing from package PARTS LIST KEY # PART # PART NAME QUANTITY 1277-028-001 Handle 1277-028-002 Top cover 1277-028-003 Power switch 1277-028-004 Thermal baffle 1277-028-005... - Page 17 WARRANTY 45.6L WET/DRY VACUUM If this Benchmark tool fails due to a defect in material or workmanship within five years from the date of purchase, return it to any Home Hardware store with theoriginal bill of sale for exchange. 3-year warranty for the battery and charger.
- Page 18 45.6L WET/DRY VACUUM 1277-028 BENCHMARK TOOLS CANADA Made in China ST. JACOBS, ONTARIO N0B 2N0 © 2021 Home Hardware Stores Limited CUSTOMER SERVICE/TECH SUPPORT 1-866-349-8665 * This Benchmark product carries a five (5) year LIMITED warranty against defects in workmanship and materials. See Owner’s Manual for full details.
