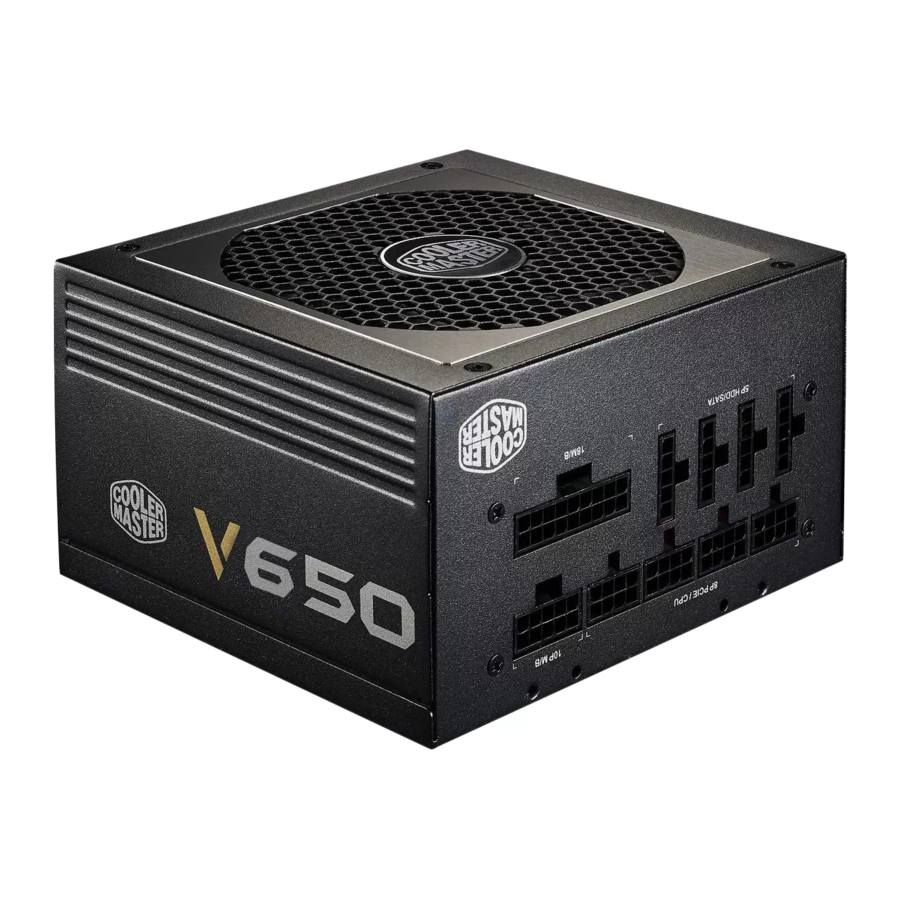

Cooler Master RS-550-AFBA-G1, RS-650-AFBA-G1, RS-750-AFBA-G1 Manual

Model Descriptions

RS-550-AFBA-G1: 550W Active PFC Power Supply
RS-650-AFBA-G1: 650W Active PFC Power Supply
RS-750-AFBA-G1: 750W Active PFC Power Supply

Specifications

• Type: Intel ATX 12V V2.31
• Input Voltage: 100~240Vac
• Input Frequency: 47Hz ~ 63Hz
• Fan: 120mm Cooler Master Silencio FP FAN
• Power Good Signal: 100 ~ 500ms
• Hold Up Time: > 16ms
• Efficiency: 90% Typically
• MTBF: >100,000Hours
• Protection: OCP / OPP / OVP / OTP / SCP / UVP
• Dimension: 150 × 140 × 86mm (5.9 × 5.5 × 3.4 in)
• Operation Temperature: 0~40℃(Nominal Input Voltage)
• Regulatory: CE / TUV / FCC / UL / EAC / CCC / BSMI / RCM / KC

RS-550-AFBA-G1

RS-650-AFBA-G1

RS-750-AFBA-G1

Installation

Connector Descriptions

Motherboard 24 Pin Connector(P1)

CPU 4+4Pin

PCI-e 6+2Pin Connector

S-ATA Connector

Peripheral 4-Pin Connector

Floppy Connector

Troubleshooting

If your system does not turn on after installing the power supply, follow the troubleshooting guide as listed below:

1. Please make sure the main power is connected on correctly.
2. Please make sure the P1 and P2 connectors are connected correctly to the motherboard.
3. If the power supply does not work properly, please contact our service center immediately.
