Summary of Contents for Starke PA4000 DSP

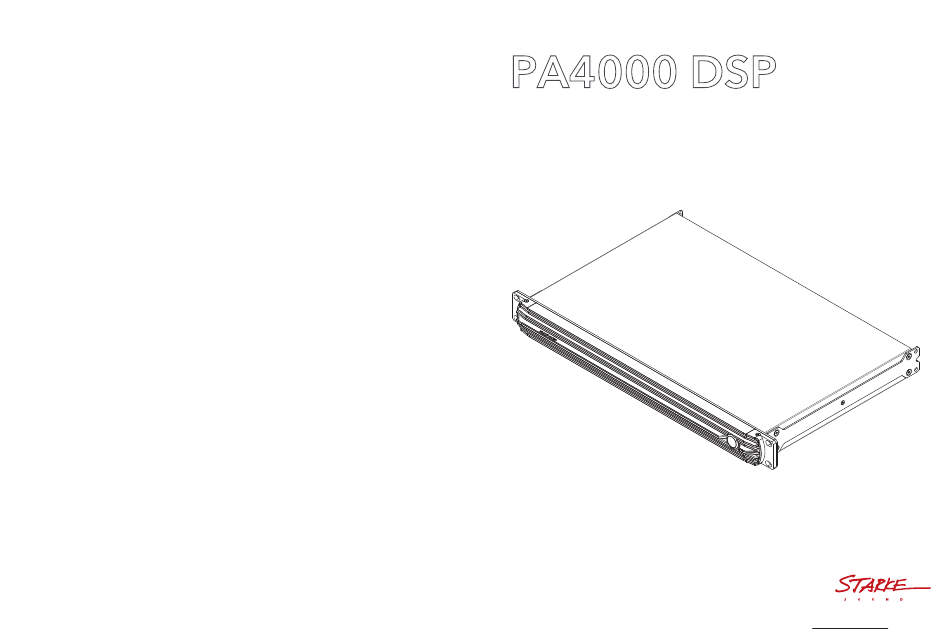

- Page 1 User Guide PA4000 DSP Starke Sound Inc. 17810 S.Main St., Suite B, Gardena, CA 90248 ▪ starkesound.com...
- Page 2 Safety instructions 1) Read, follow and keep these instructions 2) Do not remove the cover as repairs require qualified technicians 3) Do not use the product near water 4) Do not install near any heat sources such as radiators, heaters, stoves or amplifiers 5) Clean the product only with a damp cloth 6) Use care when lifting or moving this heavy product 7) Protect the power cord from being walked on or pinched...
- Page 3 Set-up instructions Connect your 4 input channels using balanced (XLR) cables. Channels are labeled CH1, CH2, CH3 and CH4. Connect your speakON terminals on 1+1- contacts. Connect your four speakers to the output speakON terminals: CH1, CH2, CH3 and CH4. Speaker wires can be terminated with S-link terminals, speakON terminals, or “banana plugs”...
-
Page 4: Operation
Connect your inputs and outputs to CH1 and CH3, then connect your 4 speakON terminals on 1+1- contacts from the CH1, CH2, CH3 and CH4 outputs. CH1 and CH2 outputs will receive the same signal from the CH1 input; also CH3 and CH4 will receive the same signal from the CH3 input. -
Page 5: Technical Specifications
Technical specifications Output Power 1000W x 4 at 8Ω 1500W x 4 at 4Ω 2500W x 2 at 8Ω (Bridge mode) *All data base on EIAJ test standard. 24bit@96kHz sampling rate Flexible 4x4 matrix routing Presets: up to 42 sets built in preset parameters Crossover: linear phase (FIR), Butterworth, Linkwitz-Riley, Bessel: 6 dB/oct to 48 dB/oct (IIR) Equalizer:...
