Log Placement Instructions
Models: Charisma - CR18-H, CR24-H, CR30-H
Moxie - MX18-H, MX24-H, MX30-H
Dynamo - DY16-H, DY18-H, DY24-H, DY30-H,
The positioning of the logs is critical to the safe, clean operation of this gas log set. Sooting and other problems may
result if the logs are not properly positioned per these instructions. Failure to position in accordance with the diagrams
below or failure to use only parts specifically approved for this log set may result in property damage or personal injury.
WARNING
•
Gloves are recommended when handling logs to
prevent skin irritation from loose fibers. Logs
are fragile - handle with care.
•
Use only rock wool provided with log set.
•
DO NOT ADD ADDITIONAL ROCK WOOL.
Wash hands after placing rock wool. Itching may occur.
NOTE: Installation instructions are the same for 18",
24" and 30" log sets. Pictures used in this instruction
illustrate the 24" set. Some variation may exist between
the images and the set included with the instructions.
A. Log Placement (Charisma - CR18-H,
CR24-H, CR30-H)
1. Before installing logs, place rock wool in front of the
grate. Loosely apply nickel size pieces to allow the
gas to flow through for proper burn and not to be
obstructed. Failure to do so would cause a higher
level of CARBON MONOXIDE. See Figure 1.
Rock Wool

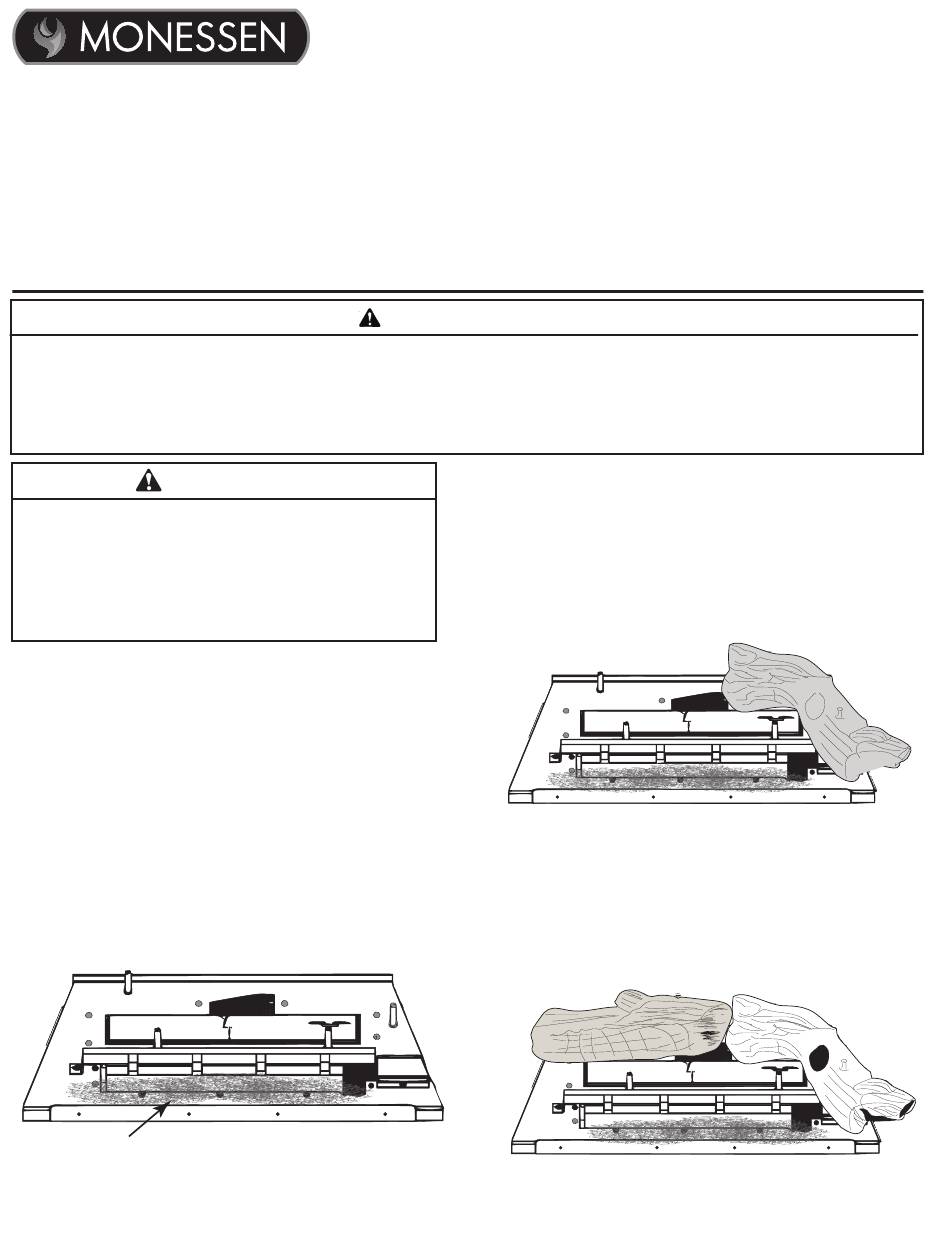

Figure 1 - Installing Rock Wool
Monessen • CR/MX/DY18,24,30-H Log Placement Instruction Manual • 4606-902 Rev. D • 02/21
WARNING
2. Place log #1 on the right-hand side of the burner
assembly by positioning the pin locator hole on the
bottom of the log over the pin on the right-hand side
of the burner and by rotating the log clockwise toward
the back to contact the rear bend on the sheet metal
of the burner assembly. With the log in place, make
sure that the notch on the bottom of the log match up
with the bracket on the grate. See Figure 2.
Figure 2 - Log #1 Placement
3. Hold log #2 with the flat surface away from you.
Place log #2 toward the back to the left by positioning
the pin locator hole on the bottom of the log over the
pin on the left-hand side and push back against the
rear bend on the sheet metal of the burner assembly.
See Figure 3.
Figure 3 - Log #2 Placement
2
1
1
