Zyno Medical Nimbus II PainPRO Quick Reference Manual

Alert Indications
Cassette Loading The cassette may not be properly loaded or
Error has become dislodged.
System Error The pumping mechanism may not work
properly.
The system fails to operate in a controlled
Firmware Error
fashion.
A decrease in pressure is sensed in the supply
Upstream
line between the pump and IV bag.
Occlusion
Downstream An increase in pressure is sensed in the line
Occlusion between the pump and the patient
Pump The pump is powered on but not infusing. It is
Unattended standing by
Infusion
The infusion is completed.
Complete
An infusion parameter has been entered that
Invalid Infusion
Parameter exceeds the remaining pump life.
Battery The infusion will continue for 30 minutes
Depleted prior to shut-down.
Max Vol Reached The pump has reached a maximum volume
Pump Standby per hour or volume per interval limit.
520-QR-IT1051, Rev. A
Responses
Press the RUN/STOP key to acknowledge the condition and silence the
audio alert.
Clamp the tubing. Unload and reload the cassette. Open the slide clamp.
Press the RUN/STOP key to return to the programming screen.
Press the RUN/STOP key to resume.
Press the RUN/STOP key to acknowledge the condition and silence the
alert. Power off the pump.
Take the pump out of service. Use a replacement pump if needed.
Press any key to acknowledge the alert. The pump will power off with any
key press.
Take the pump out of service. Use a replacement pump if needed.
Press the RUN/STOP key to acknowledge the condition and silence the
audio alert (if present).
Resolve the cause of the occlusion.
When the occlusion is resolved the infusion will automatically resume.
Press the RUN/STOP key to acknowledge the condition and silence the
audio alert (if present).
Resolve the cause of the occlusion such as a closed slide clamp, kinked
tubing, or tape covering the air-eliminating filter vent.
When the occlusion is resolved the infusion will automatically resume.
Press the RUN/STOP key to acknowledge the condition and silence the
audio alert.
To resume the infusion highlight Current Rx then press ENTER. Press
ENTER to Resume Infusion. Press the RUN/STOP key to review and
press ENTER to confirm the RX restarting the infusion.
Or press the ON/OFF key for 3 seconds to power off the pump.
Press the RUN/STOP key to acknowledge the condition and silence the
audio alert. Press the ON/OFF key for 3 seconds to power off the pump.
Press the RUN/STOP key to acknowledge the condition and silence the
audio alert. The pump will return to the programming screen. Enter a
valid infusion parameter value and start the infusion as applicable.
Press the RUN/STOP key for 3 seconds to pause the infusion.
Press the ON/OFF key for 3 seconds to power off pump.
Replace the battery following the instructions provided in the user manual.
The pump will remain in standby mode until the new hour or interval is
reached before resuming the infusion.
To change a maximum volume limit value, hold the RUN/STOP key for 3
seconds to pause the Current Rx. Press the INFO key. Highlight Titration
then press ENTER. Scroll down to highlight the desired parameter. Press
ENTER to move into change mode. Unlock the prescription. Enter a new
parameter value. Press ENTER to confirm. Press the RUN/STOP key to
activate the change and resume the Current Rx.
Quick Reference Guide for Clinicians

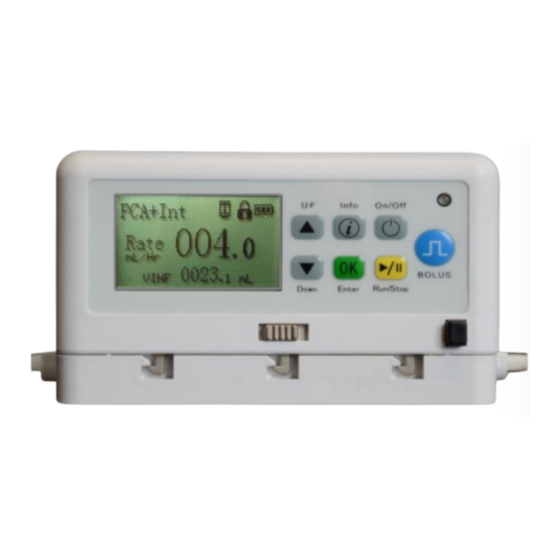

Nimbus™ II PainPRO Ambulatory Infusion Pump
This guide is intended to function as a limited quick
reference only after reading the entire Clinician
IFU
Manual. This guide is not intended for patient use.
InfuTronix, LLC
177 Pine Street
Natick, MA 01760
24/7 Clinical Support:
Phone: 844-479-8500
Email: info@InfuTronix.com
www.InfuTronix.com
520-QR-IT1051, Rev. A
