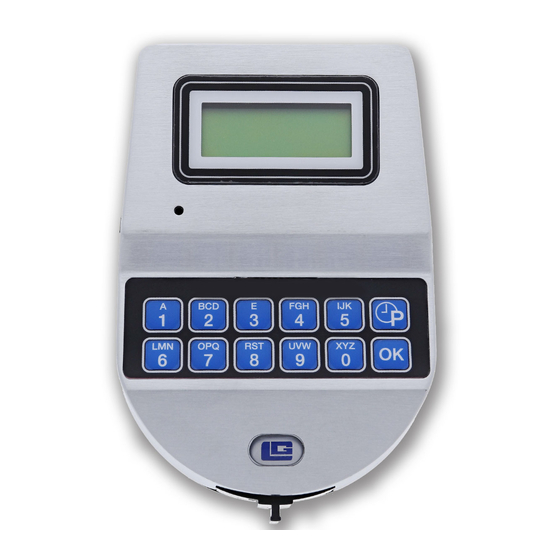

La Gard SMARTPOINT Operating Instructions Manual

SMARTPOINT/SMARTLINC II
This system is available with or without biometric identification ability. If using the SMARTLINC II, without biometric feature, please
disregard any reference, in these instructions, to fingerprints. The functionality of the two systems are identical except for the use of
fingerprints for identification.
MANAGER MODE TABLE OF CONTENTS
1.0 Change Own Code ............................................................Page 2
2.0 Opening Lock ....................................................................Page 2
2.1 Finger Only Access ........................................................Page 2
2.2 Without Time Delay ........................................................Page 2
2.3 With Time Delay ...........................................................Page 3
2.4 With Dual Code, No Time Delay ...... ..............................Page 3
2.5 With Dual Code and Time Delay ....................................Page 3
3.0 Manager Menu ............................................... ...................Page 4
3.1 Manager Menu Access .................... ..............................Page 4
3.2 Time and Date ................................. ..............................Page 4
3.3 View Audit ........................................ ..............................Page 4
3.5 PC Link ............................................ ..............................Page 4
3.5 System Setup .................................. ..............................Page 5
3.5.1 Assign Lock .............................................................Page 5
3.5.2 System Oper. Mode ........ ........................................Page 5
3.5.3 Access Limit ............................................................Page 5
3.5.4 System Information ....... ..........................................Page 6
3.6 Users ..............................................................................Page 6
3.6.1 Add User ................... ..............................................Page 6
3.6.2 Delete User ..............................................................Page 7
3.6.3 Disable User ............................................................Page 7
3.6.4 Enable User .............................................................Page 7
3.6.5 Access Lock ............................................................Page 7
3.6.6 Add/Remove Manager .. ..........................................Page 8
3.6.7 Add/Remove TDO......... ...........................................Page 8
3.6.8 Re-enroll ..................................................................Page 8
3.6.9 Set Duress ...............................................................Page 9
3.7 Time Delay ..................................... ................................Page 9
3.8 Open Offset .................................... ...............................Page 9
4.0 Audit Functions ............................................. ....................Page 9
4.1 Audit Lock Via Logic Module .........................................Page 9
4.2 Logic Module Audit ........................................................Page 10
5.0 Time Menu .........................................................................Page 10
5.1 Immediate Lock .............................. ...............................Page 10
5.2 Open Extension ............................. ................................Page 10
6.0 Battery Changing Procedure ....................... ......................Page 11
Viewable Audit Codes ......................................... .......................Page 11
© copyright 2008 (P/N)703.087 v1 • 8/08
Biometric Recognition Safe Locking System
manager operating inStrUCtionS
AVAILABLE FEATURES
MANAGER CODE
• Change Own Code
• Access to Manager Menu
• Set Time and Date
• Download or View Audit
• Assign Locks
• Set System Operation Mode (Code, Fingerprint, etc.)
• Set User Code Access Limit
• Add/Delete Users and Enroll Fingerprint
• Set Time Delay and Open Offset
MULTIPLE LOCKS
• Up to Five
TIME DELAY
• Programmable on each lock
• Delay Period: 0 - 99 minutes
• Open Period: 1 - 19 minutes
• Two Time Delays (on different locks) Can Run At Once
TIME DELAY OVERRIDE
• Ability to override time delay
• User(s) selected at time of setup
SILENT SIGNAL ALARM (Optional Alarm Box Required)
• Programmable on each lock
• Requires external alarm system connection. See alarm supplier for
system instructions
• Duress signal if last number of code(s) is entered using one number
higher or one number lower.
REMOTE DISABLE (Optional Alarm Box Required,)
• Programmable on each lock
• Requires external alarm system connection. See alarm supplier for
system instructions
AUDIT
• Each lock will record last 4000 events. Logic Module can scroll last
1000 system events (all locks and users)
DUAL CODE
• Requires the presence of two users to open.
WRONG TRY PENALTY
• Four (4) consecutive invalid codes initiates five-minute delay period.
Two additional invalid codes will begin another five-minute delay.
LOW BATTERY WARNING
• Repeated audio and visual signal (LCD readout and repeated
beeping) during opening indicates back-up battery is low and should
be replaced.
AUDIO AND VISUAL SIGNAL
• Double signal (LCD readout and unit beeps) indicates entry is valid
or accepted
• Triple signal indicates invalid or not accepted
TIME LOCK
• Two Time Lock periods are available for set-up
• Selectable for each lock - Time Lock 1, 2 or None
• Standard Week (Up to 4 open periods per day)
• Special Events (Up to 20 close periods programmable by day and
month) [i.e., January 1, July 4]
• Immediate Time Lock (From now until next available open period)
• Time Lock Open Period Extension (Max. two [2] hours), if enabled.
Kaba Mas LLC
page 1 of 11
