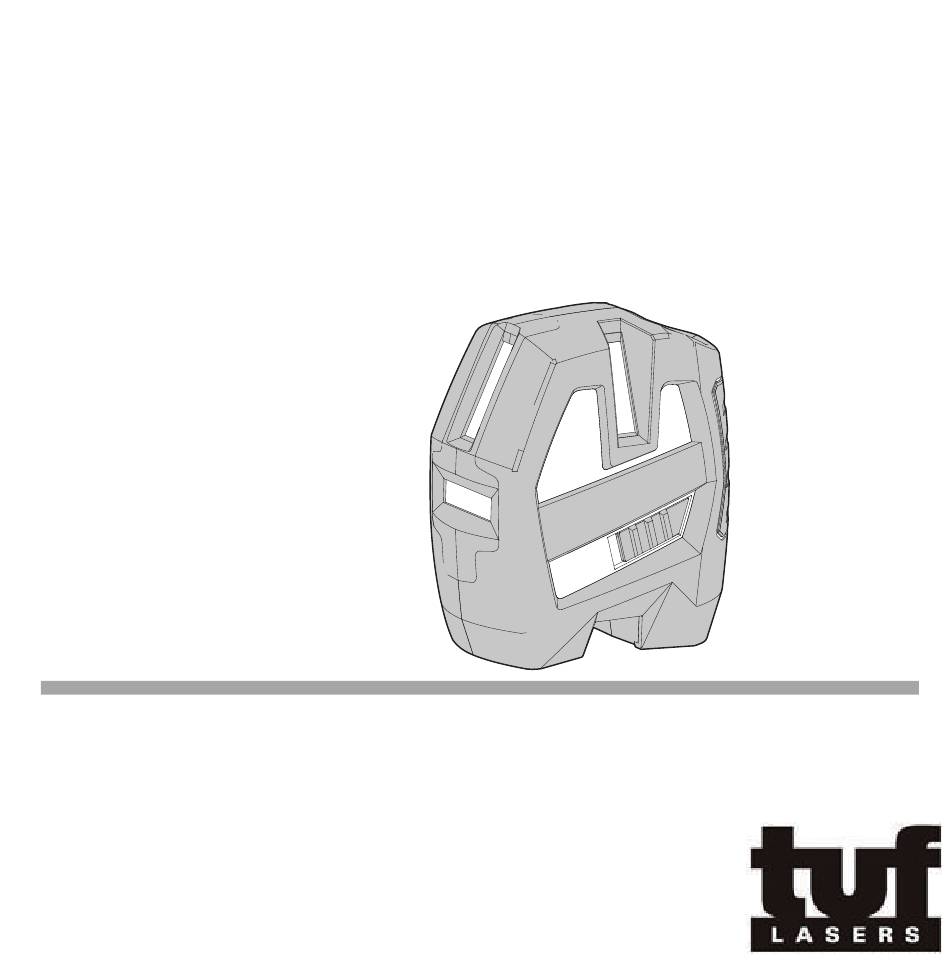

- Page 1 Operating Manual TUF 1.2 XL...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Safety Instructions………………………………………………………..……Page 2-3 Description………………………………..…………………………..………….Page 4-6 Operation………………………………..………………………………..………Page 6-9 Application………………………………..…………………..….….……………Page 10-11 Maintenance……………………………..……….…….…………………..…..Page 12 Troubleshooting…………………………………..…………………….……..…Page 13 SAFETY INSTRUCTIONS WARNING: BE SURE to read and understand all instructions in this manual before using this level. Failure to follow all instructions may result in hazardous radiation exposure, electric shock, fire and/or serious personal injury. - Page 3 • Do not place the tool in a position that may cause anyone to stare at the laser beam, whether intentionally or unintentionally. • Do not use on surfaces such as sheet steel that have shiny, reflective surfaces. The reflective surface could reflect the beam back at the operator. •...
-
Page 4: Description
DESCRIPTION This Auto Leveling Laser Level has a compact design. The small size makes it easy to bring with you. The integrated rubber ensures a comfortable grip and can protect the level from damage when suffering an accidental impact. The projected laser lines are leveled automatically. The Auto Leveling Laser Level is equipped with a safety feature that locks the laser unit when it is switched off and protects it from damage. - Page 5 1) ON/OFF switch: turn on/off the tool, lock/unlock the pendulum. 2) Function panel: switch the working modes and indicate the working status. 3) Laser light aperture: the side vertical laser is projected from this aperture. 4) Laser light aperture: the front vertical laser is projected from this aperture. 5) Laser light aperture: the front horizontal laser is projected from this aperture.
-
Page 6: Operation
SPECIFICATION Model No. 1.2 XL Working range to approx. 20m * Accuracy ±0.3mm/m Working range ±4° Laser type 635(laser line) /650nm (laser dot), P<2mW Laser class Class 2 Working temperature -5°C – 50°C Storage temperature -20°C – 70°C Tripod nut 1/4”... - Page 7 in one hour approximately from the LED indicator starts to blink. Shutting off the laser line not used can extent the battery life. • Remove the batteries when the tool is not used for a period of time. • Do not mix old and new batteries. •...
- Page 8 To choose a projection mode, press the Mode button: 1. Once to select the front horizontal and vertical laser lines. 2. Two times to select the front horizontal laser line. 3. Three times to select the front vertical laser line. 4.
- Page 9 of continuous signals, so the brightness of the laser lines seems a little darker than in the indoor measurement mode in visual. It has no affection to the measurement, in outdoor measurement the tool should be used with laser receiver (not included).
-
Page 10: Application
APPLICATION This Auto Leveling Laser Level is easy to use for a variety of applications, it is ideal for the following applications: • Laying tile and flooring • Installing closets • Installing a drop ceiling • Framing doors and windows •... - Page 11 MAINTENANCE Installing cabinet Room partitioning...
-
Page 12: Maintenance
MAINTENANCE This Auto Leveling Laser Level has been designed as a low-maintenance tool. However, in order to maintain its performance, ALWAYS be sure to follow these simple directions:. • ALWAYS handle the tool with care. Treat it as a precision optical device, such as a camera or binoculars. -
Page 13: Troubleshooting
TROUBLESHOOTING Problem Cause Solution Reinstall the batteries according to Batteries are installed the polarity indicators in the battery incorrectly compartment Batteries are low voltage Replace with new batteries The laser cannot be turned The ON/OFF button is not Slide the button once again pushed to the position The tool is out of operating Make sure the operating temperature...
