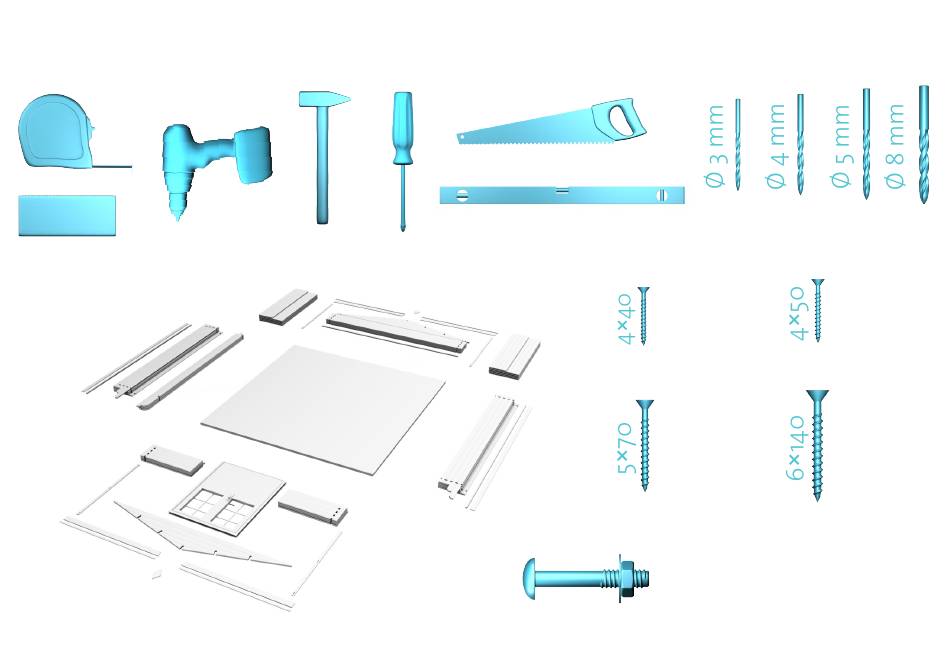

- Page 1 OSTO DRESDEN 34 PREPARE THE GROUND, UNWRAP THE All manuals and user guides at all-guides.com PACKAGE, LAY OUT THE COMPONENTS, FIND THE TOOLS. × 350 × 100 × 10 × 25 M8×70 × 12 1/17...
- Page 2 OSTO DRESDEN 34 LAY OUT THE BOTTOM LOGS All manuals and user guides at all-guides.com SQUARE IT BY MEASURING AB=CD FROM CORNER TO CORNER. 0° 1 BL-1 A LG-1 MAKE SURE THAT THE BOTTOM LOGS ARE INSTALLED ON A LEVEL SURFACE.
- Page 3 OSTO DRESDEN 34 ATTACH THE LOGS All manuals and user guides at all-guides.com WITH SCREWS. × 4 3/17...
- Page 4 OSTO DRESDEN 34 ATTACH THE FIRST ROW OF All manuals and user guides at all-guides.com WALL LOGS INTO THE BOTTOM LOGS WITH SCREWS. × 4 × 5 1 LG-5 6×140 5×70 2 LG-2 2 LG-2 4/17...
- Page 5 OSTO DRESDEN 34 AFTER PLACING 3-4 ROWS OF WALL LOGS, TAP All manuals and user guides at all-guides.com EACH WALL LOG IN PLACE USING A HAMMER AND THE HITBLOCK PROVIDED, TO TIGHTEN THE LOGS. HITBLOCK 5/17...
- Page 6 OSTO DRESDEN 34 SLIDE THE DOOR IN, All manuals and user guides at all-guides.com ATTACH THE HANDLE. B34DD1 LOGS IN PLACE 6/17...
- Page 7 OSTO DRESDEN 34 DON`T FORGET TO All manuals and user guides at all-guides.com TIGHTEN THE LOGS AFTER EVERY 3-4 ROWS. HITBLOCK 7/17...
- Page 8 OSTO DRESDEN 34 INSTALL THE GABLES WITH LONG SCREWS All manuals and user guides at all-guides.com TO THE WALL LOGS ON THE FRONT AND REAR WALLS. × 4 GABLE A TL-1 B TL-1 B LG-2 A LG-2 8/17...
- Page 9 OSTO DRESDEN 34 INSTALL THE ROOF PURLINS AND All manuals and user guides at all-guides.com ATTACH THEM WITH SCREWS. × 10 9/17...
- Page 10 OSTO DRESDEN 34 PLACE THE FIRST ROOFBOARD FLUSH WITH All manuals and user guides at all-guides.com OF THE PURLINS AND ATTACH WITH 8 SCREWS, 4 INTO EACH NEXT. × 336 10/17...
- Page 11 OSTO DRESDEN 34 FOR THE FASCIA TRIMS All manuals and user guides at all-guides.com INSERT SCREWS AFTER EVERY 0,5 METERS. × 40 11/17...
- Page 12 OSTO DRESDEN 34 EAVES EDGES GO ON TOP All manuals and user guides at all-guides.com OF THE ROOFING*. *(NOT INCLUDED) × 40 12/17...
- Page 13 OSTO DRESDEN 34 ATTACH ROMB WITH SCREWS. All manuals and user guides at all-guides.com ROMB × 4 13/17...
- Page 14 OSTO DRESDEN 34 DRILL THROUGH THE WALL, HOLE All manuals and user guides at all-guides.com MUST BE AT THE BOTTOM OF THE OVAL, 20CM ATTACH WITH BOLT. × 12 WINDBOARD 14/17...
- Page 15 OSTO DRESDEN 34 IF DOOR IS TILTED, All manuals and user guides at all-guides.com PUSH THE DOOR FRAME SO THAT ALL CORNERS ARE 90º. 90º 90º 15/17...
- Page 16 OSTO DRESDEN 34 DOORS ARE IN DIFFERENT HEIGHTS All manuals and user guides at all-guides.com OR THERE IS A GAP BETWEEN THEM, ADJUST 3 SCREWS ON DOOR HINGES. 16/17...
- Page 17 OSTO DRESDEN 34 WHEN THE HOUSE IS ASSEMBLED, YOU SHOULD All manuals and user guides at all-guides.com COVER THE TIMBER WITH WOOD PROTECTIVE SEAL, PAINT OR STAIN AS SOON AS POSSIBLE TO AVOID DETERIORATION TO THE WOOD. 17/17 100%...
