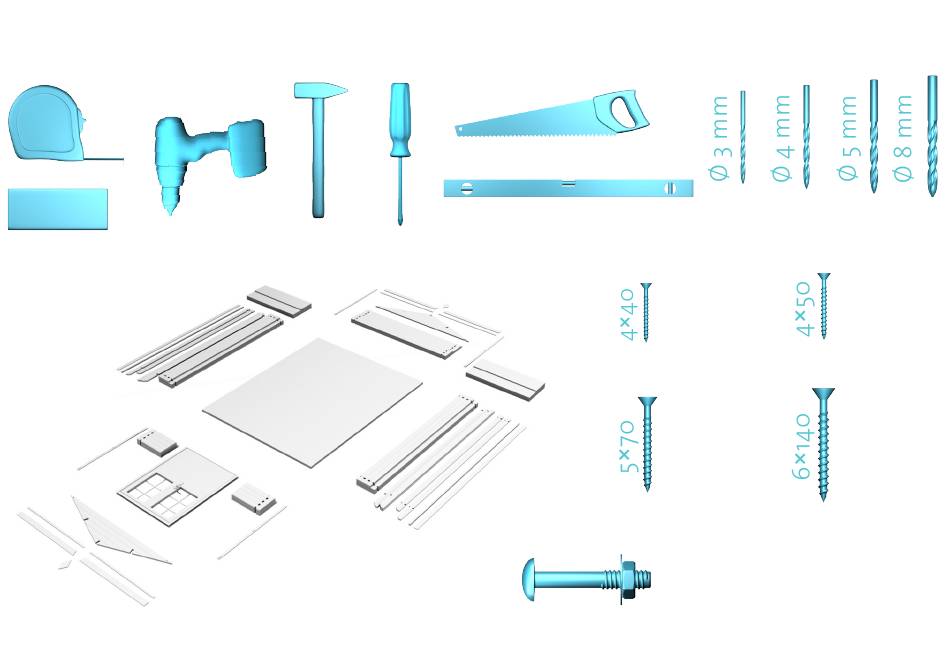

- Page 1 OSTO LEIPZIG 34 PREPARE THE GROUND, UNWRAP THE PACKAGE, LAY OUT THE COMPONENTS, FIND THE TOOLS. × 270 × 90 × 15 × 15 M8×70 × 12 1/17...
- Page 2 OSTO LEIPZIG 34 LAY OUT THE BOTTOM LOGS AB=CD SQUARE IT BY MEASURING FROM CORNER TO CORNER. 0° 1 BL-1 A LG-1 B LG-1 MAKE SURE THAT THE BOTTOM LOGS ARE INSTALLED ON A LEVEL SURFACE. 2 BL-1 CHECKING ALL DIRECTIONS,...
- Page 3 OSTO LEIPZIG 34 ATTACH THE LOGS WITH SCREWS. × 4 3/17...
- Page 4 OSTO LEIPZIG 34 ATTACH THE FIRST ROW OF WALL LOGS INTO THE BOTTOM LOGS WITH SCREWS. × 4 × 4 1 LG-5 6×140 5×70 2 LG-2 2 LG-2 4/17...
- Page 5 OSTO LEIPZIG 34 AFTER PLACING 3-4 ROWS OF WALL LOGS, TAP EACH WALL LOG IN PLACE USING A HAMMER AND THE HITBLOCK PROVIDED, TO TIGHTEN THE LOGS. HITBLOCK 5/17...
- Page 6 OSTO LEIPZIG 34 SLIDE THE DOOR IN, ATTACH THE HANDLE. B34DD1 LOGS IN PLACE 6/17...
- Page 7 OSTO LEIPZIG 34 DON`T FORGET TO TIGHTEN THE LOGS AFTER EVERY 3-4 ROWS. HITBLOCK 7/17...
- Page 8 OSTO LEIPZIG 34 INSTALL THE GABLES WITH LONG SCREWS TO THE WALL LOGS ON THE FRONT AND REAR WALLS. GABLE × 4 B TL-1 A TL-1 B LG-2 A LG-2 8/17...
- Page 9 OSTO LEIPZIG 34 INSTALL THE ROOF PURLINS AND ROOF ELEMENTS 1, ATTACH THEM WITH SCREWS. × 6 9/17...
- Page 10 OSTO LEIPZIG 34 PLACE THE FIRST ROOFBOARD FLUSH WITH OF THE PURLINS AND ATTACH WITH 6 SCREWS, 3 INTO EACH NEXT. × 246 10/17...
- Page 11 OSTO LEIPZIG 34 FOR THE FASCIA TRIMS INSERT SCREWS AFTER EVERY 0,5 METERS. × 40 11/17...
- Page 12 OSTO LEIPZIG 34 EAVES EDGES GO ON TOP OF THE ROOFING*. *(NOT INCLUDED) × 32 12/17...
- Page 13 OSTO LEIPZIG 34 ATTACH ROMBS WITH SCREWS. ROMB × 4 13/17...
- Page 14 OSTO LEIPZIG 34 DRILL THROUGH THE WALL, HOLE MUST BE AT THE BOTTOM OF THE OVAL, 20CM ATTACH WITH BOLT. × 12 WINDBOARD 14/17...
- Page 15 OSTO LEIPZIG 34 IF DOOR IS TILTED, PUSH THE DOOR FRAME SO THAT ALL CORNERS ARE 90º. 90º 90º 15/17...
- Page 16 OSTO LEIPZIG 34 DOORS ARE IN DIFFERENT HEIGHTS OR THERE IS A GAP BETWEEN THEM, ADJUST 3 SCREWS ON DOOR HINGES. 16/17...
- Page 17 OSTO LEIPZIG 34 WHEN THE HOUSE IS ASSEMBLED, YOU SHOULD COVER THE TIMBER WITH WOOD PROTECTIVE SEAL, PAINT OR STAIN AS SOON AS POSSIBLE TO AVOID DETERIORATION TO THE WOOD. 17/17 100%...
