  • Page 1 Smart Scene Panel Featuring LoRaWAN ® WS136 & WS156 User Guide...
  • Page 2 Safety Precautions Milesight will not shoulder responsibility for any loss or damage resulting from not following the instructions of this operating guide. The device must not be modified in any way.  In order to protect the security of the device, please change device the password when first ...
  • Page 3 V 1.0 Initial version 1. Change insulating sheet place Aug. 1, 2022 V 1.1 2. Change RX2 setting place 1. Add Single-Channel Mode; Jan. 16, 2023 V 1.2 2. Add Milesight D2D LoRa Uplink feature; 3. Add reboot downlink command.

  • Page 4: Table Of Contents

    3. Operation Guide ..........................6 3.1 NFC Configuration ........................6 3.2 LoRaWAN Settings ........................7 3.3 General Settings ........................10 3.4 Milesight D2D Settings ......................10 3.5 E-ink Screen Display Settings ....................11 3.6 Maintenance .......................... 12 3.6.1 Upgrade ........................12 3.6.2 Backup .........................13 3.6.3 Reboot and Reset .......................

  • Page 5: Product Introduction

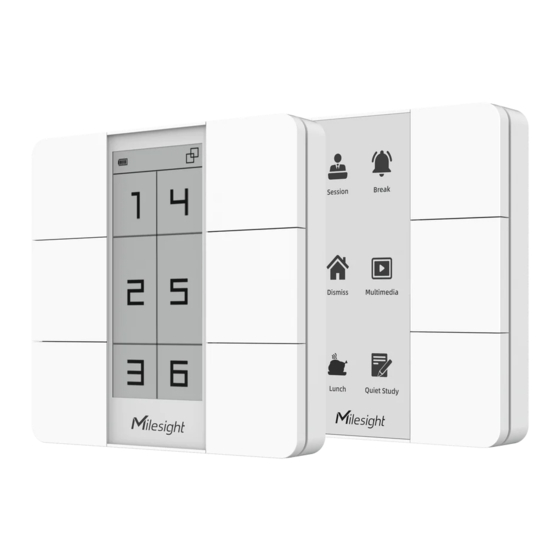

    Without any additional cable, WS136 & WS156 can be easily installed anywhere and control devices via LoRaWAN or Milesight D2D communication protocol. Besides, it’s equipped a user-definable E-ink screen to suit different scenes. WS136 & WS156 can be widely used in smart home, smart office, hotel, school, etc.

  • Page 6: Hardware Overview

    2.2 Hardware Overview Note: For WS136, the E-ink screen is replaced by PVC sticker and the icons on the sticker supports customization. 2.3 Dimensions (mm) 2.4 LED Patterns Indicator Action Indication Always on until the button is Button Light Press the button...

  • Page 7: Lorawan Settings

    2) If the smartphone fails to read/write configurations via NFC, move the phone away and back to try again. 3) WS136 & WS156 can also be configured by ToolBox software via dedicated NFC reader provided by Milesight IoT. 3.2 LoRaWAN Settings Go to Device >...
  • Page 8 Parameters Description Device EUI Unique ID of the device which can also be found on the label. App EUI Default App EUI is 24E124C0002A0001. Application Port The port is used for sending and receiving data, the default port is 85. Join Type OTAA and ABP modes are available.
  • Page 9 If frequency is one of CN470/AU915/US915, enter the index of the channel that you want to enable and make them separated by commas. Examples: 1, 40: Enabling Channel 1 and Channel 40 1-40: Enabling Channel 1 to Channel 40 1-40, 60: Enabling Channel 1 to Channel 40 and Channel 60 All: Enabling all channels Null: Indicates that alll channels are disabled Spread Factor...

  • Page 10: General Settings

    LoRaWAN ® devices around. Go to Device > Settings > D2D Settings to enable Milesight D2D feature, and define an unique Milesight D2D key that is the same as Milesight D2D agent devices. (Default Milesight D2D Key: 5572404C696E6B4C6F52613230313823)

  • Page 11: E-Ink Screen Display Settings

    3. Enable one of WS136 & WS156 button mode and configure a 2-byte hexadecimal command (This command is pre-defined in Milesight D2D agent device). When you press this button, WS136 & WS156 will send the control command to corresponding Milesight D2D agent devices.

  • Page 12: Maintenance

    2) WS156 do a full-screen refresh once a week in order to remove ghosting. 3.6 Maintenance 3.6.1 Upgrade 1. Download firmware from Milesight website to your smartphone. 2. Open ToolBox App and click Browse to import firmware and upgrade the device. Note:...

  • Page 13: Backup

    2) Only Android version ToolBox supports the upgrade feature. 3.6.2 Backup WS136 & WS156 supports configuration backup for easy and quick device configuration in bulk. Backup is allowed only for devices with the same model and LoRaWAN frequency band. ®...

  • Page 14: Reboot And Reset

    Go to Device > Maintenance to tap Restart or Reset, then attach smartphone with NFC area to the device to complete reboot or reset. 4. Installation WS136 & WS156 can be placed on the desktop directly. If it needs to be fixed, please try below installation methods.

  • Page 15: Device Payload

    1 Byte 1 Byte M Bytes 1 Byte For decoder examples you can find them at https://github.com/Milesight-IoT/SensorDecoders. 5.1 Basic Information WS136 & WS156 report basic information of panel whenever joining the network. Channel Type Description 01(Protocol Version) 01=> V1 09 (Hardware Version) 01 40 =>...

  • Page 16: Button Message

    Type Value 0102 (Software (V1.2) version) 5.2 Button Message WS136 & WS156 reports battery level according to reporting interval (1080 mins by default) and button message when button is pressed. Channel Type Description 75(Battery Level) UINT8, Unit: % Byte 1: Button Number...
  • Page 17 Channel Type Value 35 (Set Milesight D2D 12 34 56 78 12 34 56 78 Key) 3. Set Milesight D2D spreading factor as DR5(SF7) and frequency as 505.7 MHz. ff3605a05e241e Channel Type Value 36 (Set Milesight D2D Byte 1: 05 (DR5) Spreading Factor and Byte 2: a0 5e 24 1e =>...
