Mounting Instruction - WisyCom PHA60-D Quick Start Manual

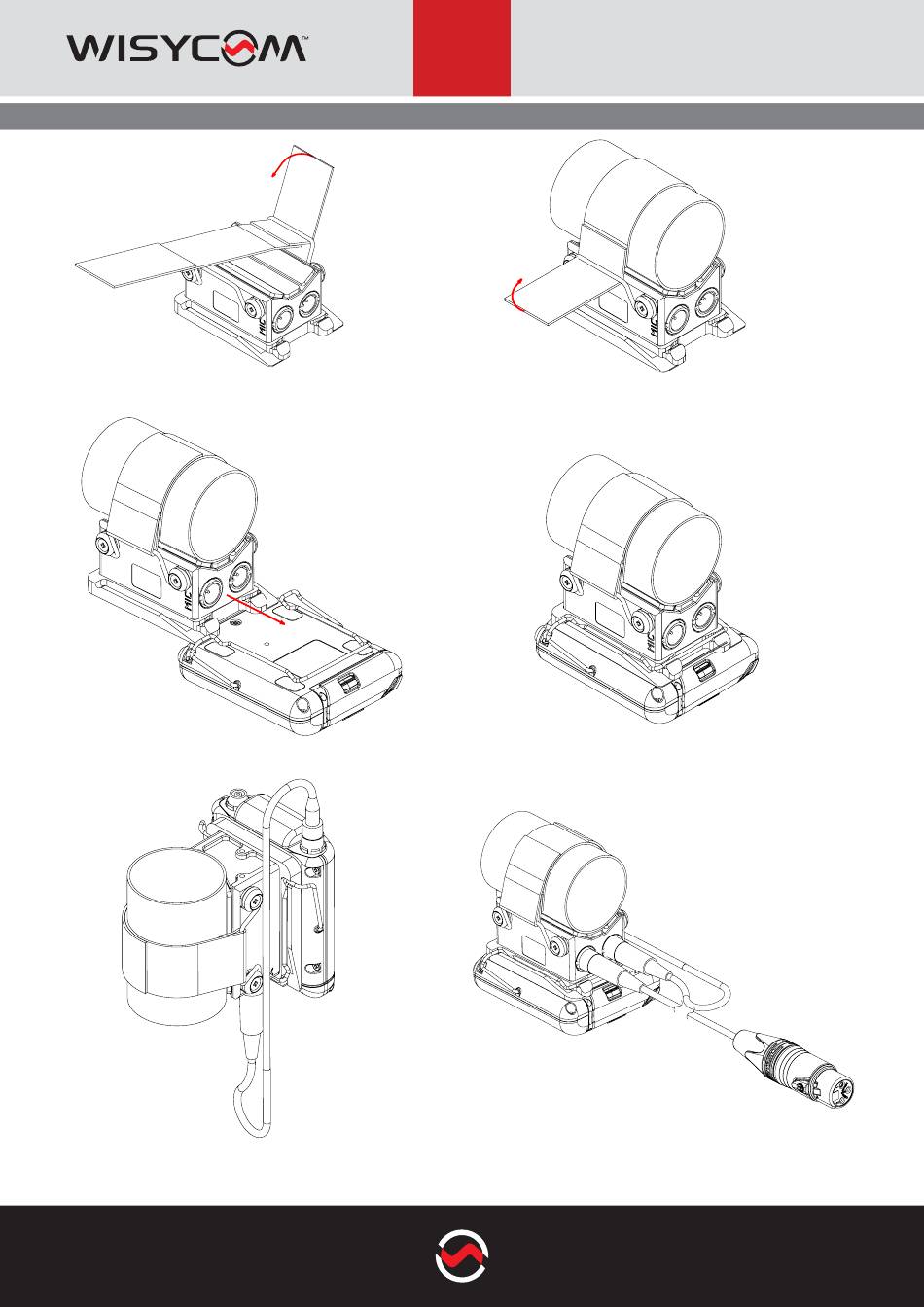

1. insert the felt on the first spring and fix the felt on
one side
3. mount the MTP60 fixing it with the clip as shown in
the figure
5. connect the CAL48S cable from the LEMO con-
nector of the MTP60 to the TX connector (TA5)of the
PHA60
Wisycom Italy
Wisycom Srl - Via Tiepolo, 7/E I-35019 Tombolo (PD) Italy
Tel. +39 0424 382605 - e-mail : sales@wisycom.com
PHA
60-D

MOUNTING INSTRUCTION

ACCESSORIES & RELATED
2. pass the felt around the pole and secure it on the
other end
4. make sure it is stable and pull the felt harder if
necessary
6. connect the audio cable from the MIC connector
(TA3) of PHA60 to the microphone/shotgun
PHANTOM POWER
5228 Eisenhower Avenue - Alexandria, Virginia 22304
Tel. +1 (888) 947-9266 - e-mail : sales@wisycomusa.com
PHA60-D-en-b02 - Subject to change without notice
ADAPTER
Wisycom USA
